System Diagram




Component Connector End Views

A9A Outside Rearview Mirror - Driver

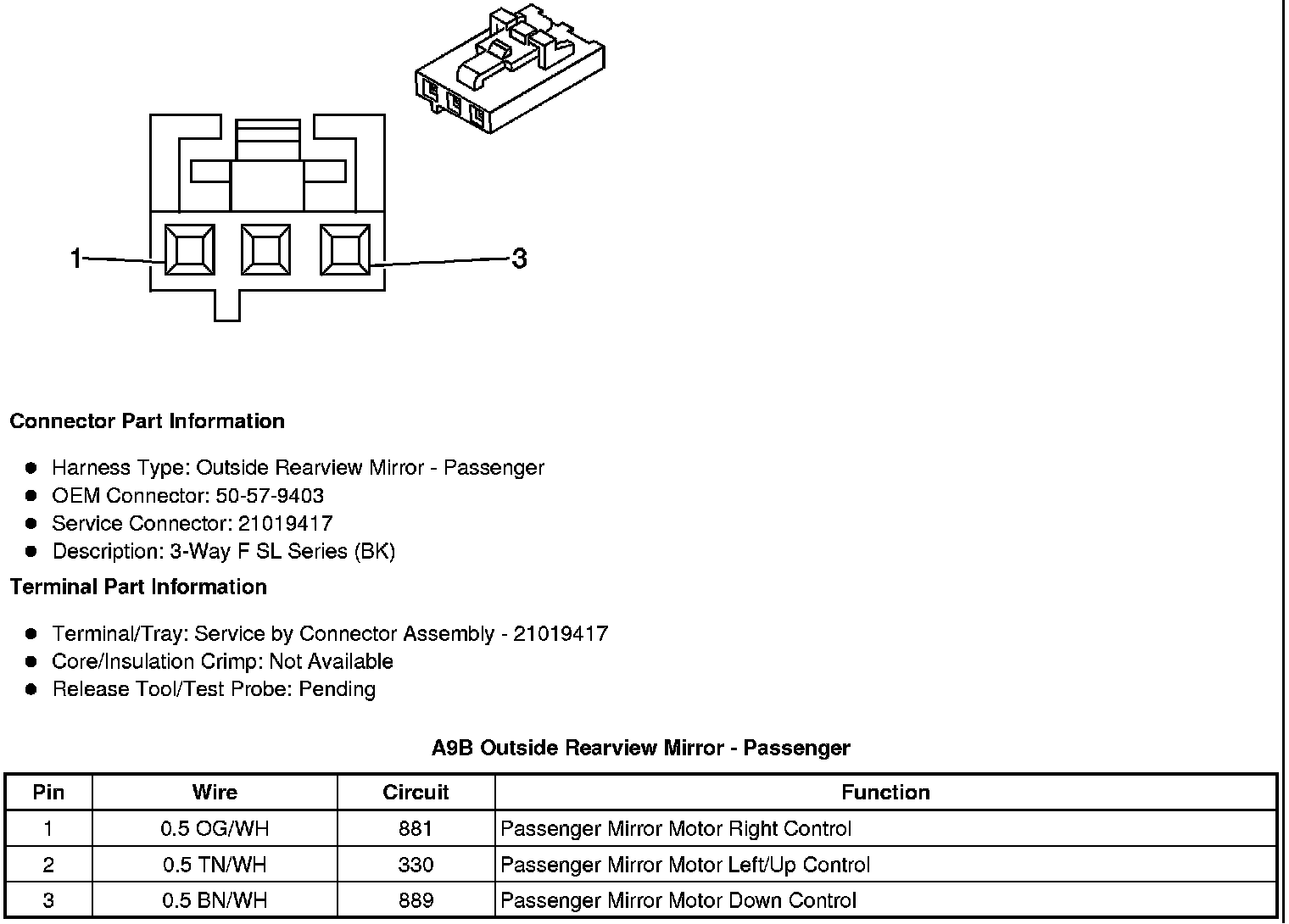

A9B Outside Rearview Mirror - Passenger

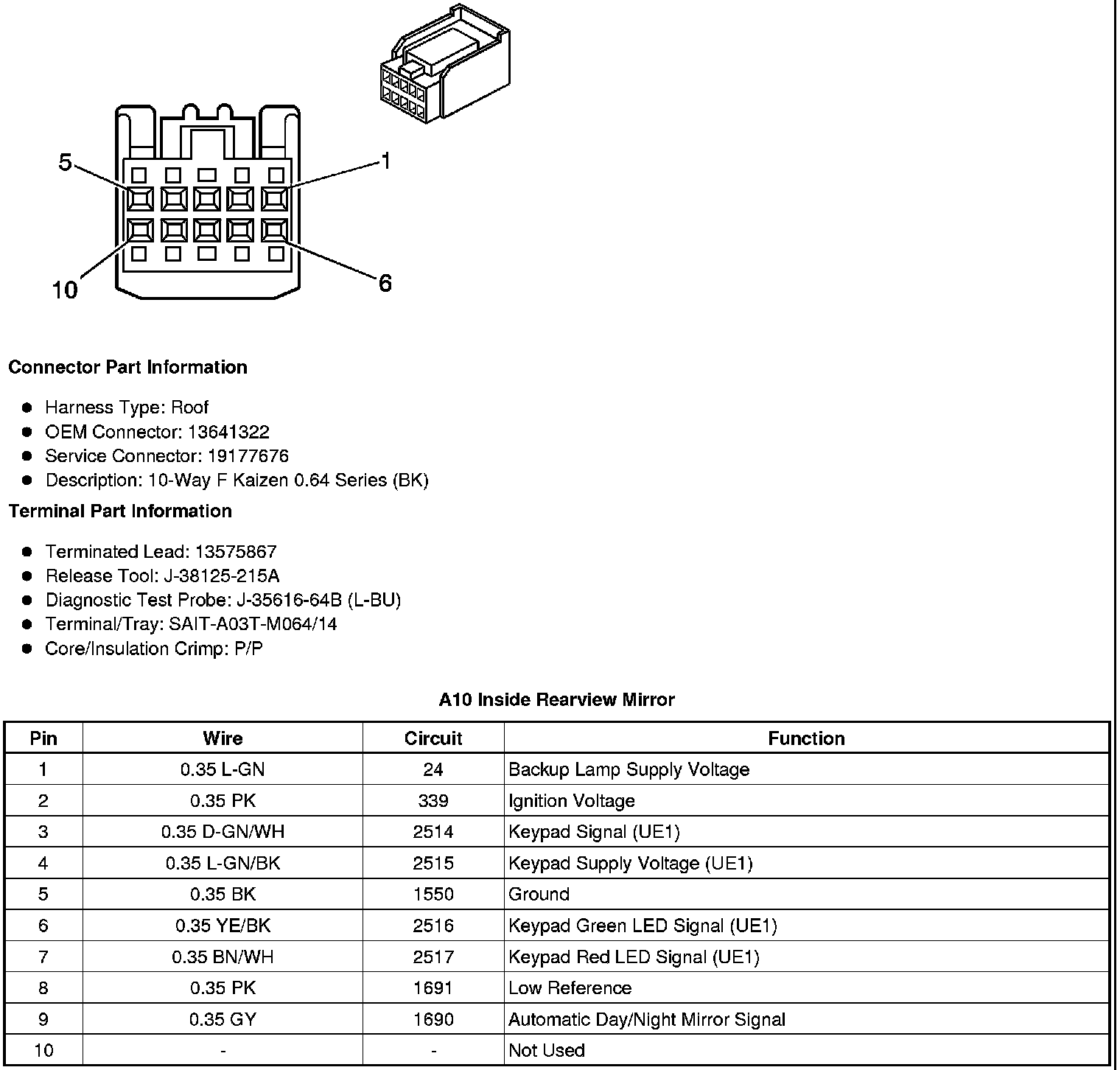

A10 Inside Rearview Mirror
