Oxygen Sensor




Component Connector End Views

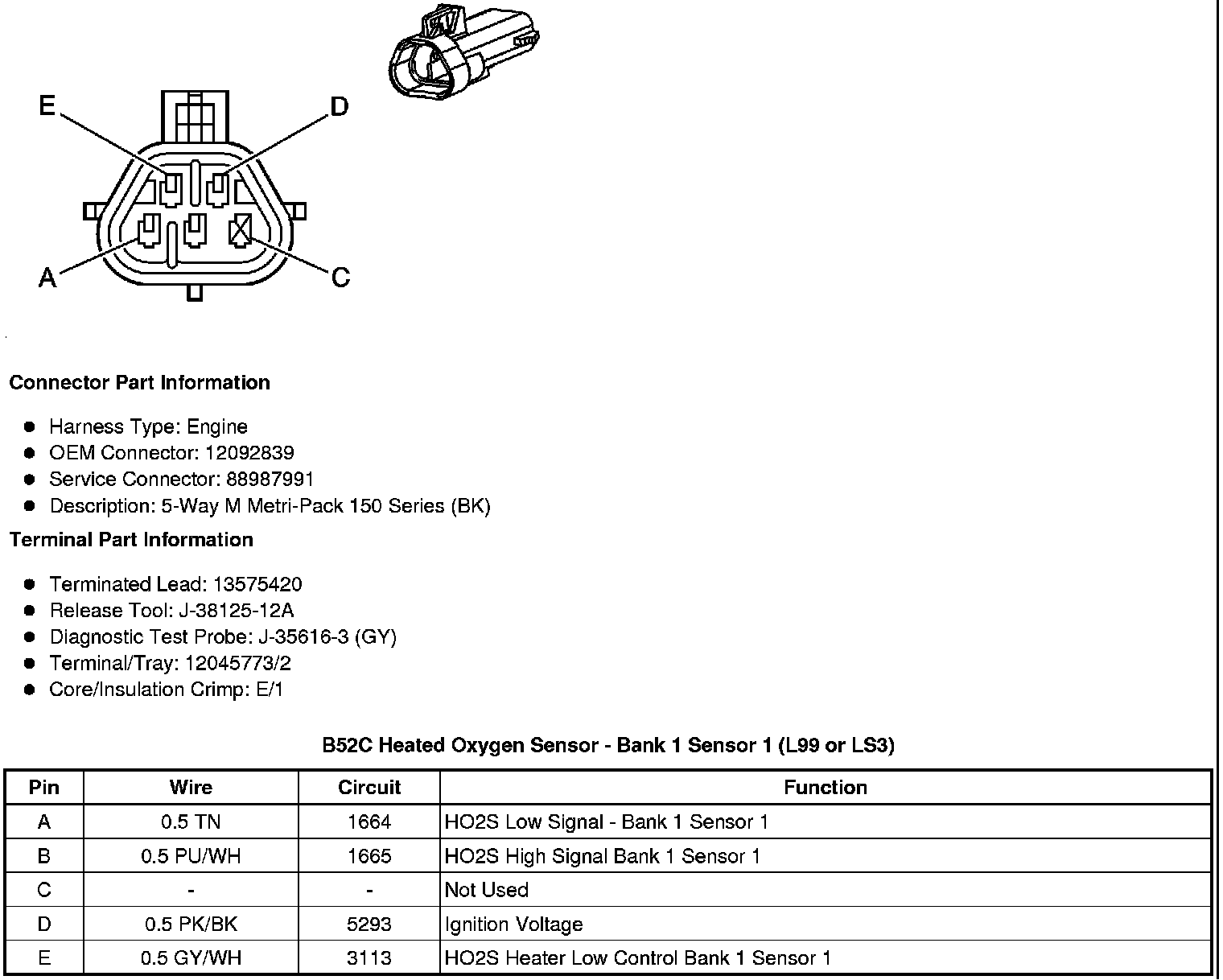

B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (L99 or LS3)





B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LLT)

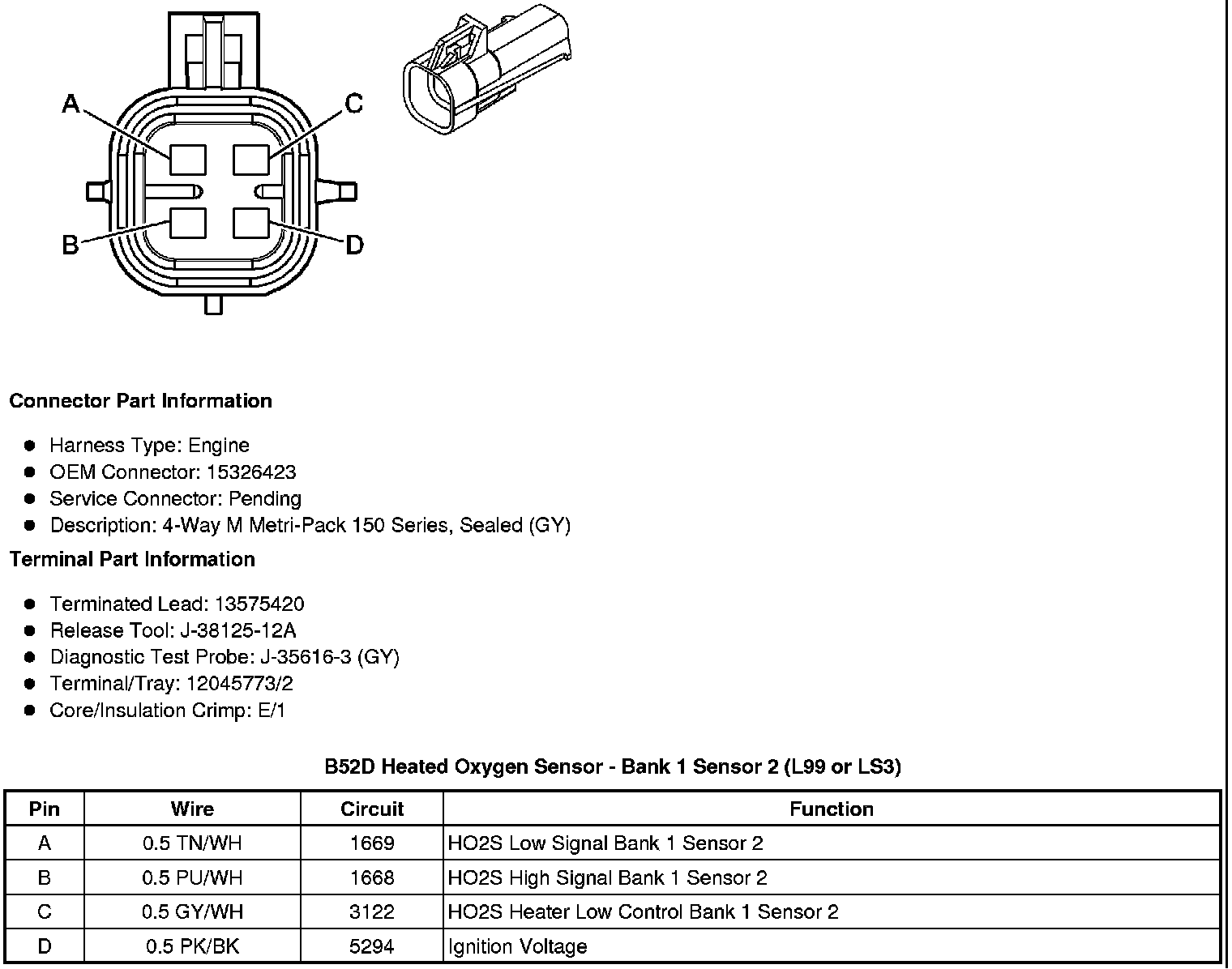

B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (L99 or LS3)

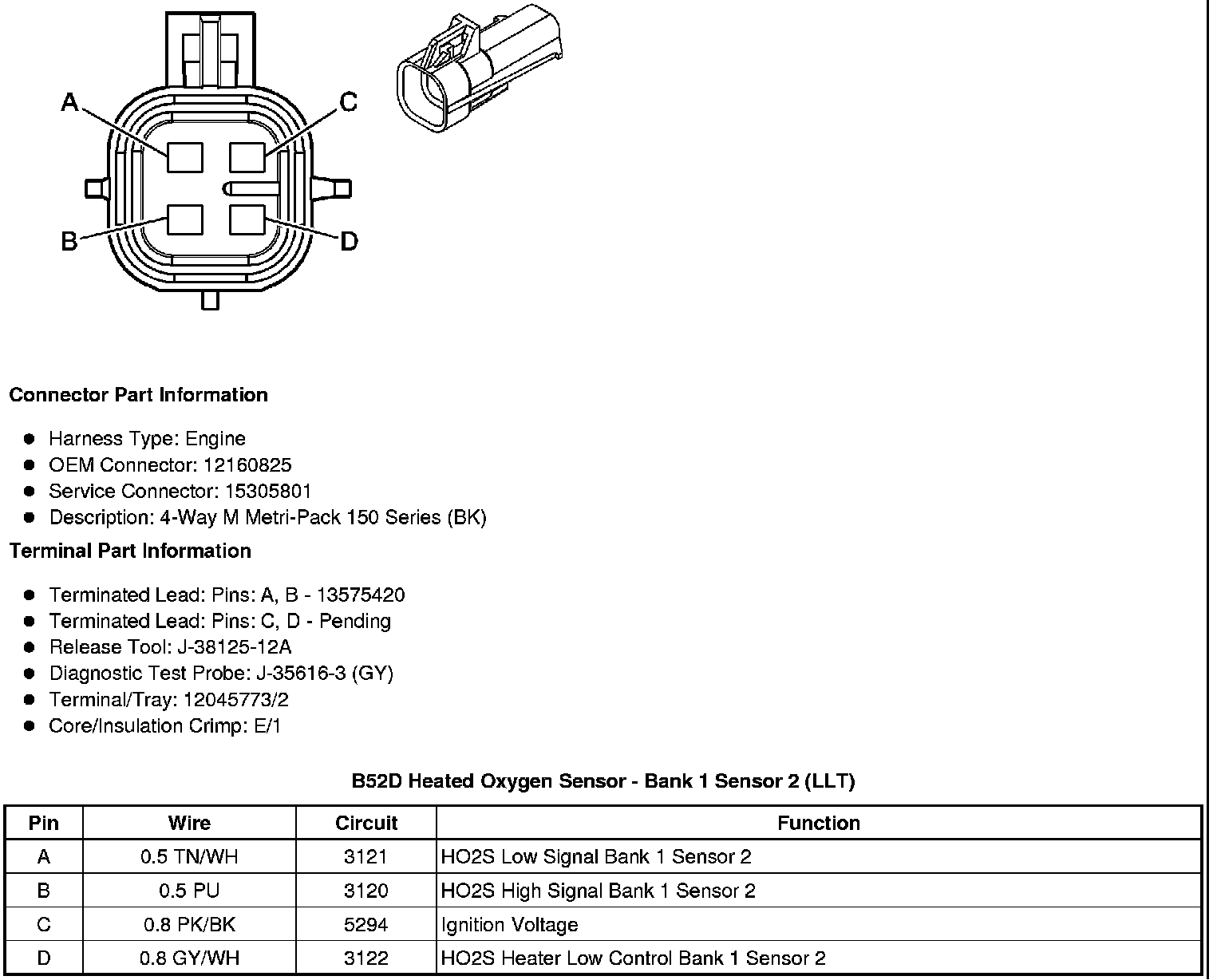

B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LLT)

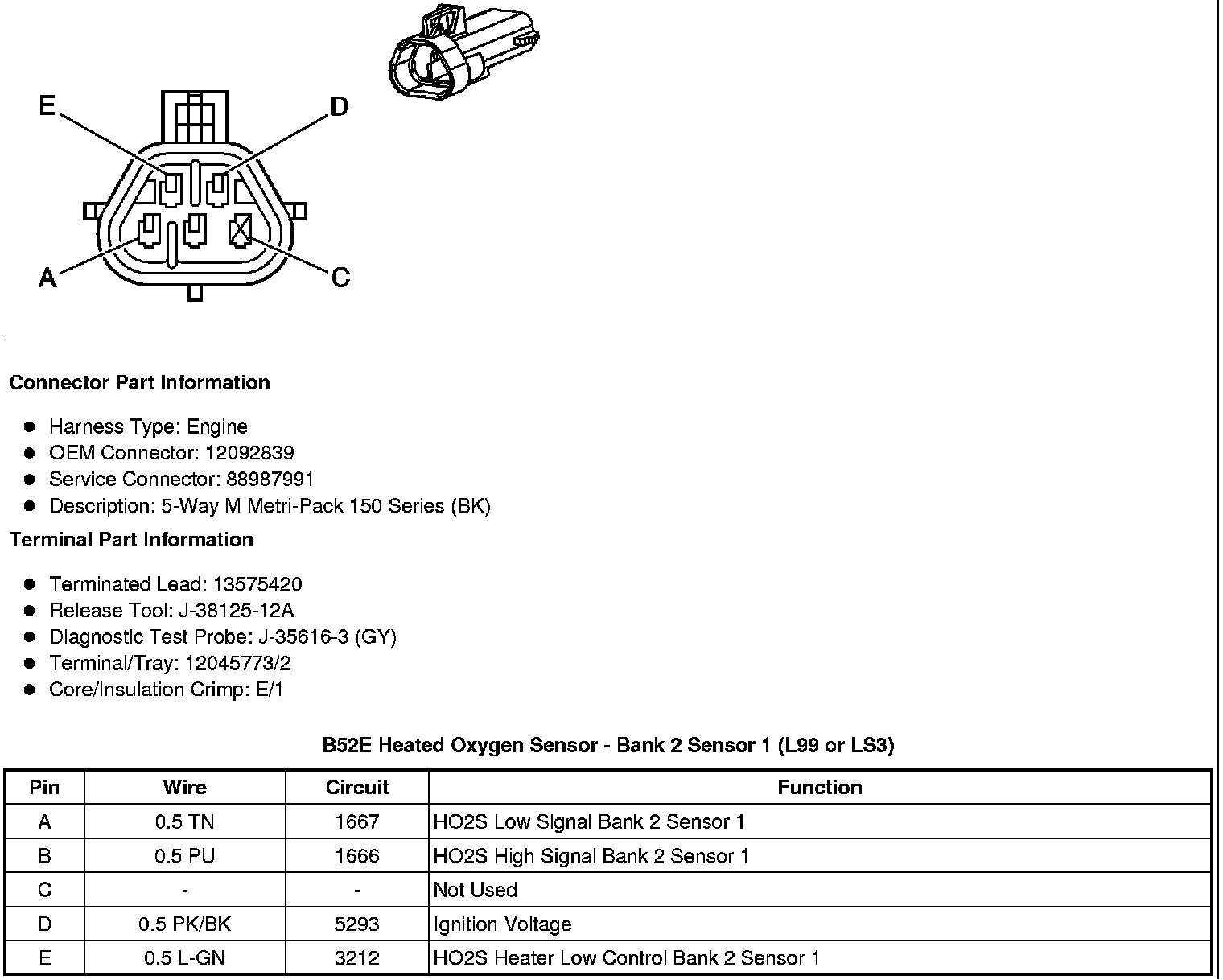

B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (L99 or LS3)

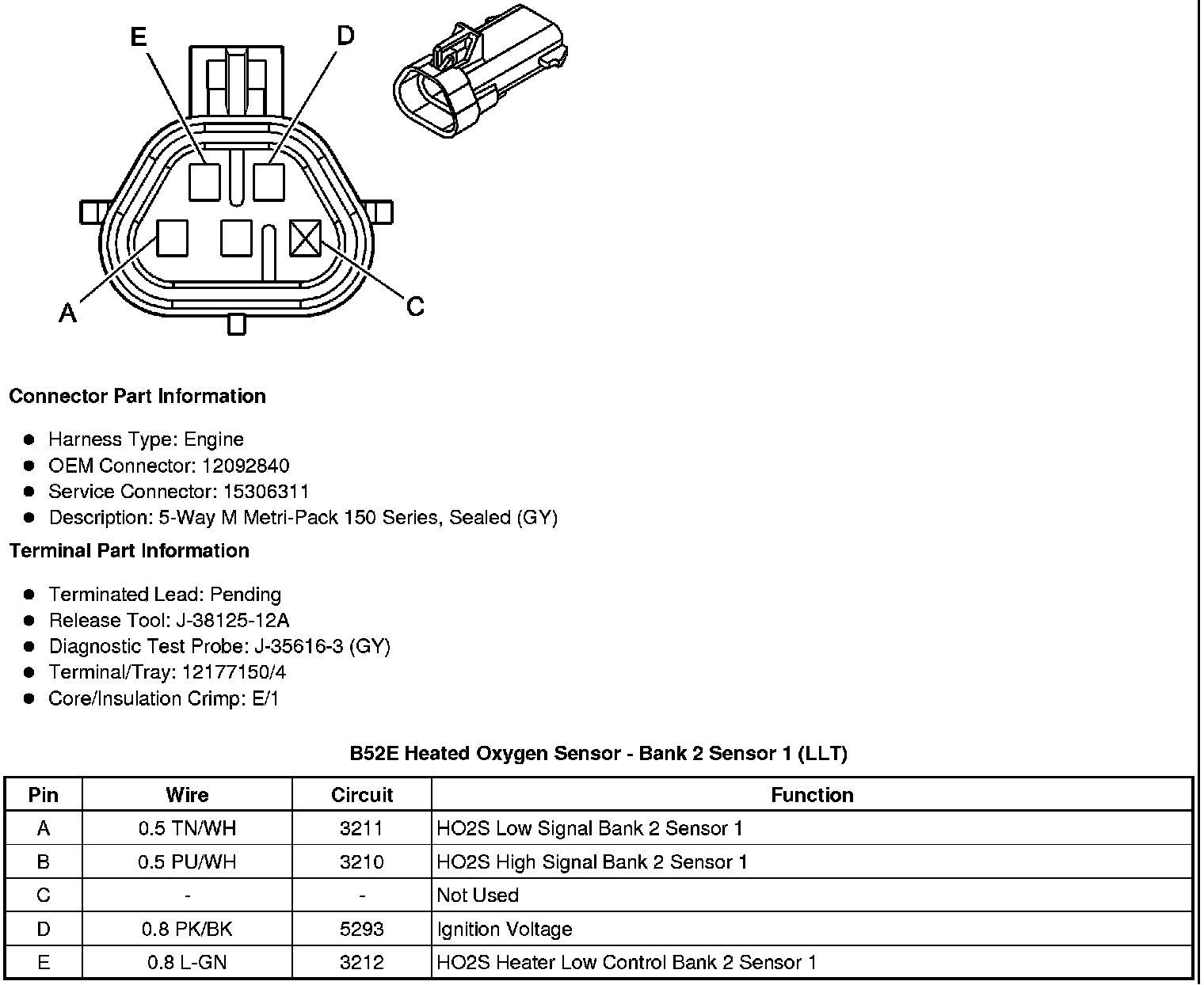

B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LLT)





B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (L99 or LS3)

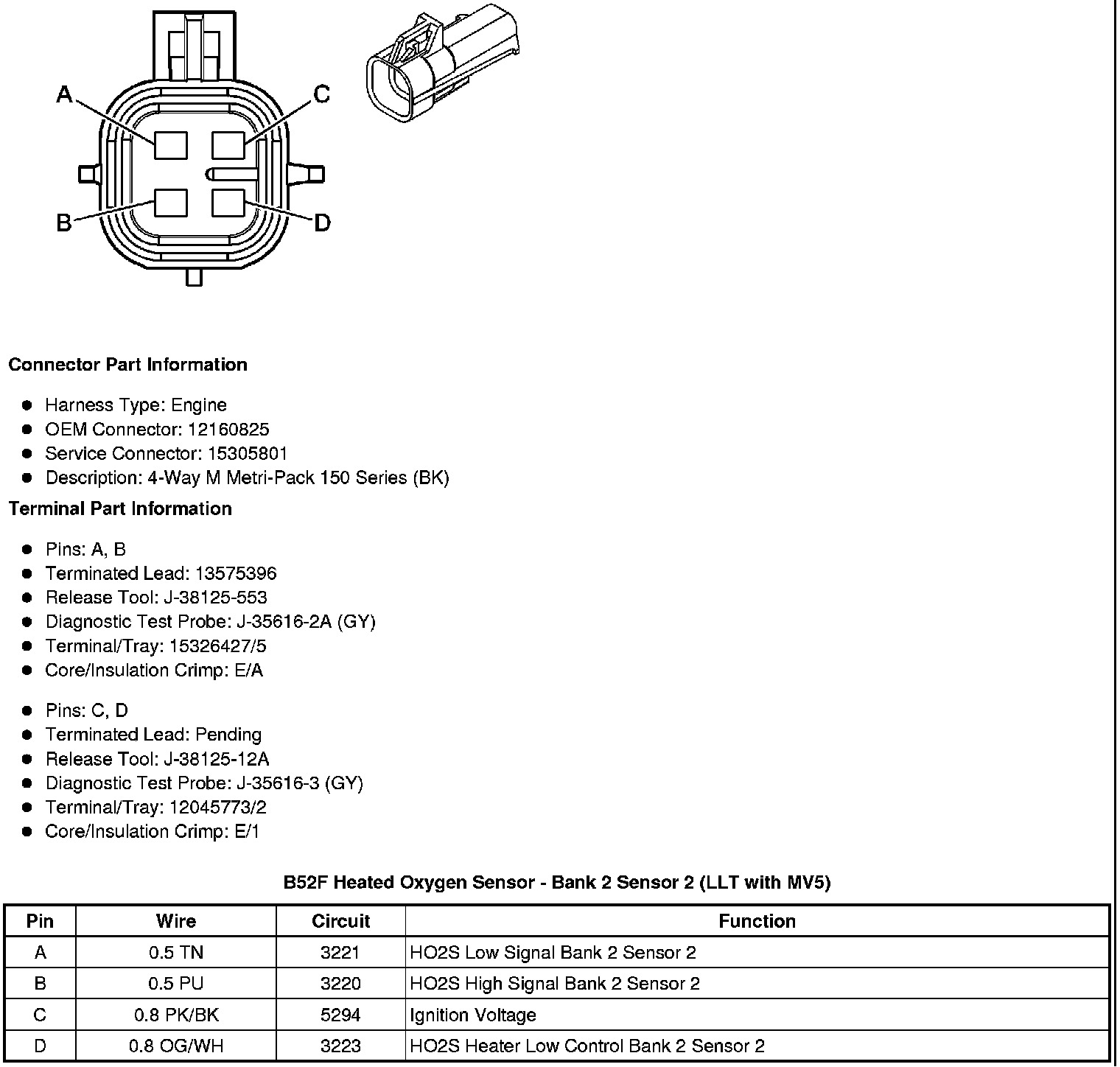

B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LLT with MV5)

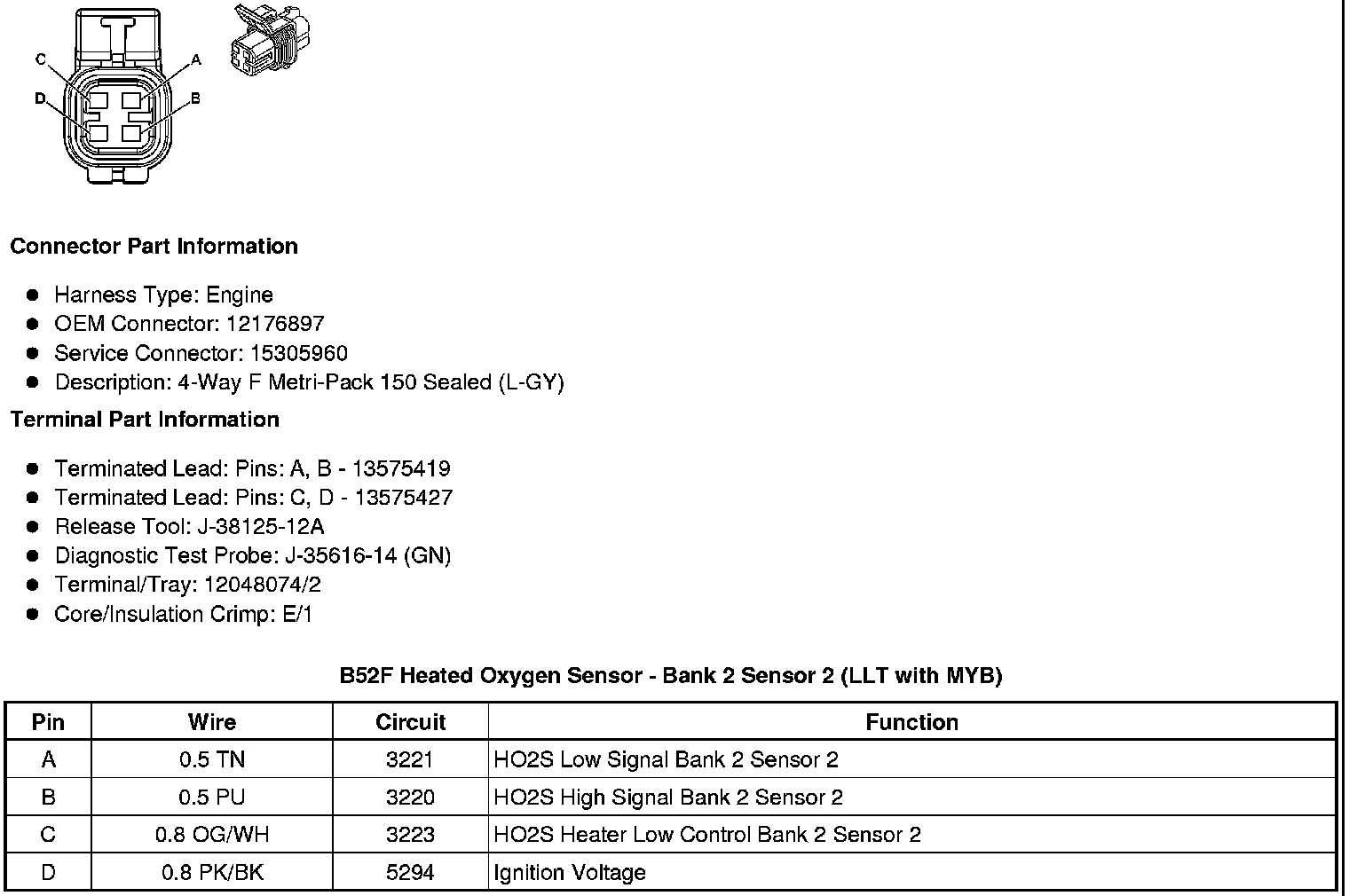

B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LLT with MYB)
