Power Window Switch




Component Connector End Views

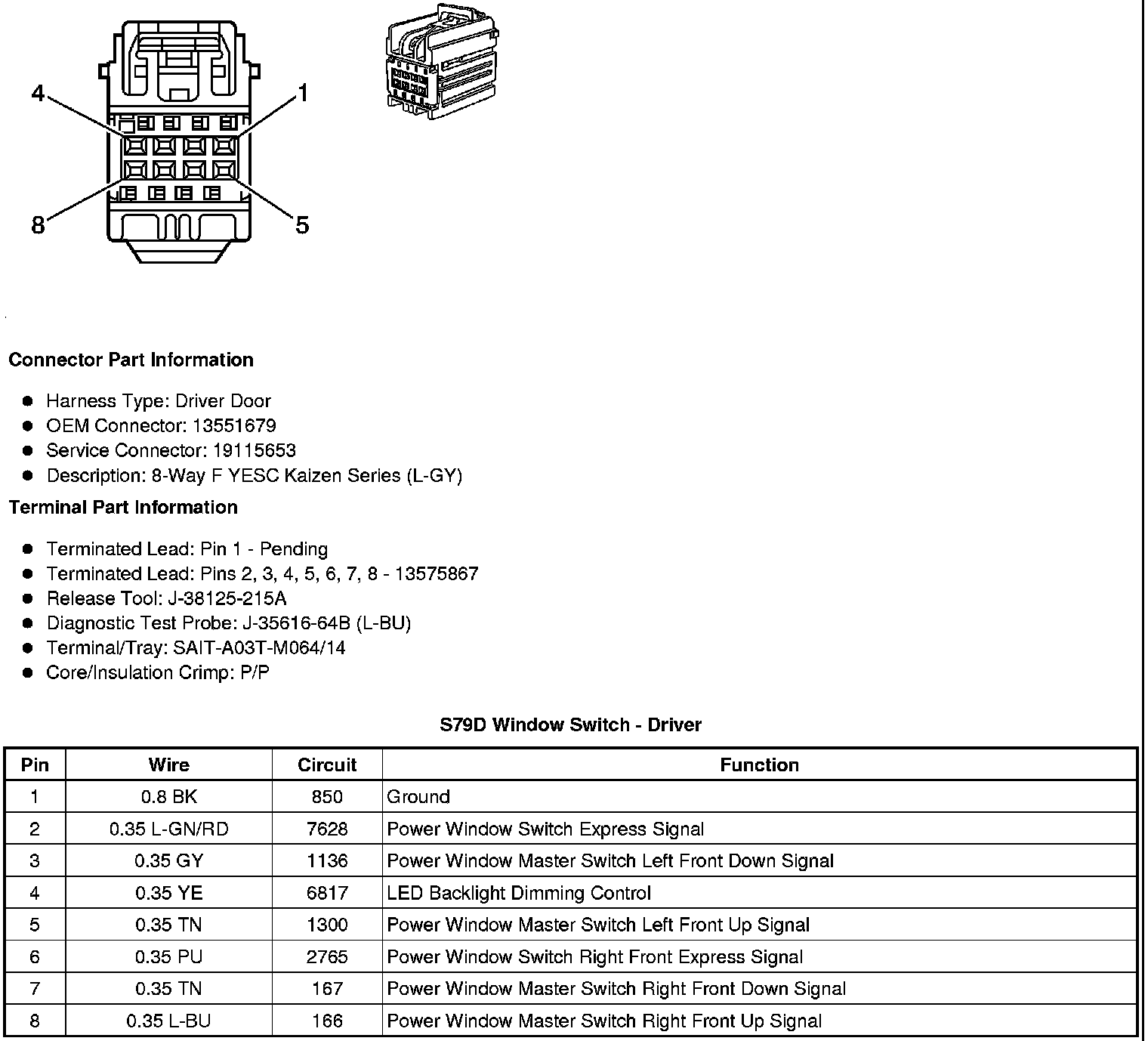

S79D Window Switch - Driver

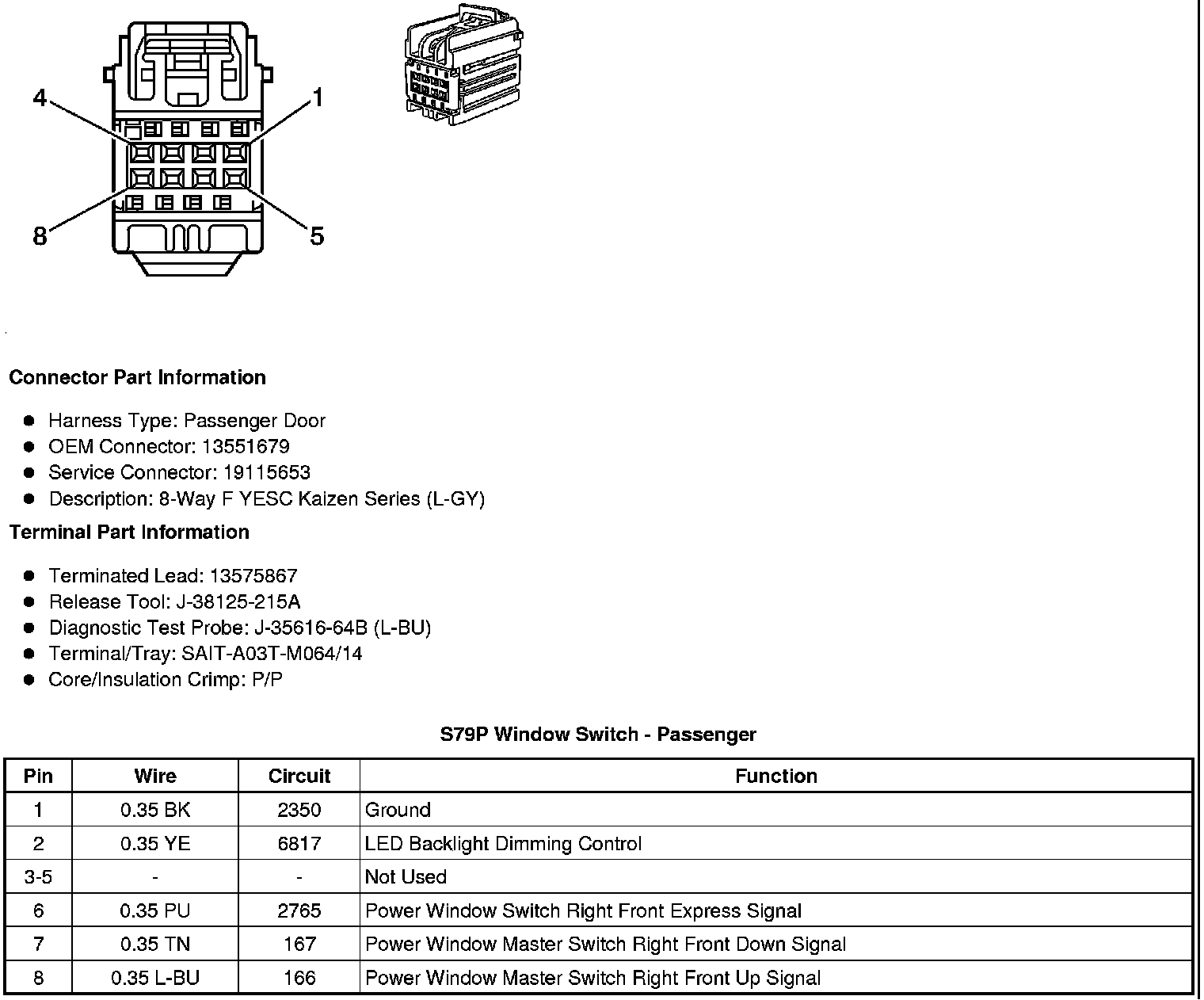

S79P Window Switch - Passenger
