Seat Position Sensor




Component Connector End Views

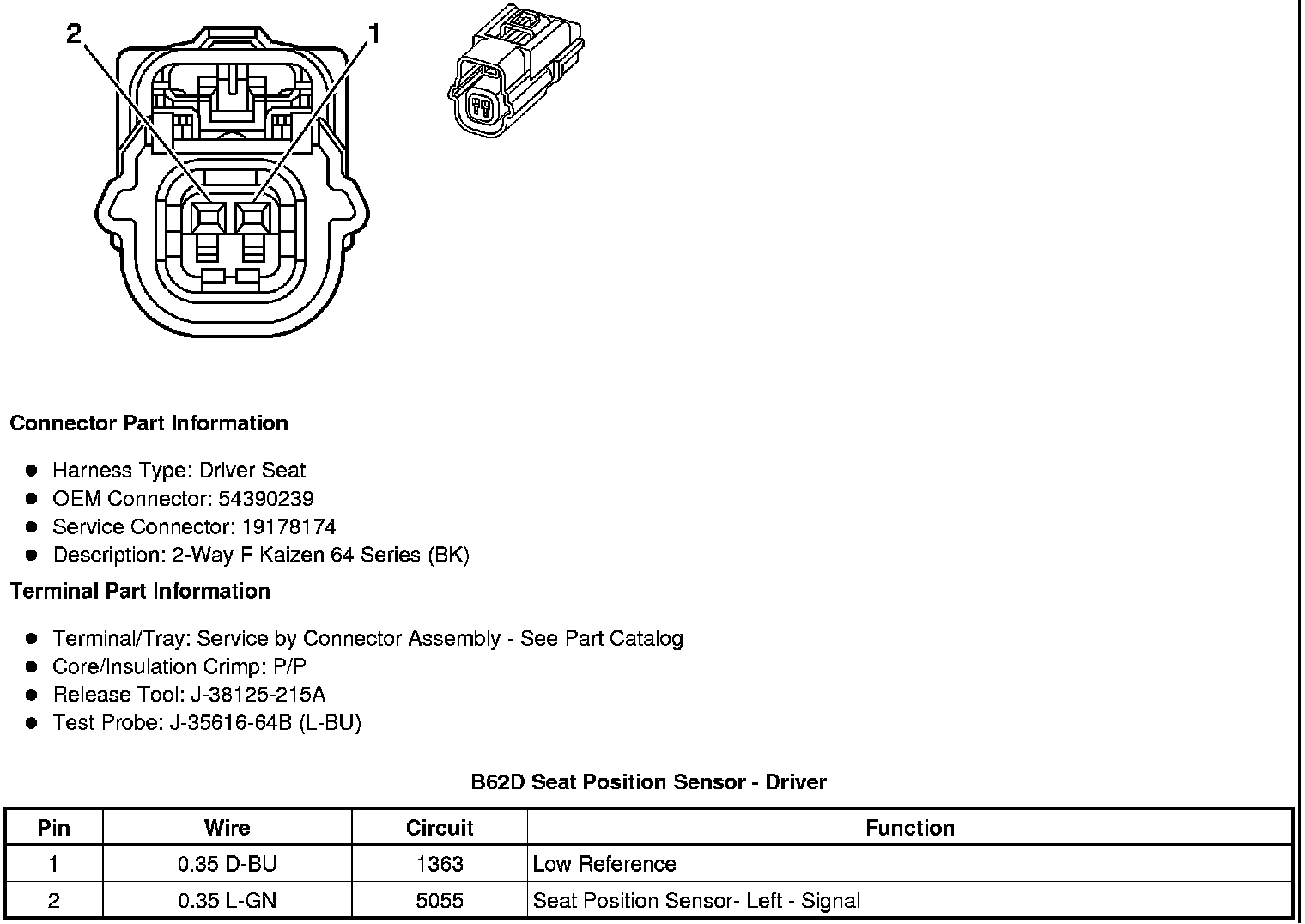

B62D Seat Position Sensor - Driver

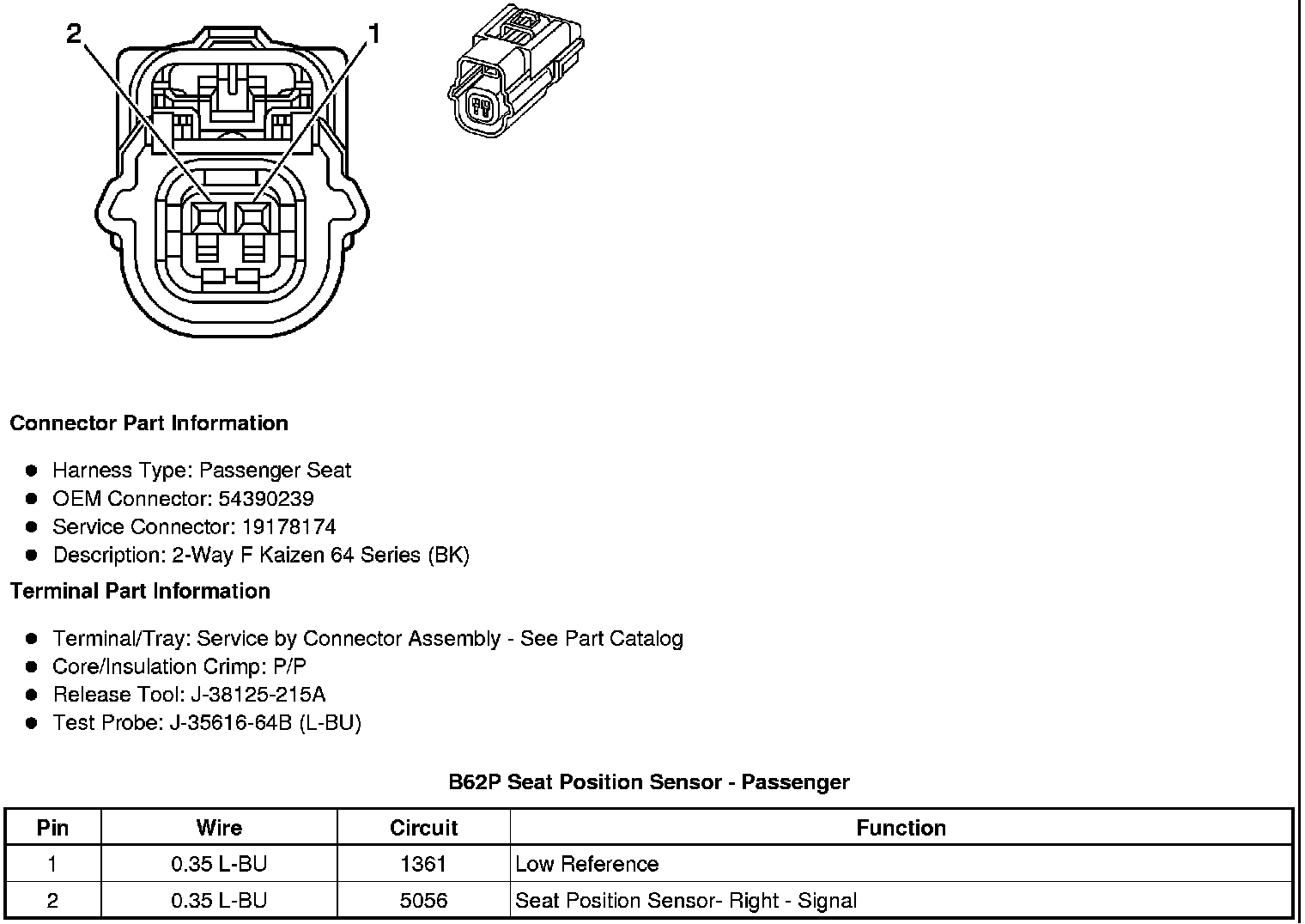

B62P Seat Position Sensor - Passenger
