Seat Temperature Control Module




Component Connector End Views

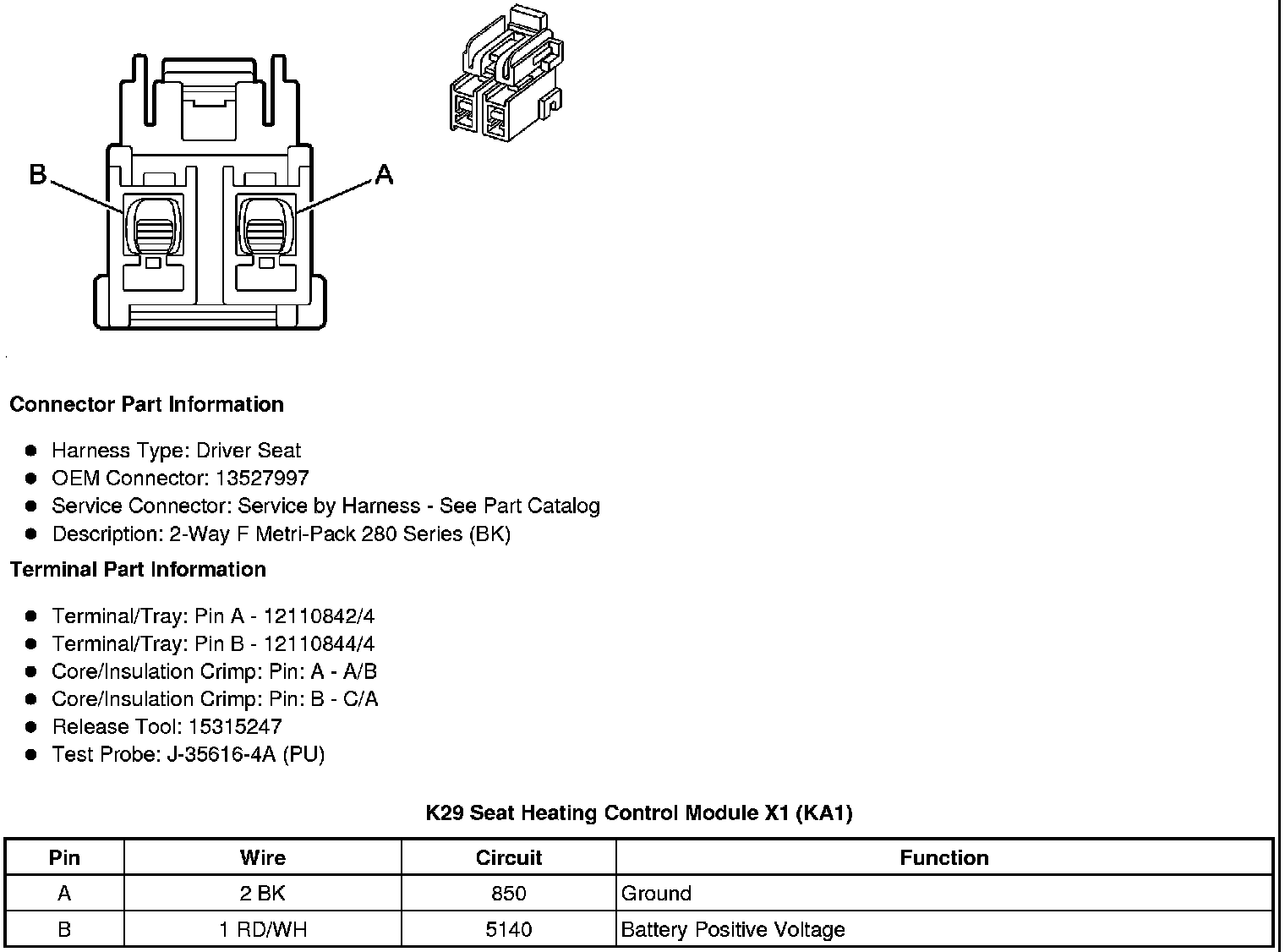

K29 Seat Heating Control Module X1 (KA1)

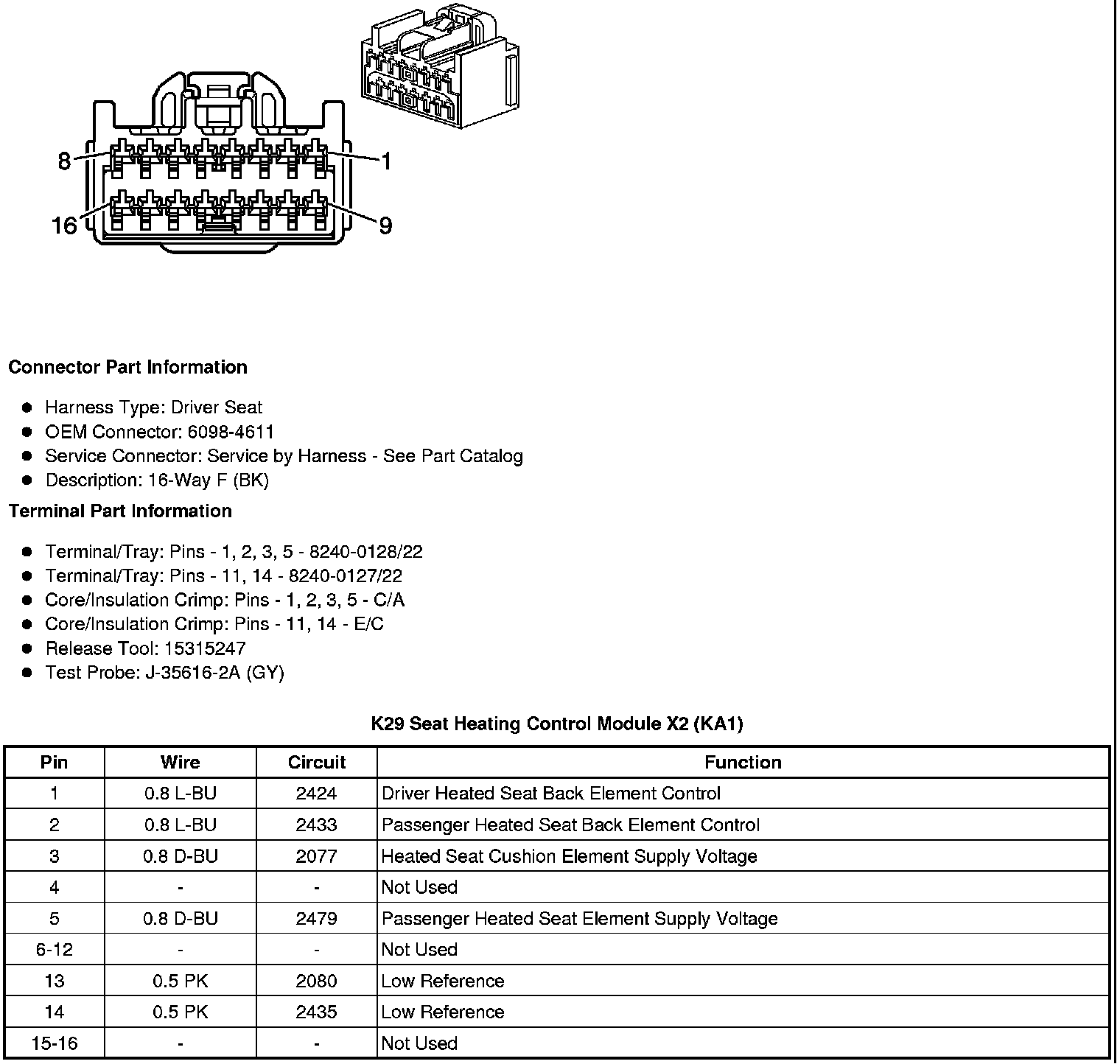

K29 Seat Heating Control Module X2 (KA1)

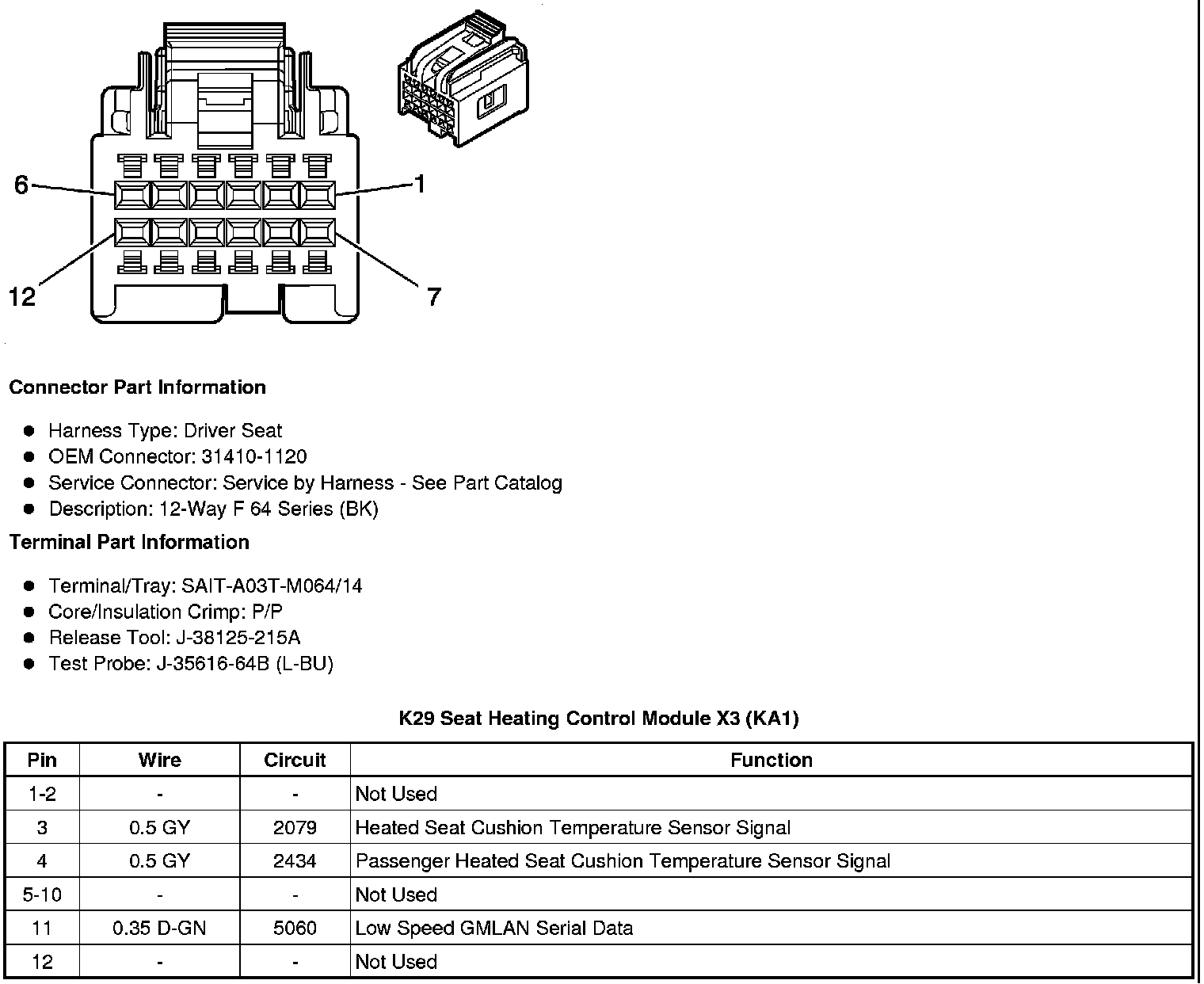

K29 Seat Heating Control Module X3 (KA1)
