Speaker




Component Connector End Views

P19A Speaker - Center Instrument Panel (UQA)

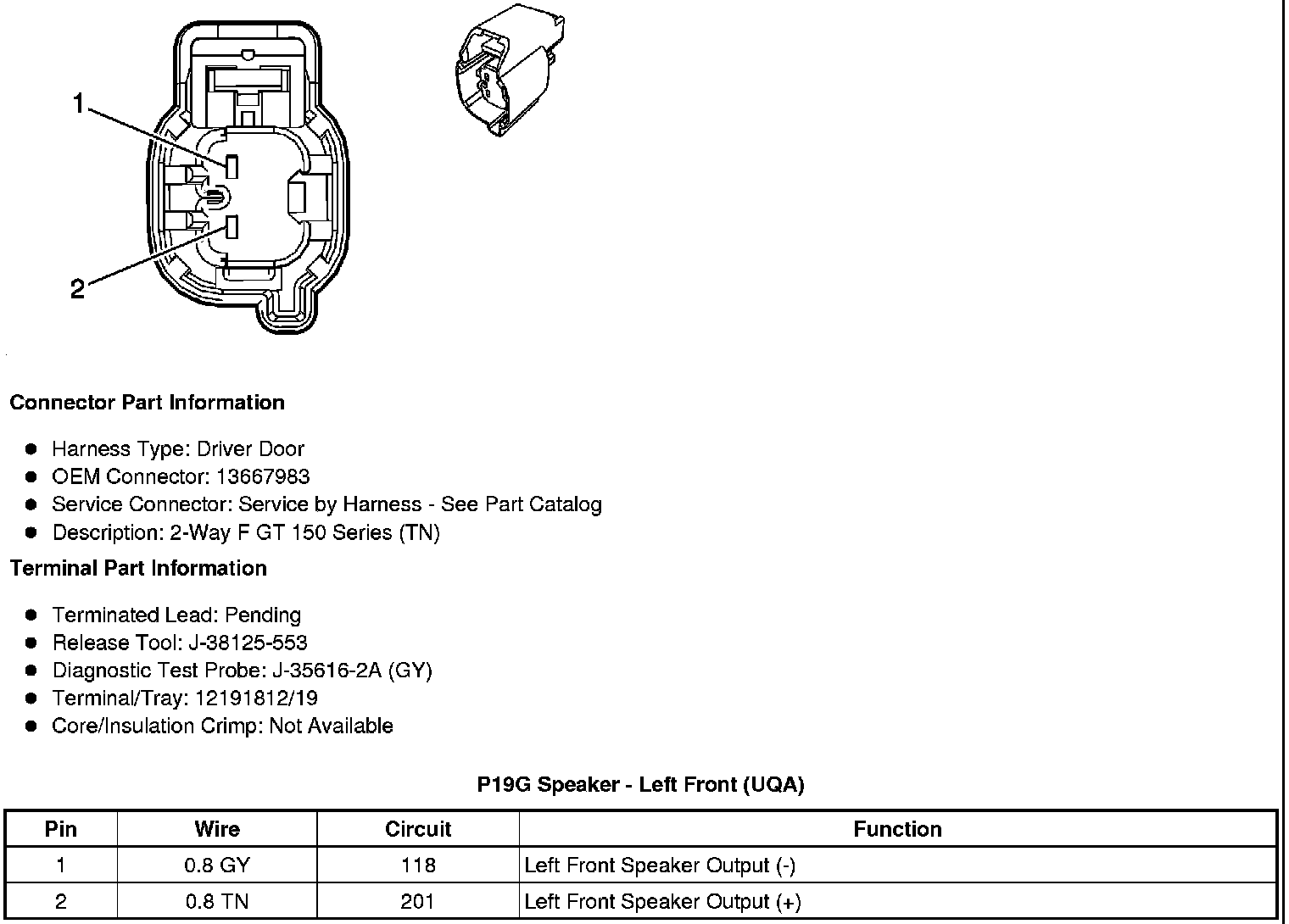

P19G Speaker - Left Front (UQA)

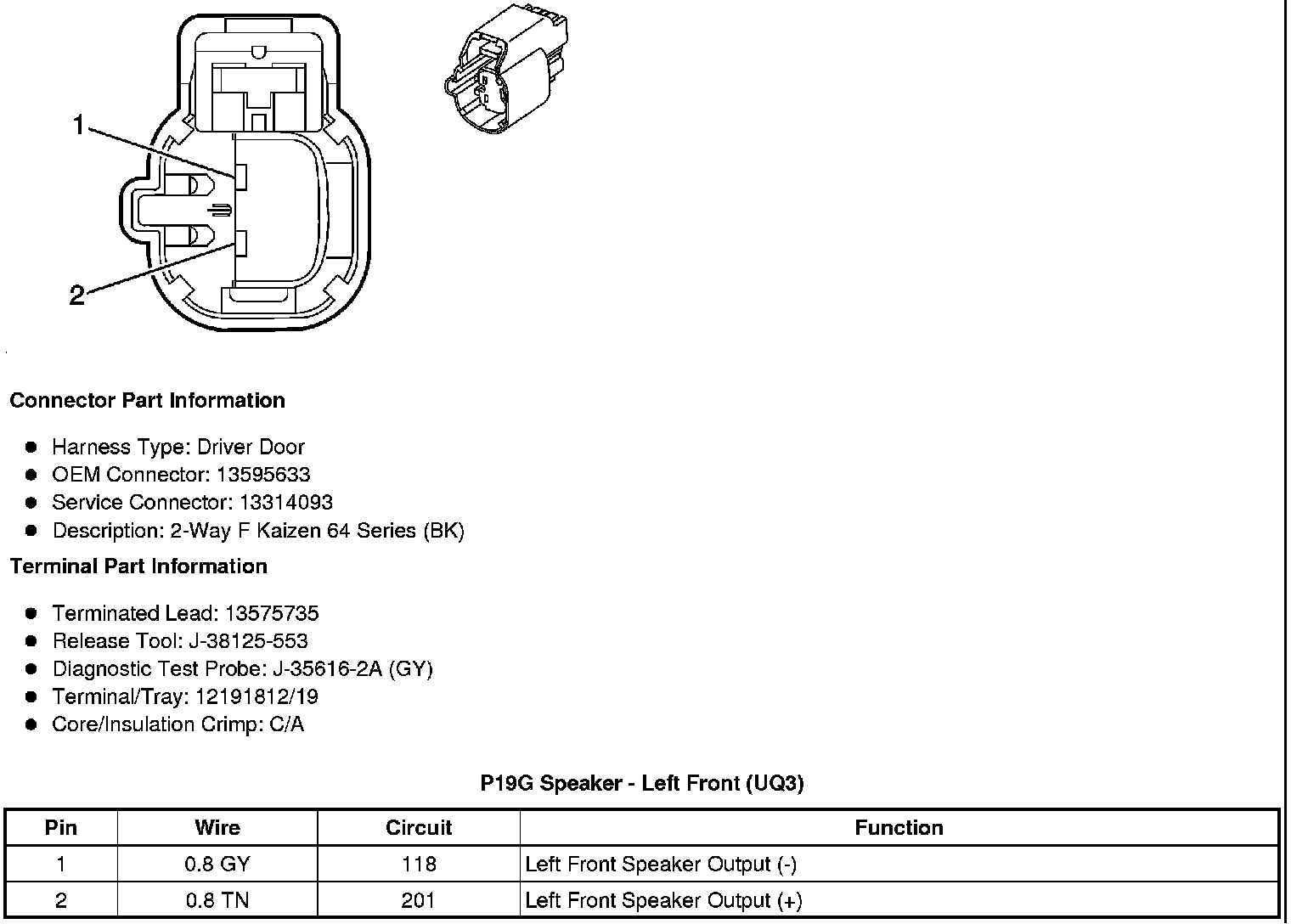

P19G Speaker - Left Front (UQ3)





P19H Speaker - Left Front Tweeter

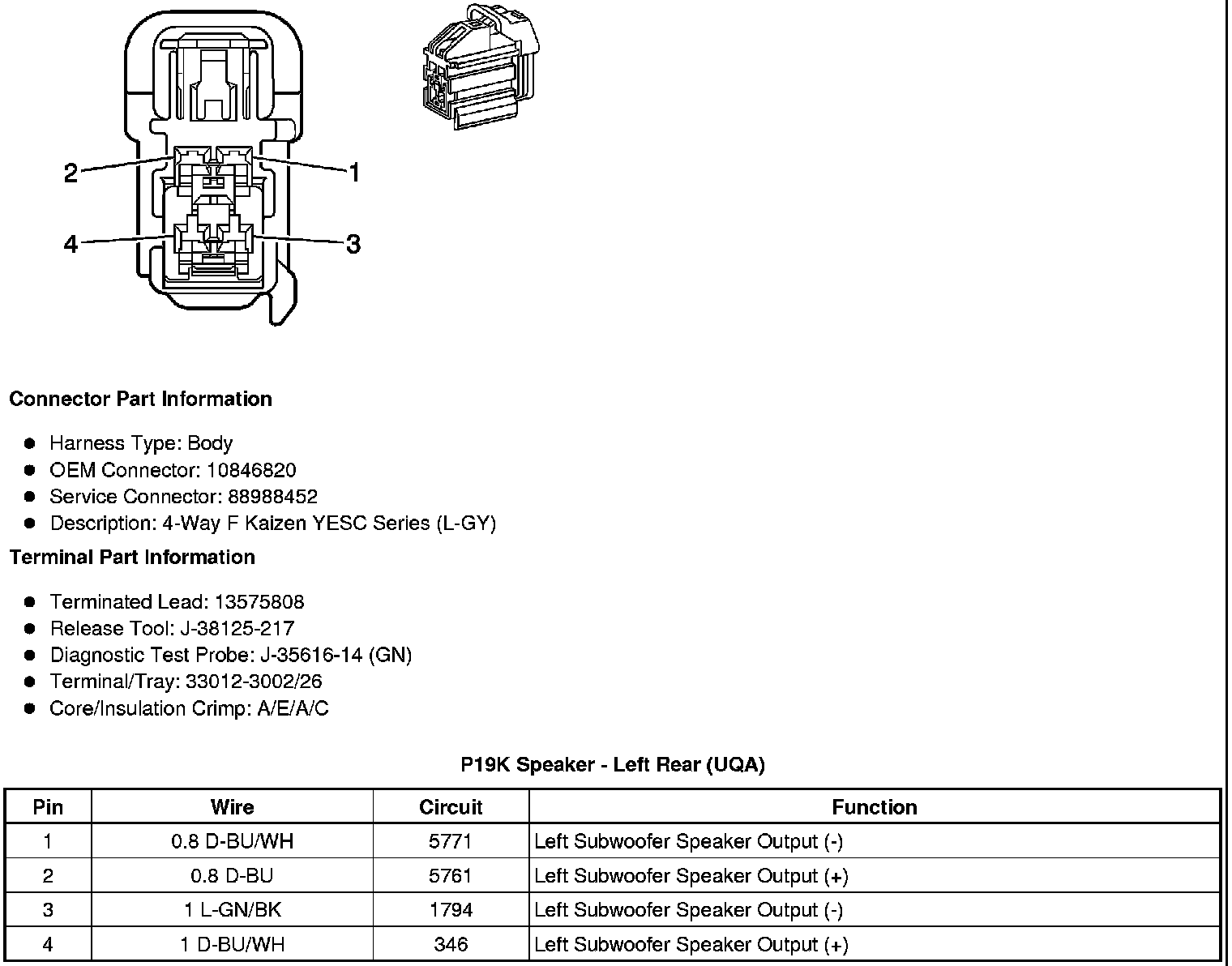

P19K Speaker - Left Rear (UQA)

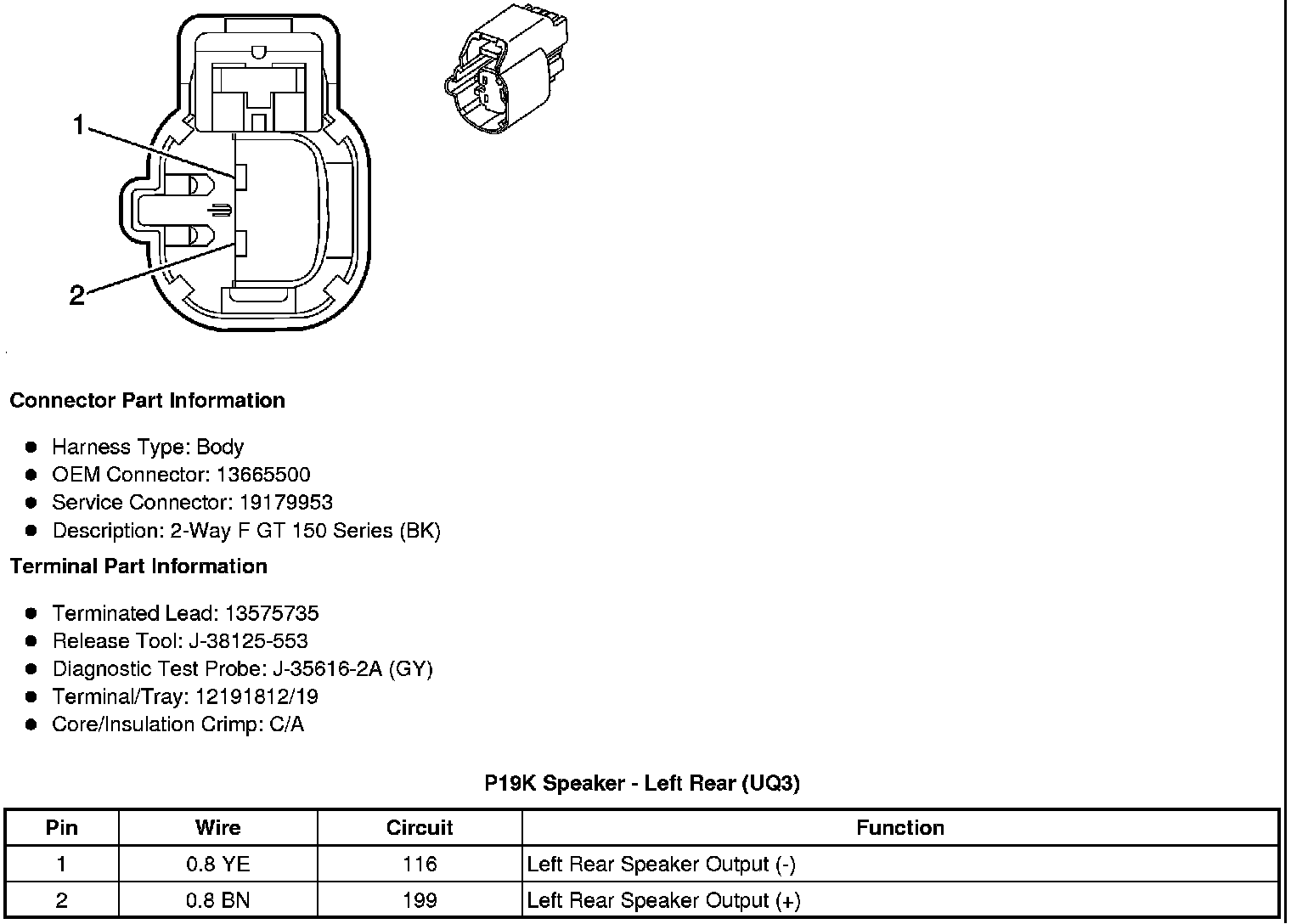

P19K Speaker - Left Rear (UQ3)

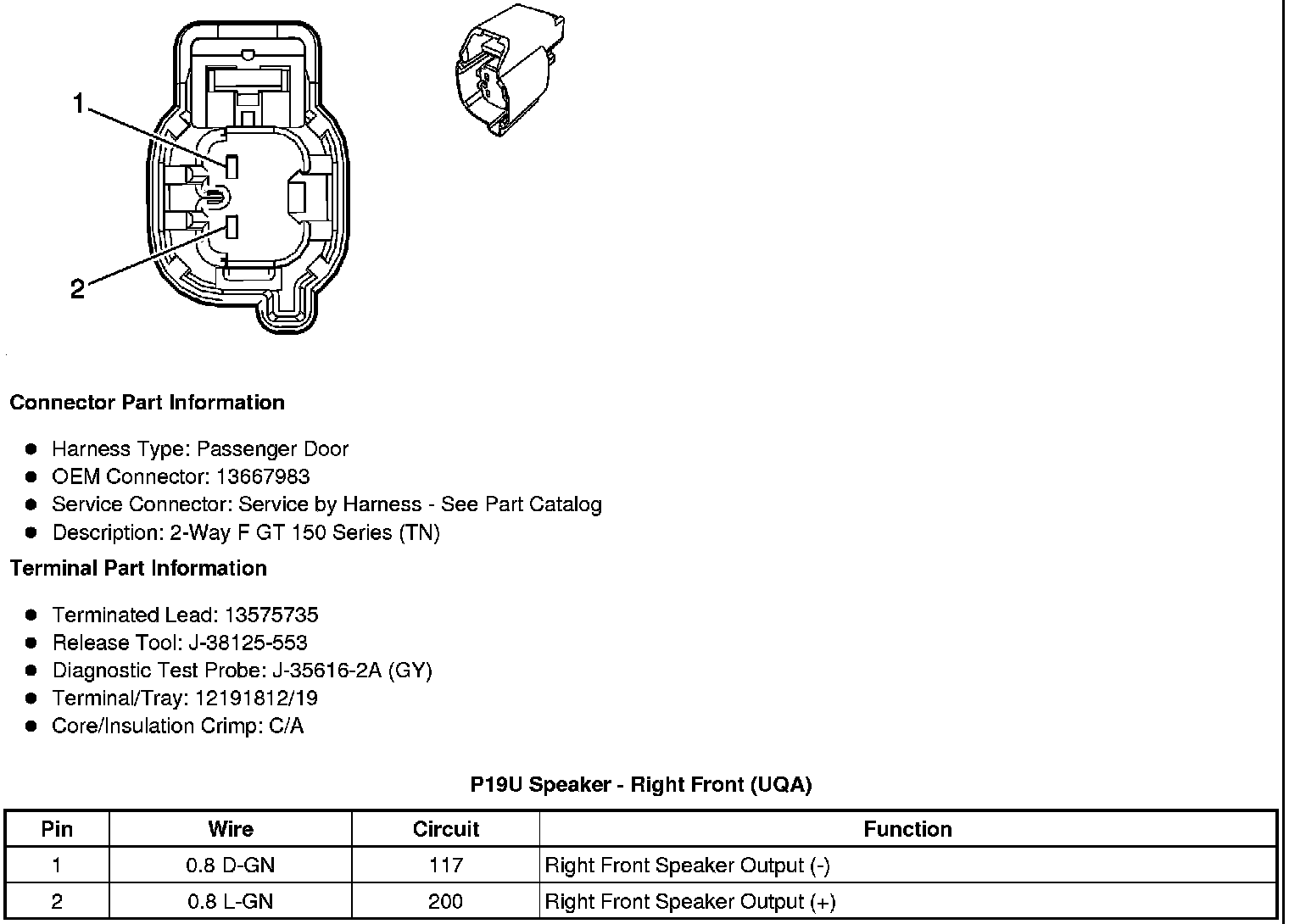

P19U Speaker - Right Front (UQA)

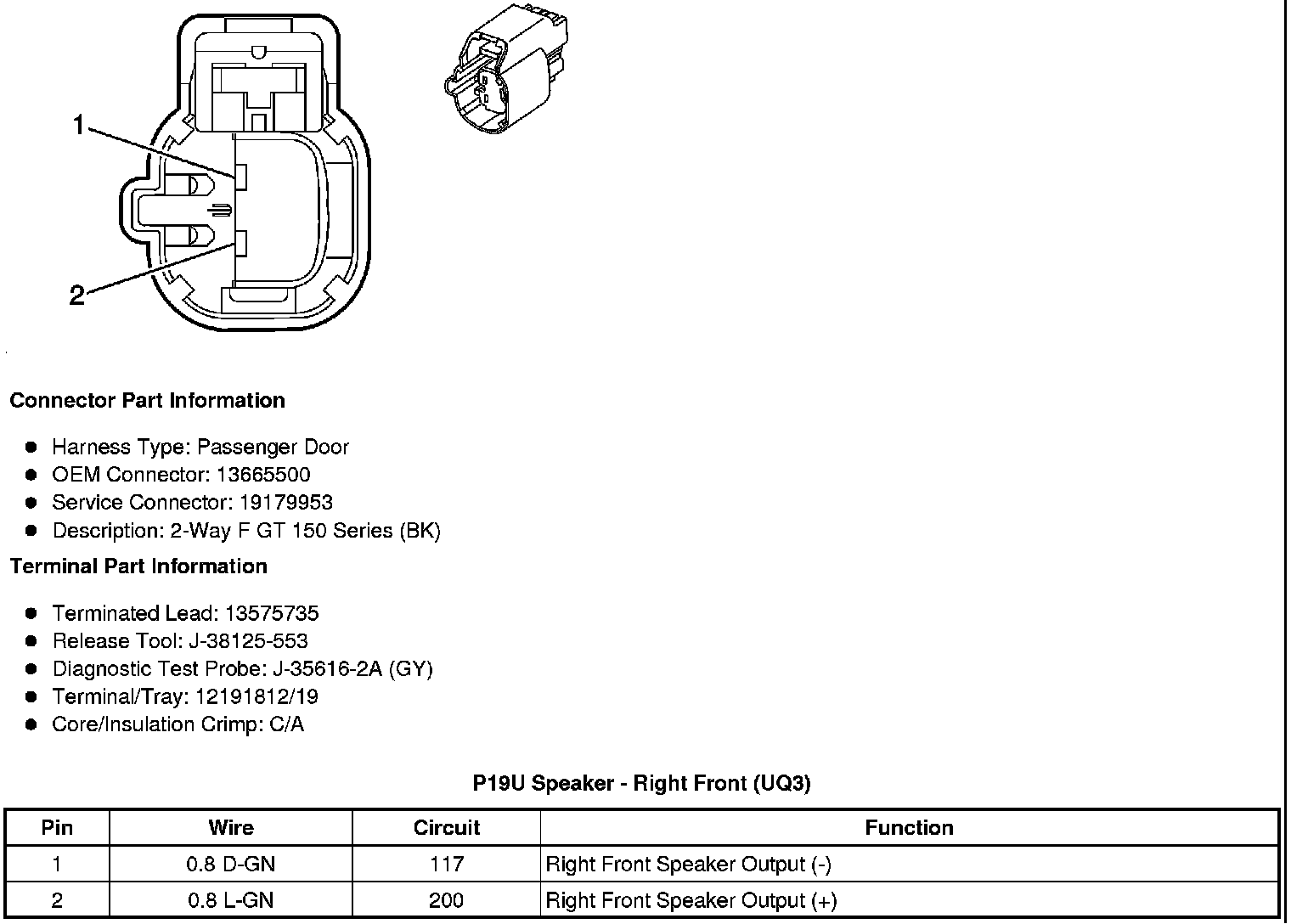

P19U Speaker - Right Front (UQ3)





P19V Speaker - Right Front Tweeter

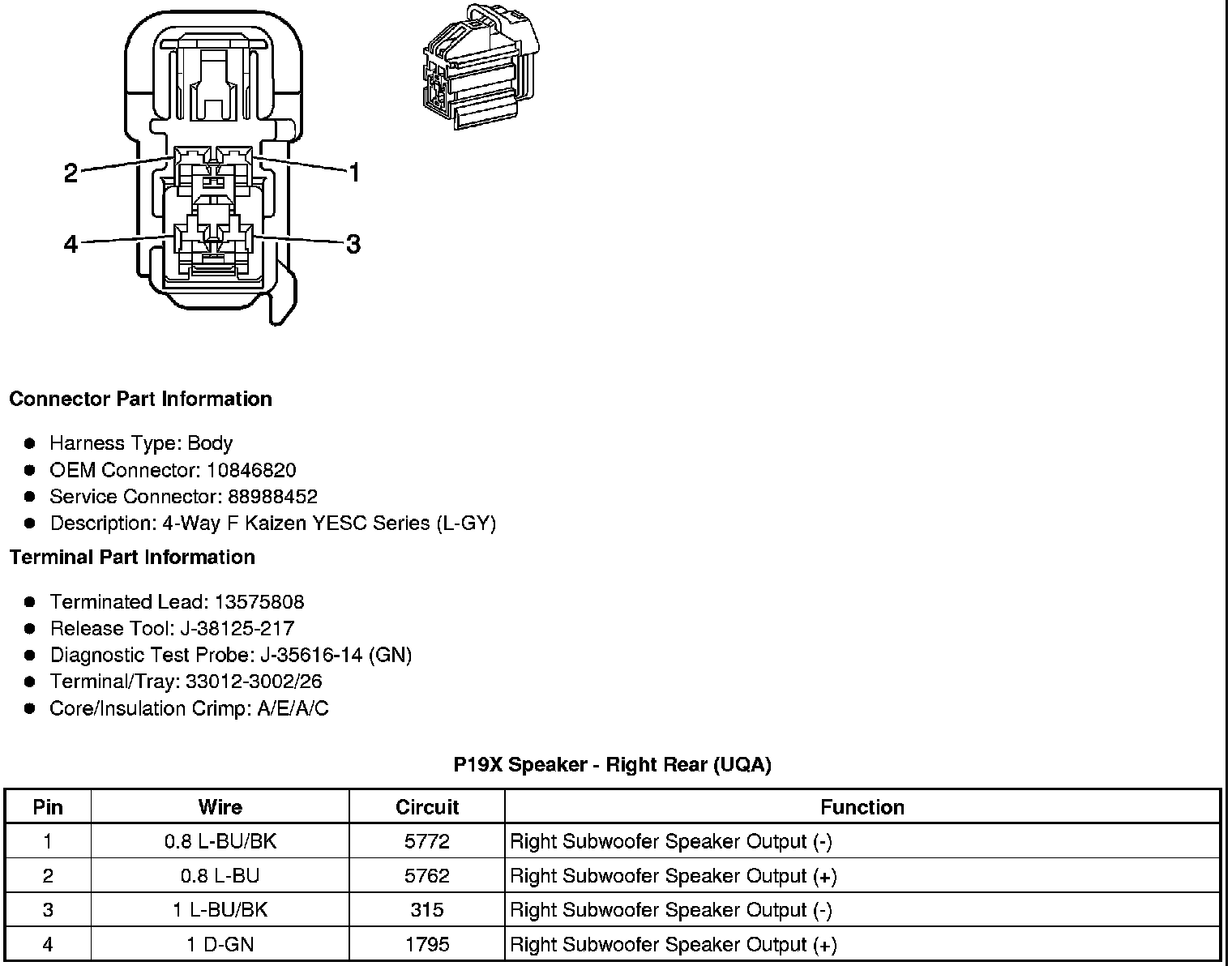

P19X Speaker - Right Rear (UQA)

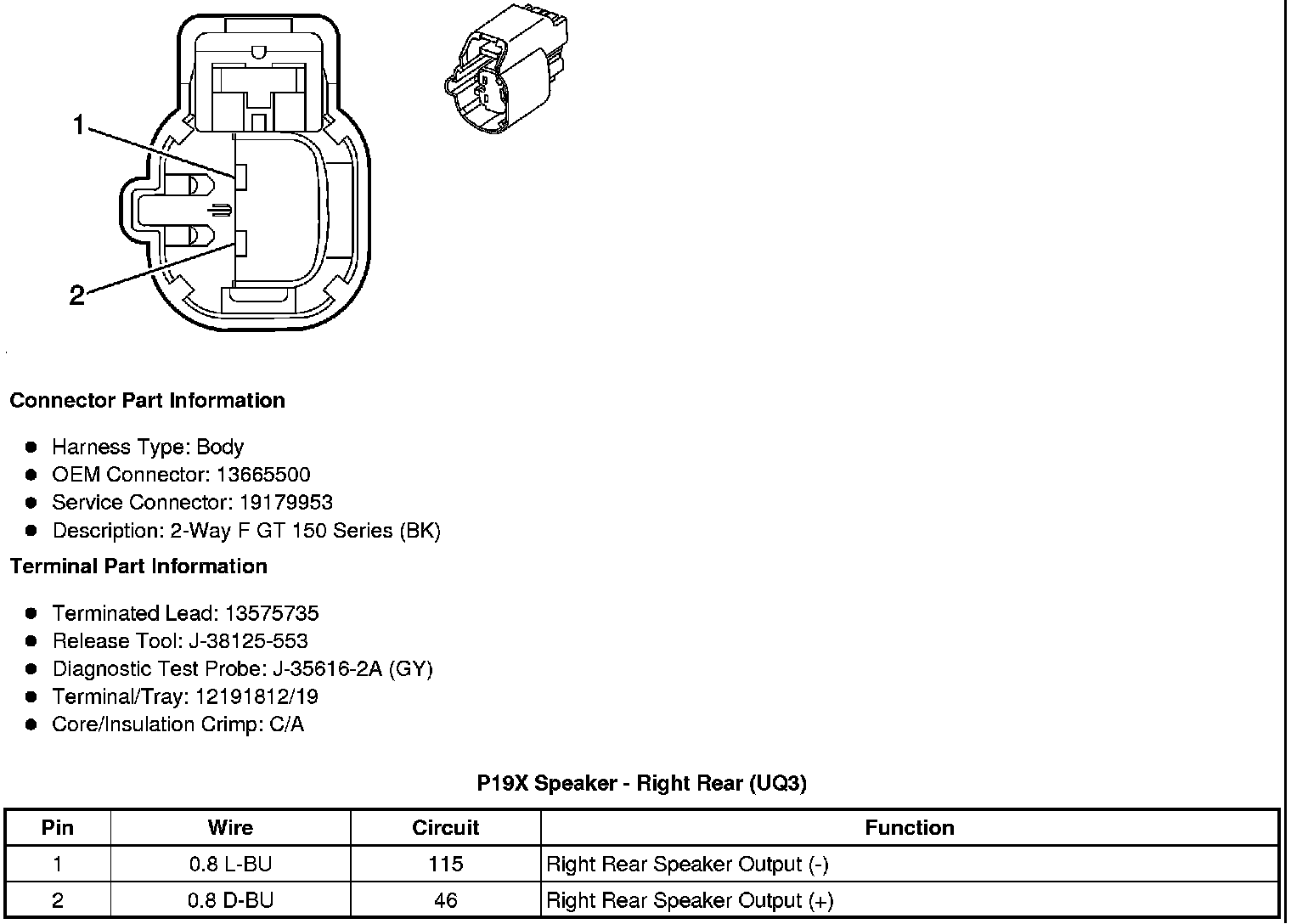

P19X Speaker - Right Rear (UQ3)
