Wheel Speed Sensor




Component Connector End Views

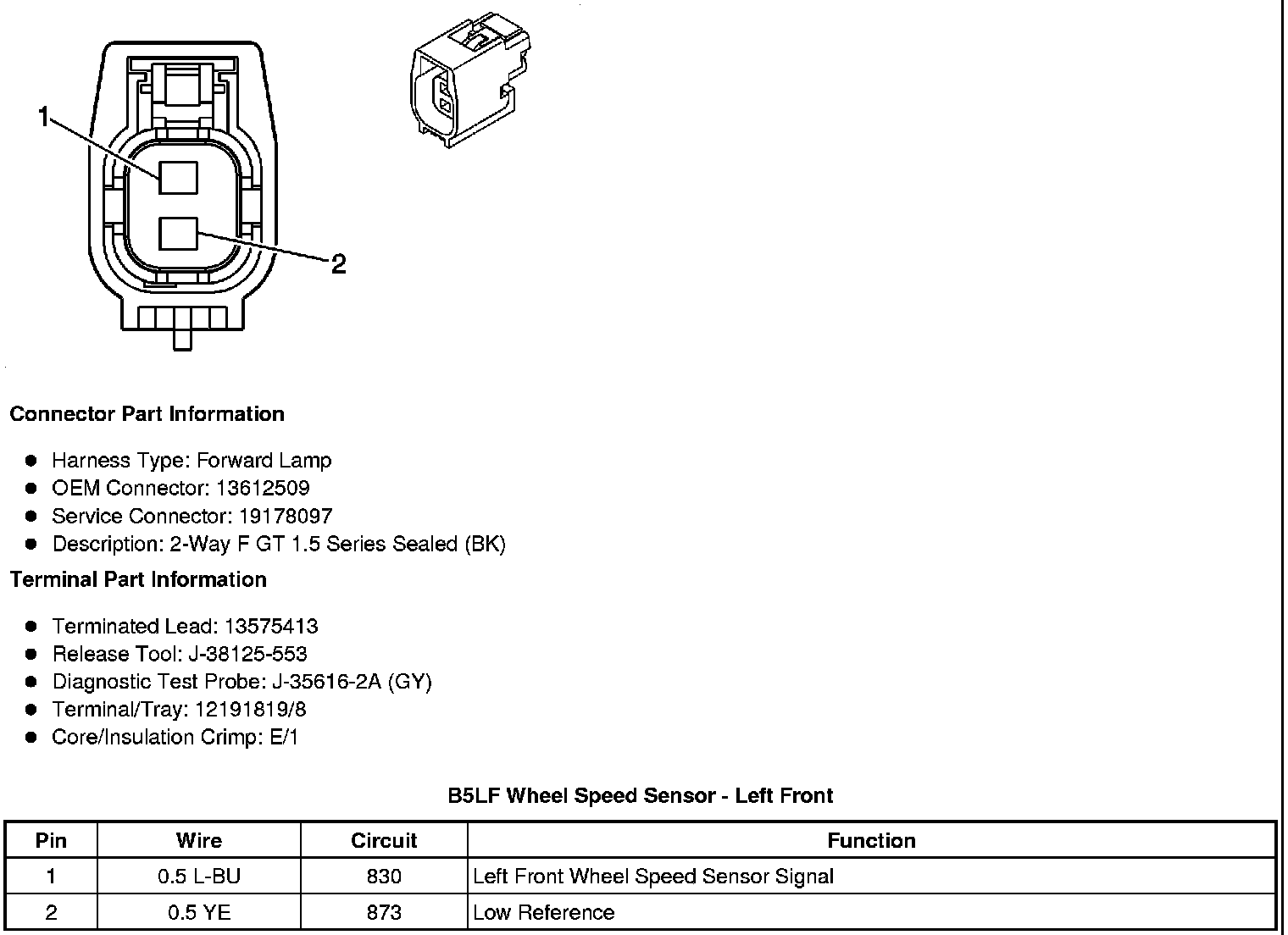

B5LF Wheel Speed Sensor - Left Front





B5LR Wheel Speed Sensor - Left Rear





B5RF Wheel Speed Sensor - Right Front

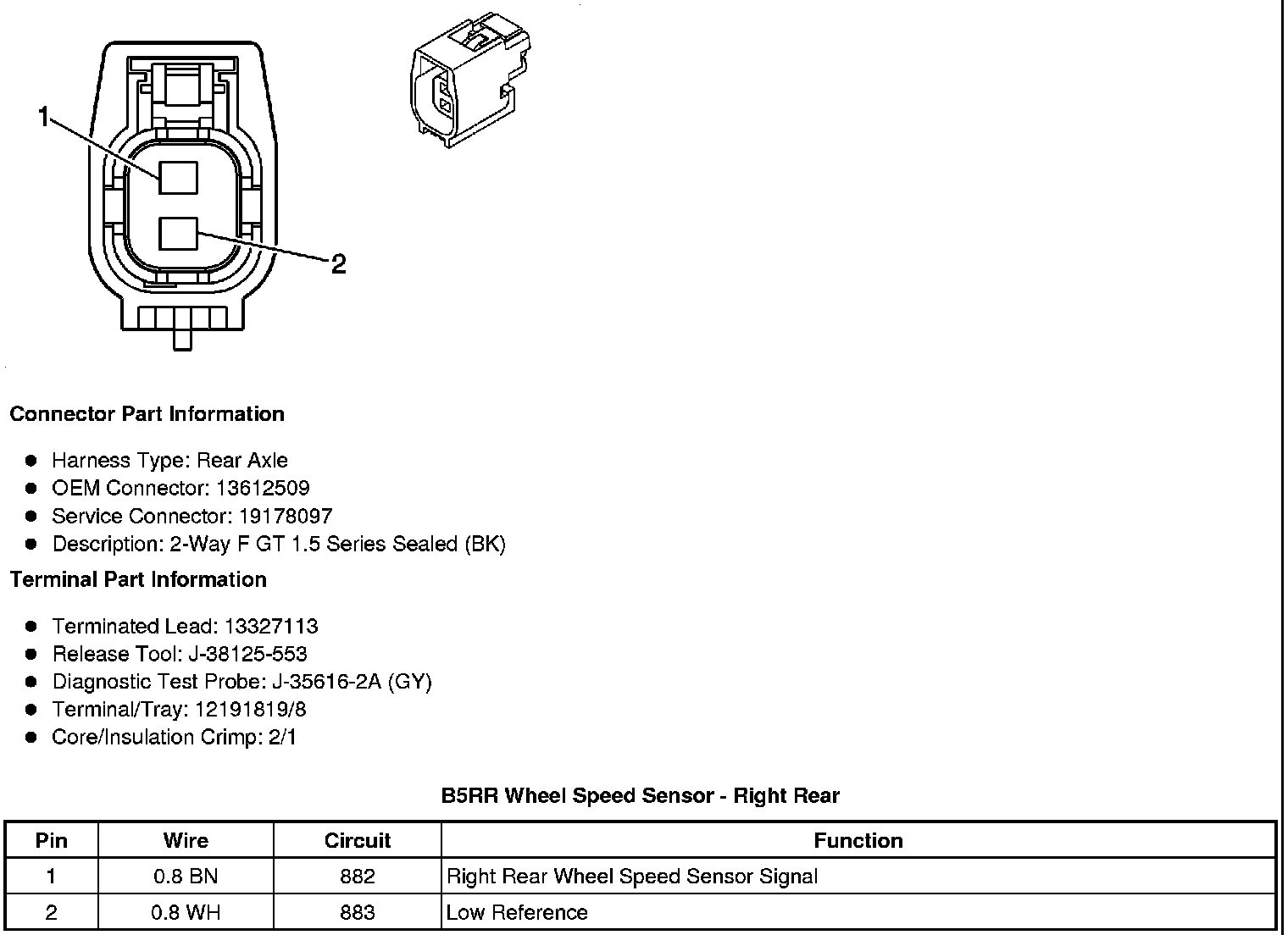

B5RR Wheel Speed Sensor - Right Rear
