Body Control Systems




Body Control System Schematics

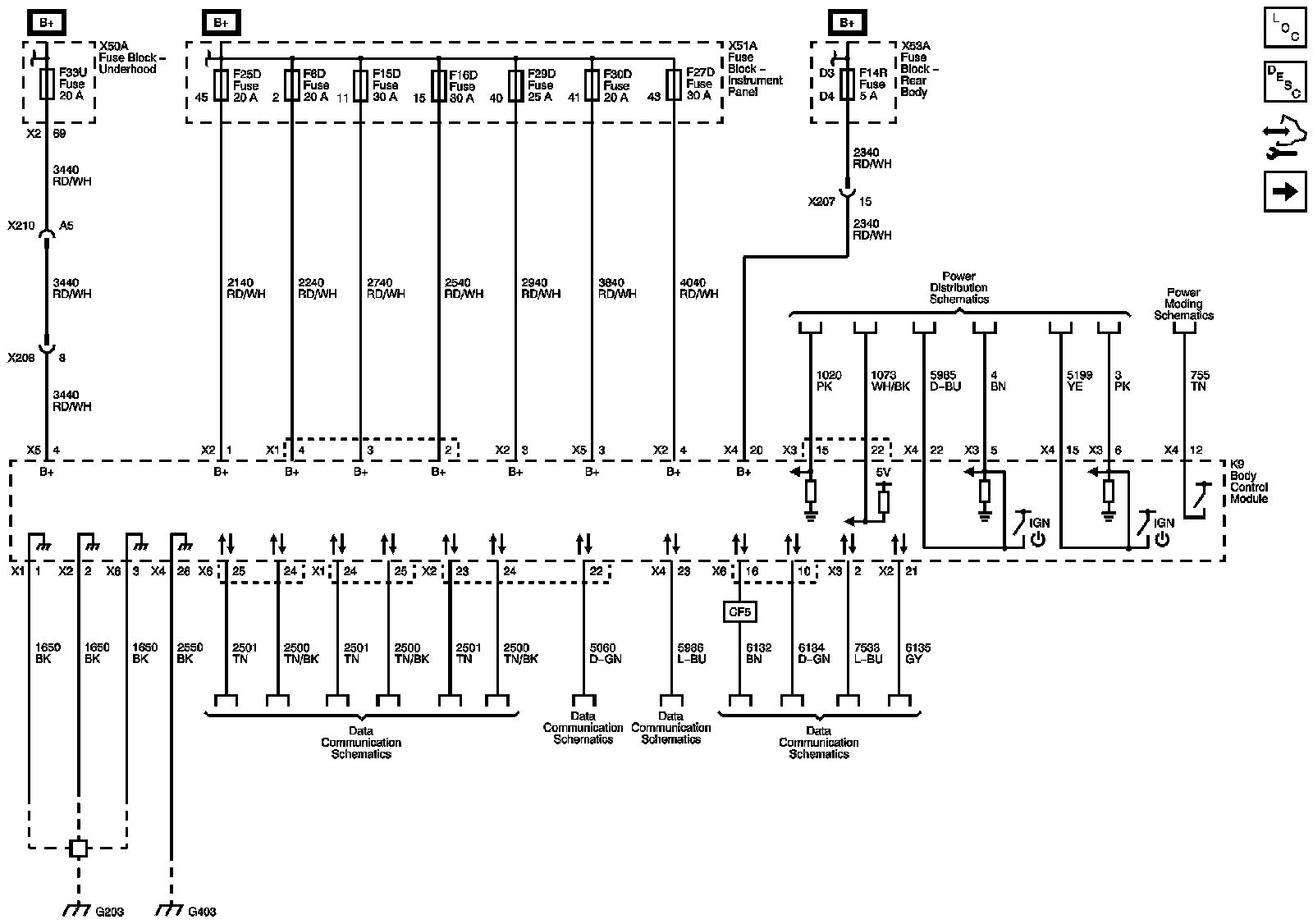

Power, Ground, and Data Communications

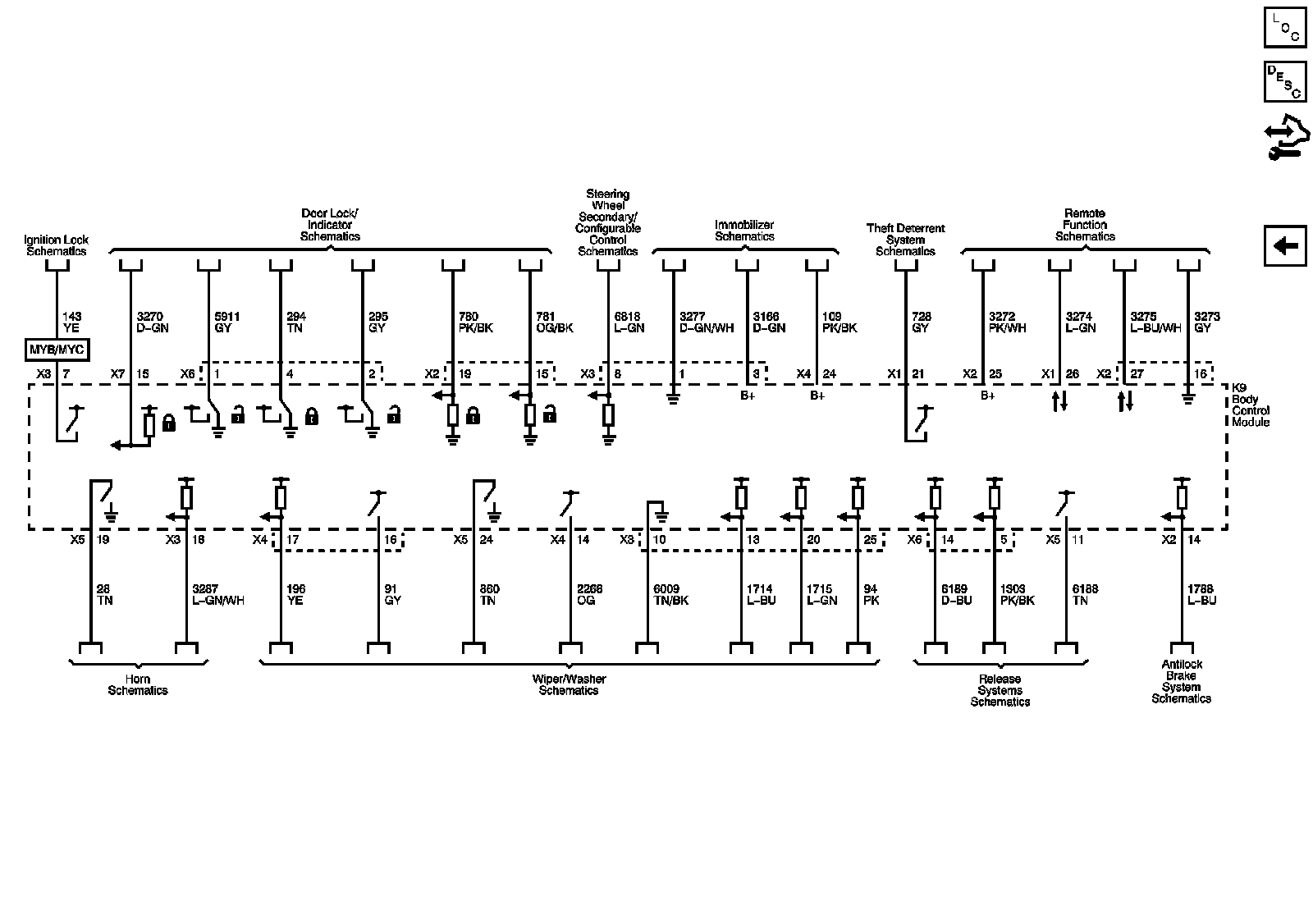

References 1 of 2

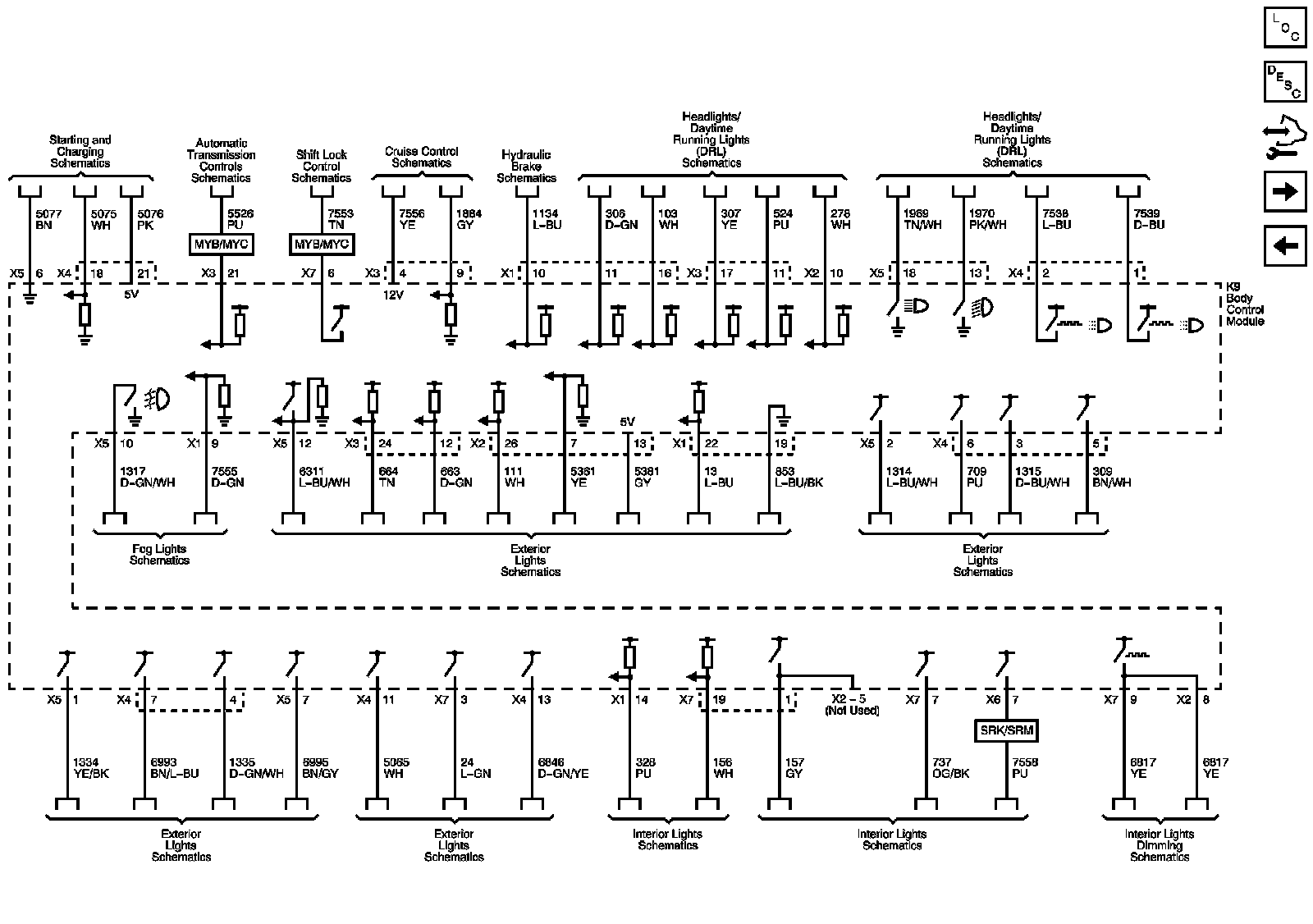

References 2 of 2
