Front of Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

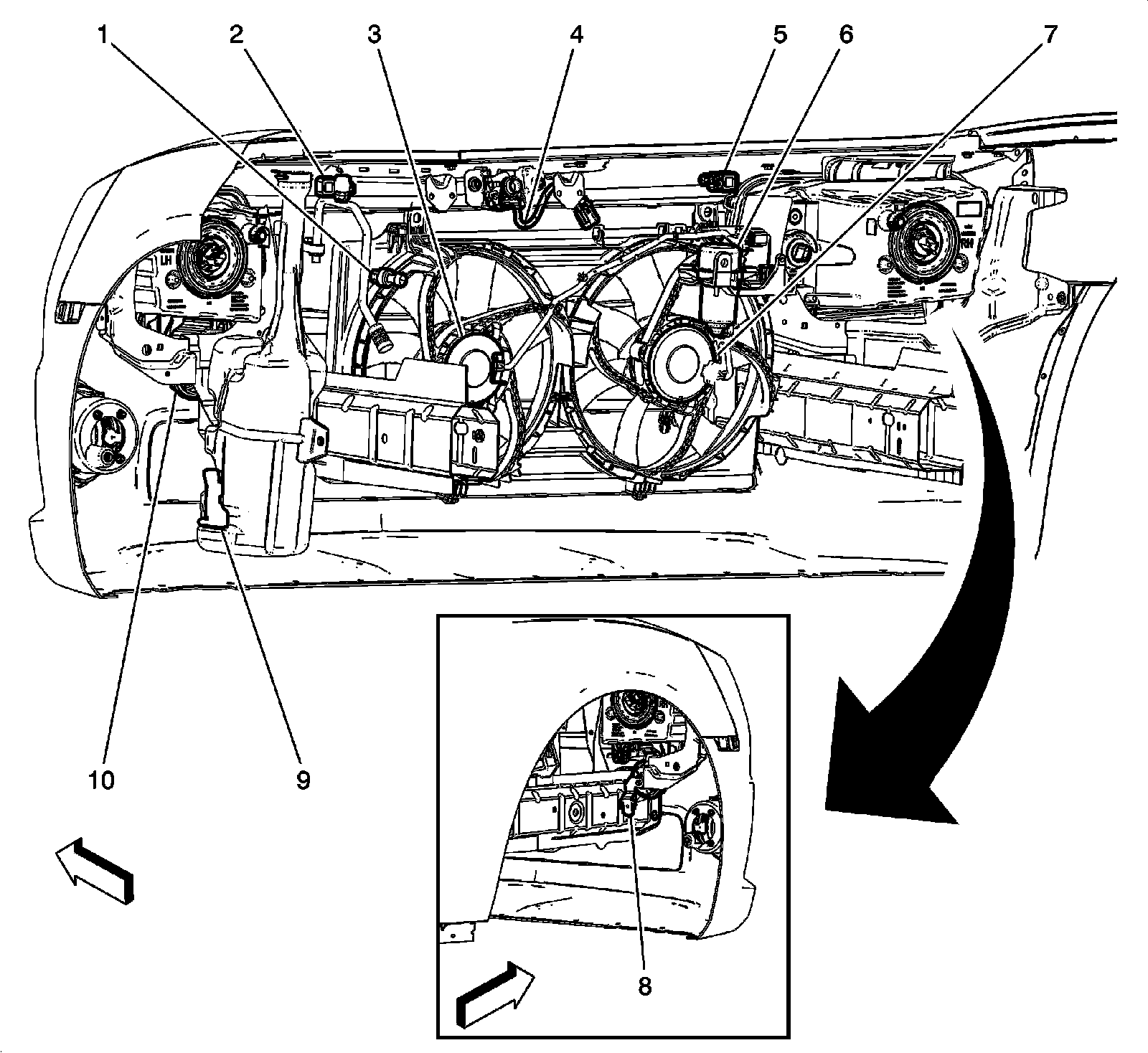

Front of Engine Compartment Components




1 - B1 A/C Refrigerant Pressure Sensor
2 - B59L Front Impact Sensor - Left
3 - G10L Cooling Fan Motor - Left
4 - B55 Hood Ajar Switch
5 - B59R Front Impact Sensor - Right
6 - G6 Brake Booster Pump - Auxiliary (LLT)
7 - G10R Cooling Fan Motor - Right
8 - P12A Horn - High Note
9 - G24 Windshield Washer Pump
10 - P12B Horn - Low Note
