Front of Passenger Compartment HVAC Module Components

Instrument Panel/Center Console Component Views

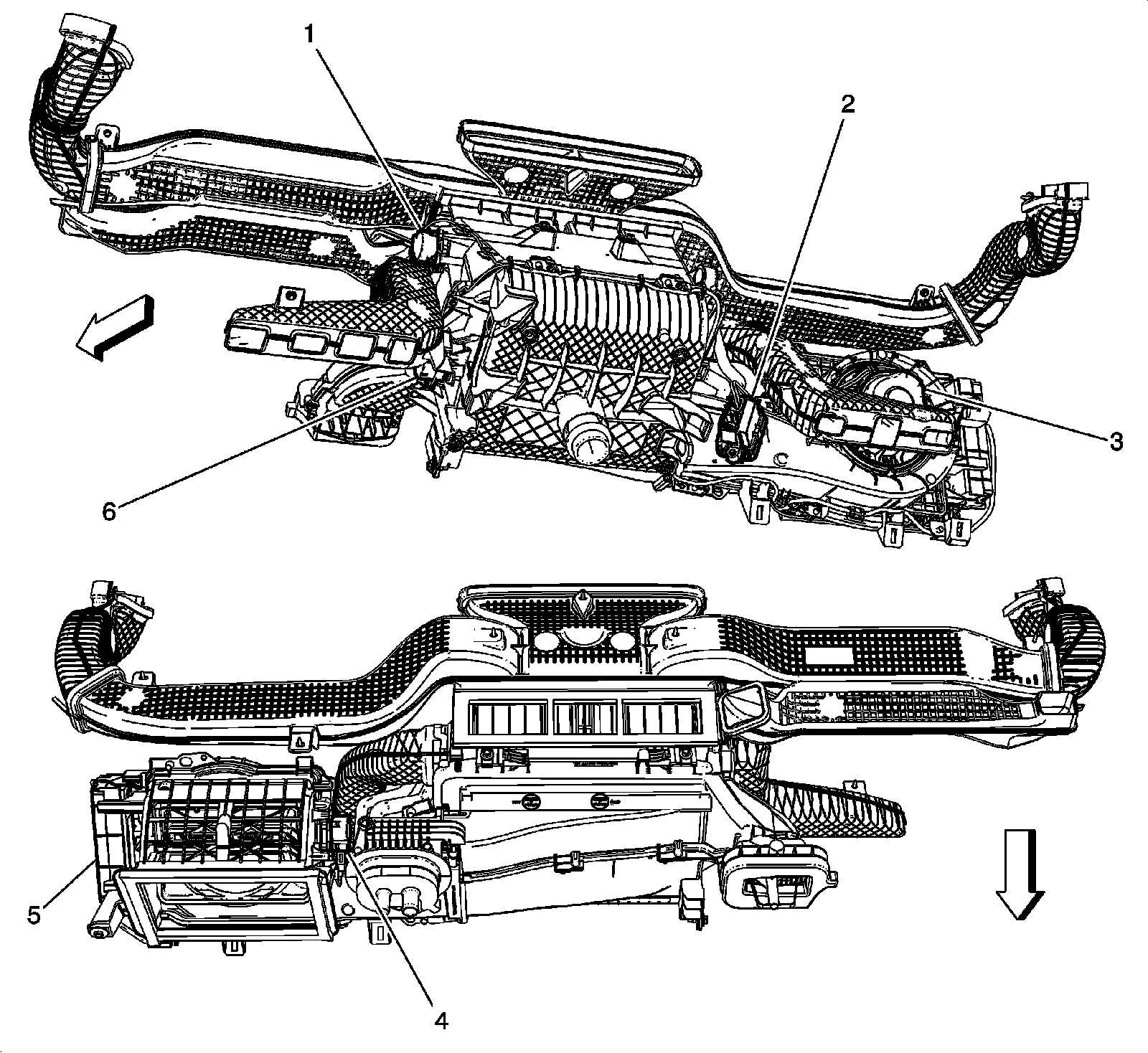

Front of Passenger Compartment HVAC Module Components




1 - M37 Mode Door Actuator
2 - K8 Blower Motor Control Module
3 - M8 Blower Motor
4 - M46 Air Recirculation Door Motor
5 - K33 HVAC Control Module
6 - M6 Air Temperature Door Actuator
