Left Rear Engine Components

Powertrain Component Views

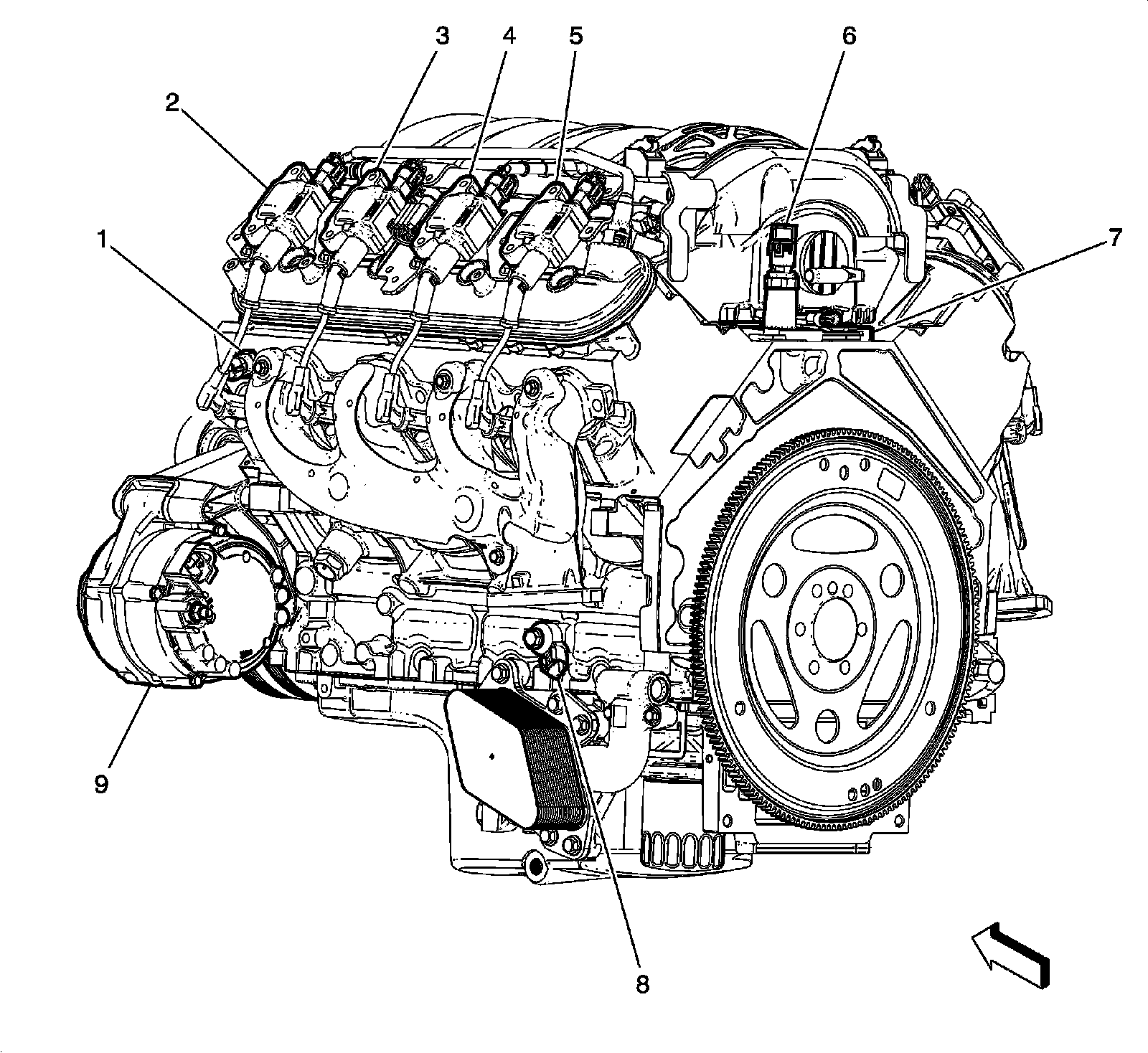

Left Rear of the Engine Components (L99 or LS3)




1 - B34 Engine Coolant Temperature Sensor
2 - T8A Ignition Coil 1
3 - T8C Ignition Coil 3
4 - T8E Ignition Coil 5
5 - T8G Ignition Coil 7
6 - B37B Engine Oil Pressure Sensor
7 - Q43 Valve Lifter Oil Manifold Assembly (L99)
8 - B68A Knock Sensor 1
9 - G13 Generator
