Battery Current Sensor: Locations

Luggage Compartment/Rear of Vehicle Component Views

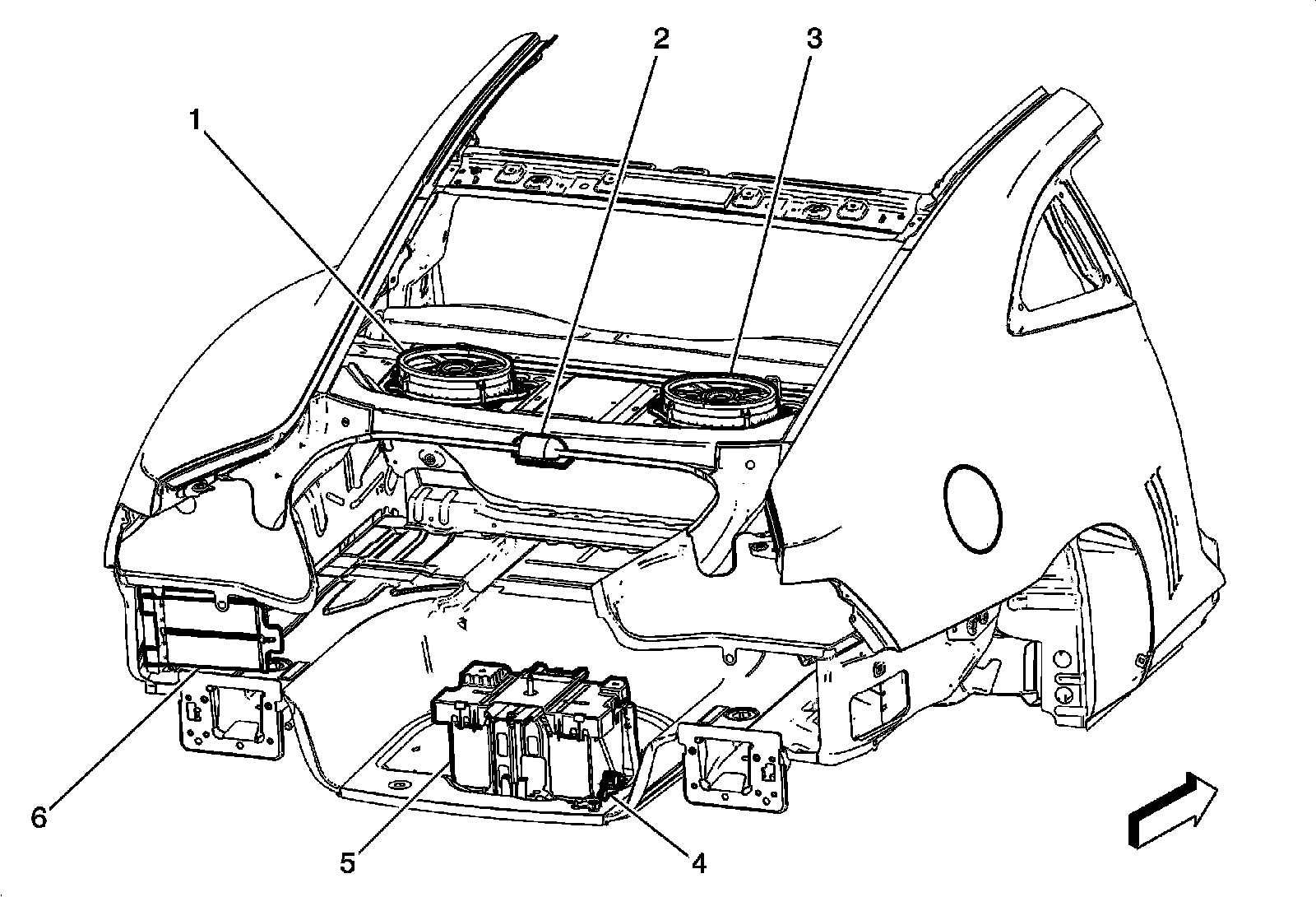

Rear of Vehicle from Right Side Components




1 - P19K Speaker - Left Rear
2 - E8S Rear Compartment Courtesy Lamp
3 - P19X Speaker - Right Rear
4 - B18 Battery Current Sensor
5 - C1 Battery
6 - T3 Audio Amplifier (UQA)
