Transmission Position Sensor/Switch: Locations

Instrument Panel/Center Console Component Views

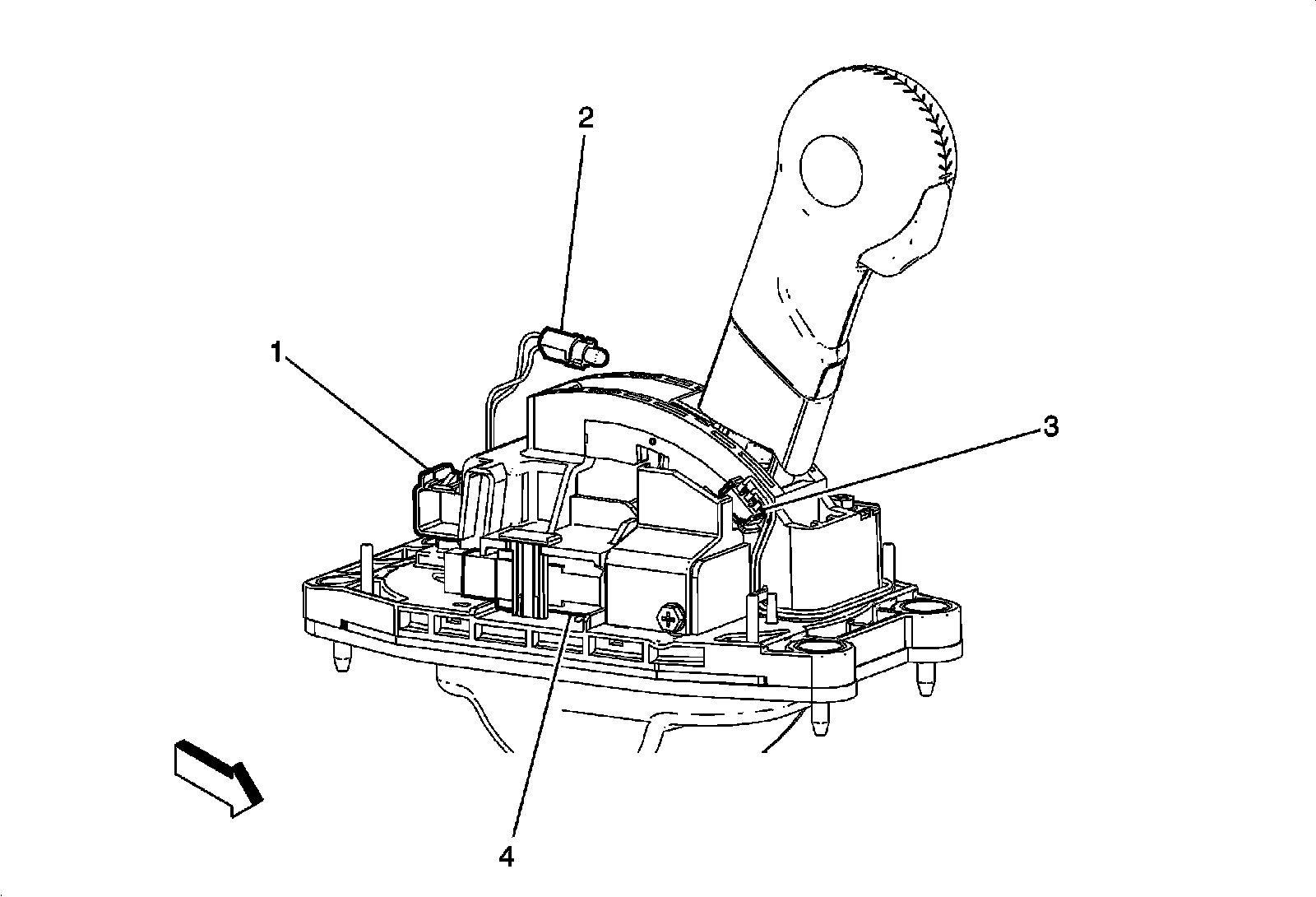

Under the Center Console Automatic - Transmission Shift Lever Components (MYB or MYC)




1 - X301
2 - P2 Transmission Shift Lever Position Indicator
3 - B81B Park Position Switch
4 - M7 Transmission Shift Lock Control Solenoid Actuator
