Installation Procedure

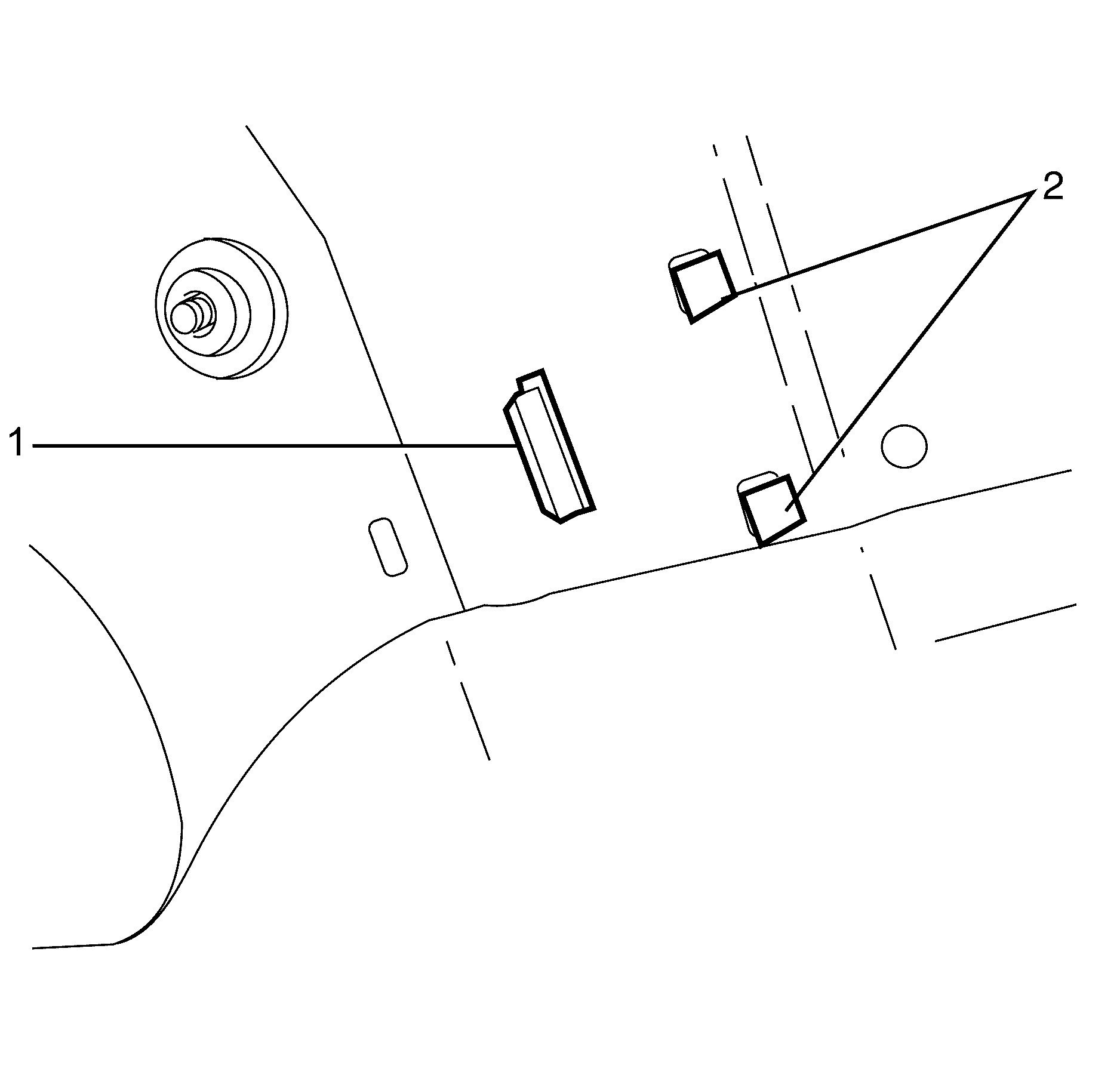

Fig 1: Locating Retaining Tangs

Courtesy of GENERAL MOTORS CORP.

Install the RFA by inserting the retaining tang (1) first and snap fitting the other two retaining tangs (2) listen for an audible click to confirm fitting.

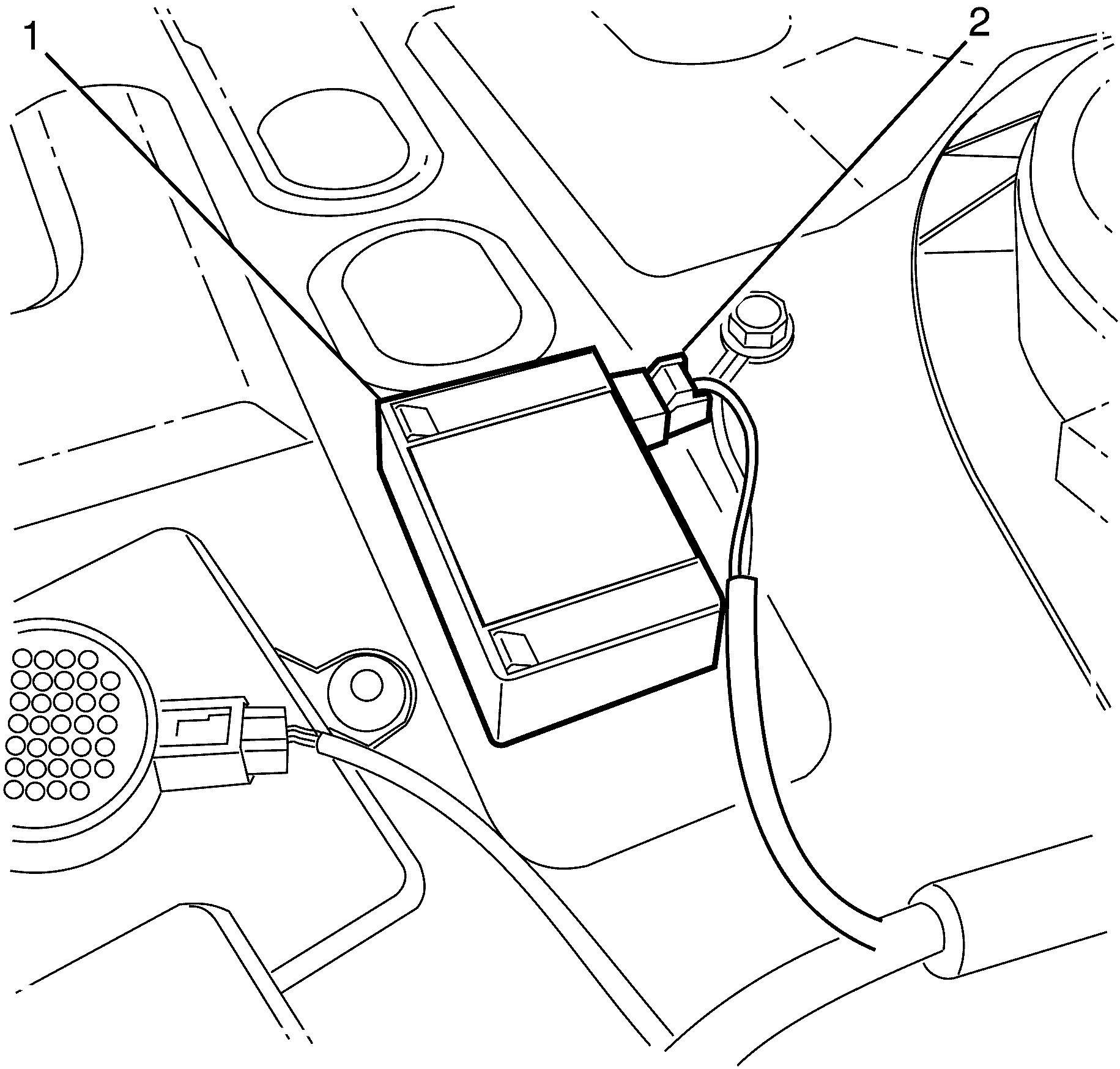

Fig 2: Identifying RFA Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the RFA (1) electrical connector (2).
Install the rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement (Sedan) .
Program the remote control door lock receiver (1). Refer to Control Module References .
Operate the keyless entry for correct operation.
