Installation Procedure

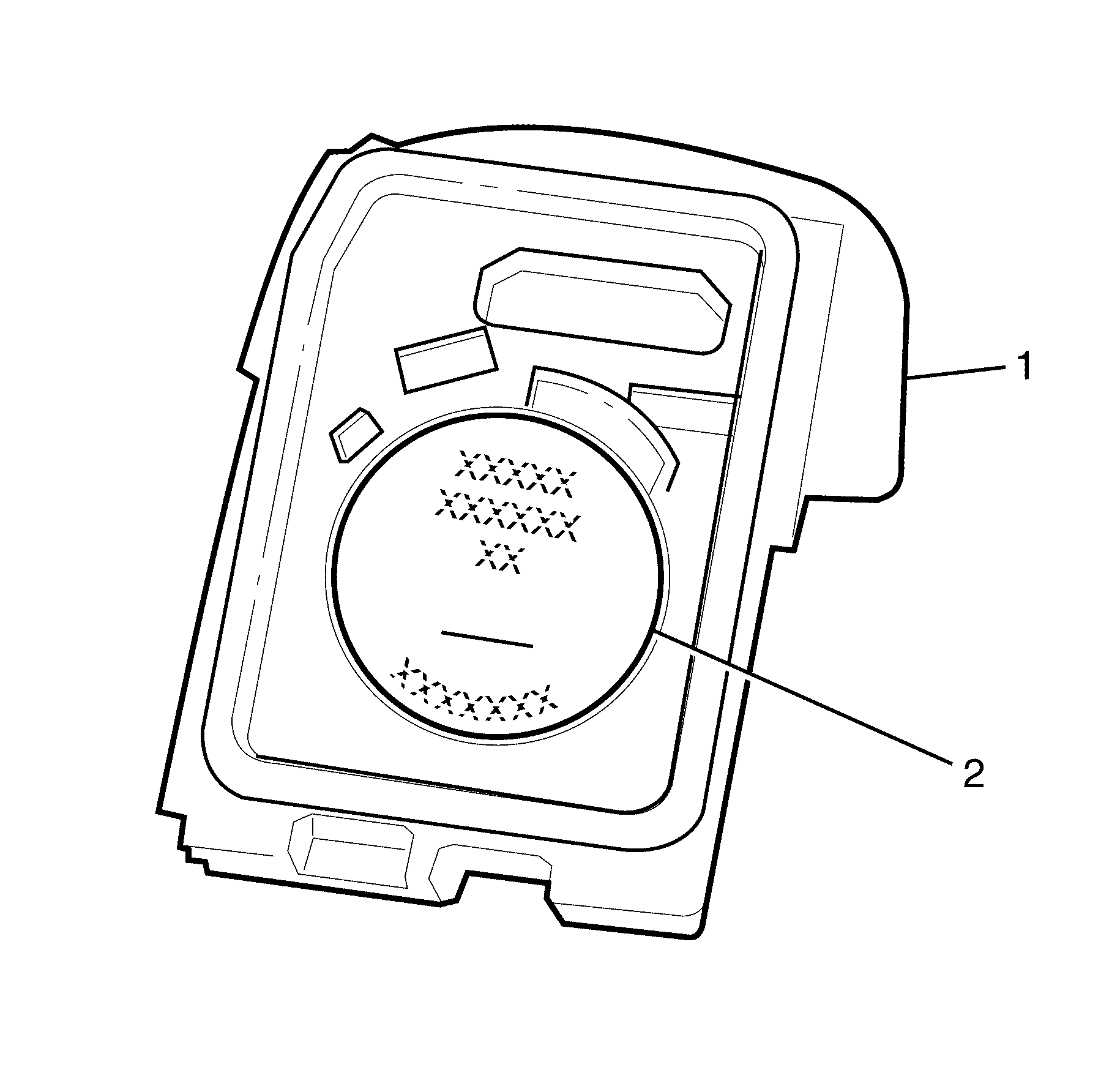

    Fig 1: Identifying Transmitter Battery & Case
    GM1962641Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:

    Transfer the battery directly from the blister pack to the fob. Avoid finger contact with battery.

  1. Install the transmitter battery (2) inside of the transmitter case (1) with the positive (+) side down.

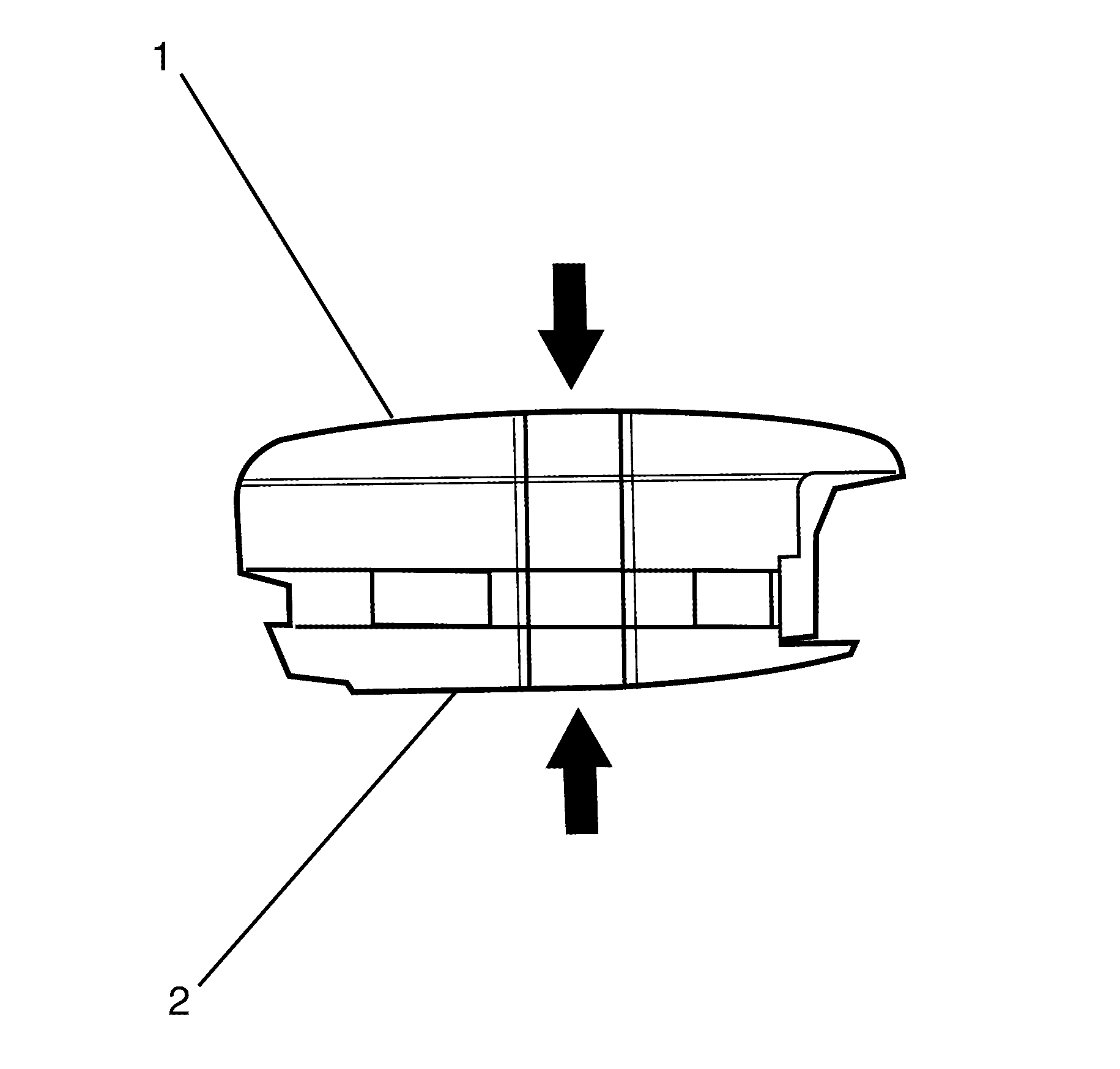

    2. Fig 2: Locating Halves Of Transmitter Case
    GM1962642Courtesy of GENERAL MOTORS CORP.
  2. Marry both halves of the transmitter case (1, 2).
  3. Close the transmitter case, listen for an audible click to confirm fitting.

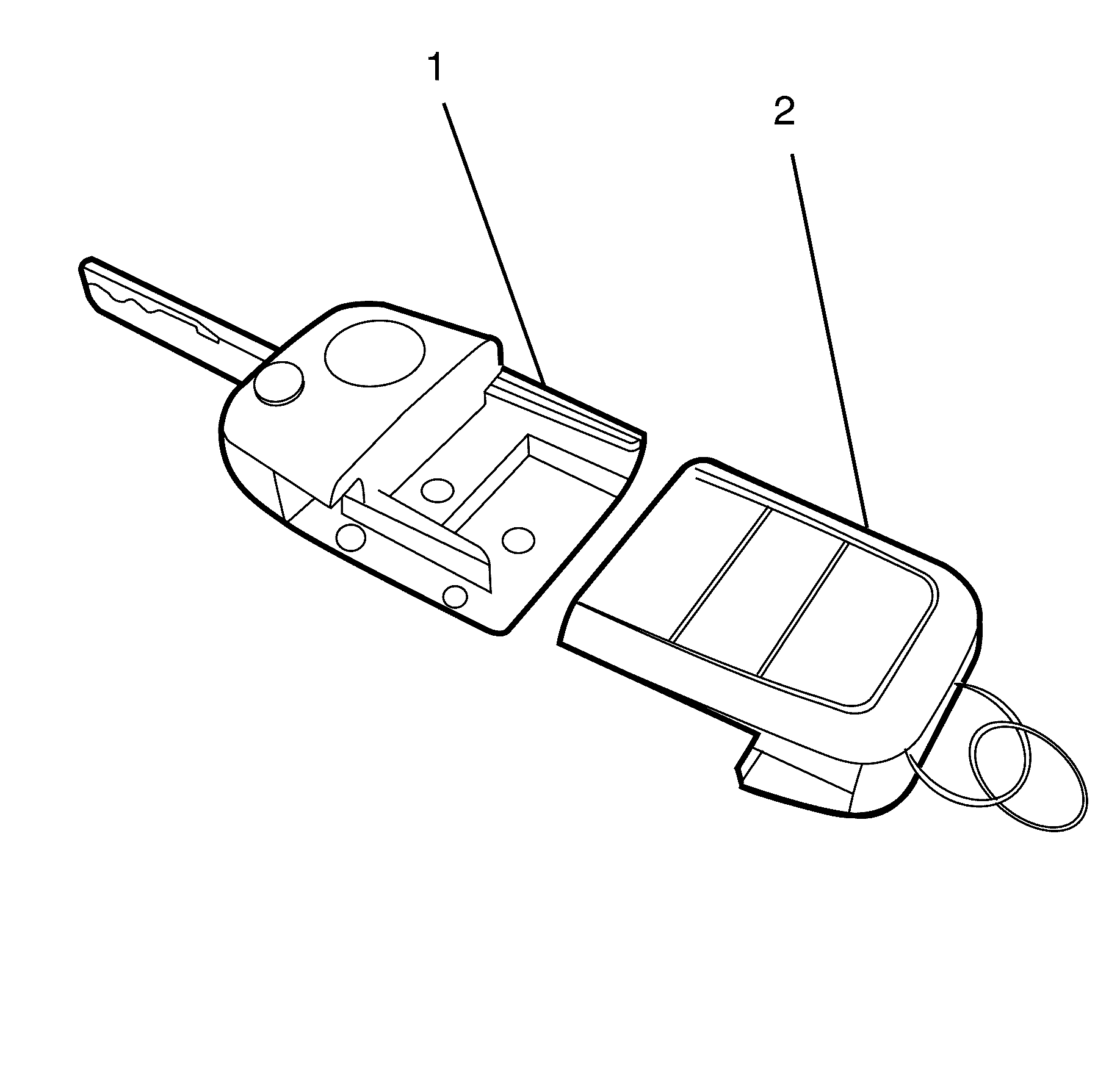

    4. Fig 3: Locating Remote & Key Half
    GM1962646Courtesy of GENERAL MOTORS CORP.
  4. Marry the two halves (1 and 2) of the key by firmly pushing the two together, listen for an audible click to confirm fitting
  5. Synchronize the transmitter. Refer to Remote Control Door Lock Transmitter Programming .
