Removal Procedure

IMPORTANT:

Replacement of the transmitter battery should only be carried out by your authorized dealer.

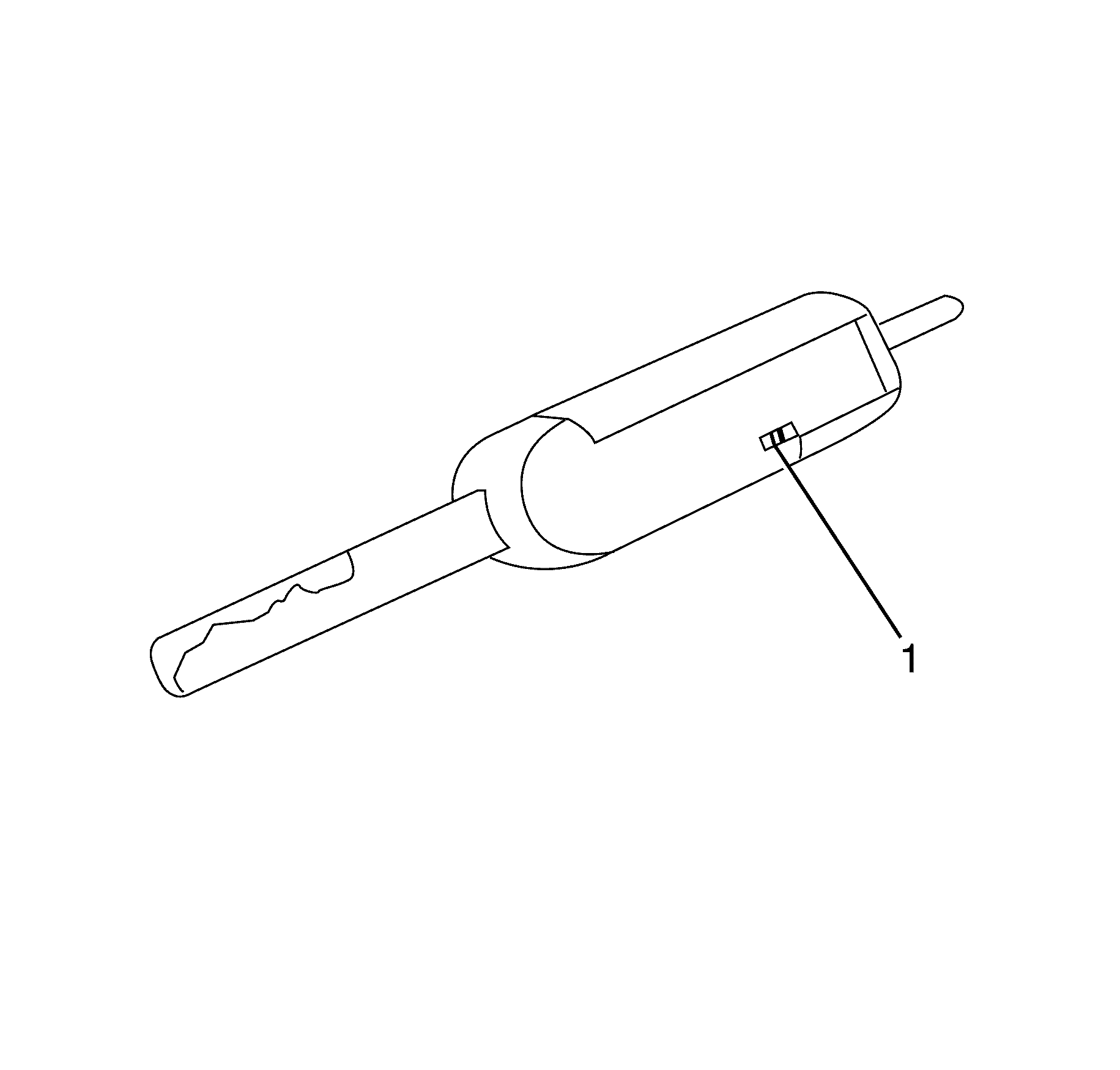

Fig 1: Locating Key Halves

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Remote & Key Half

Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

Do NOT twist the tool as damage to the key retaining tang will occur.

IMPORTANT:

While inserting the tool, push the remote half (2) away from the key half (1).

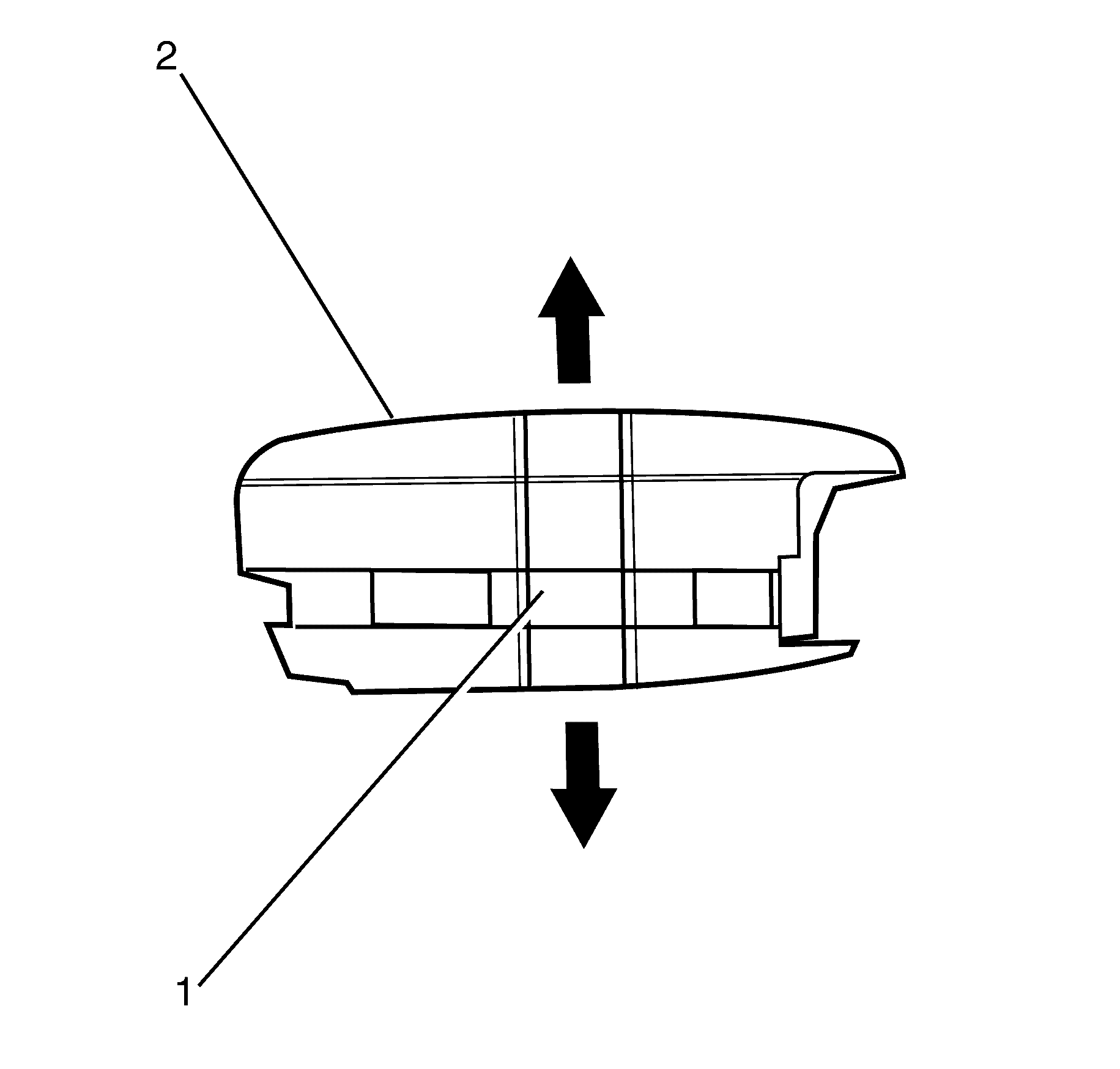

Fig 3: Locating Halves Of Transmitter Case

Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

Replace the battery when the range of the transmitter decreases to less than 7 m (23 ft).

Insert a suitable tool between the two halves (1) of the transmitter case (2), as shown in illustration.
Separate the two halves of the transmitter case (2).

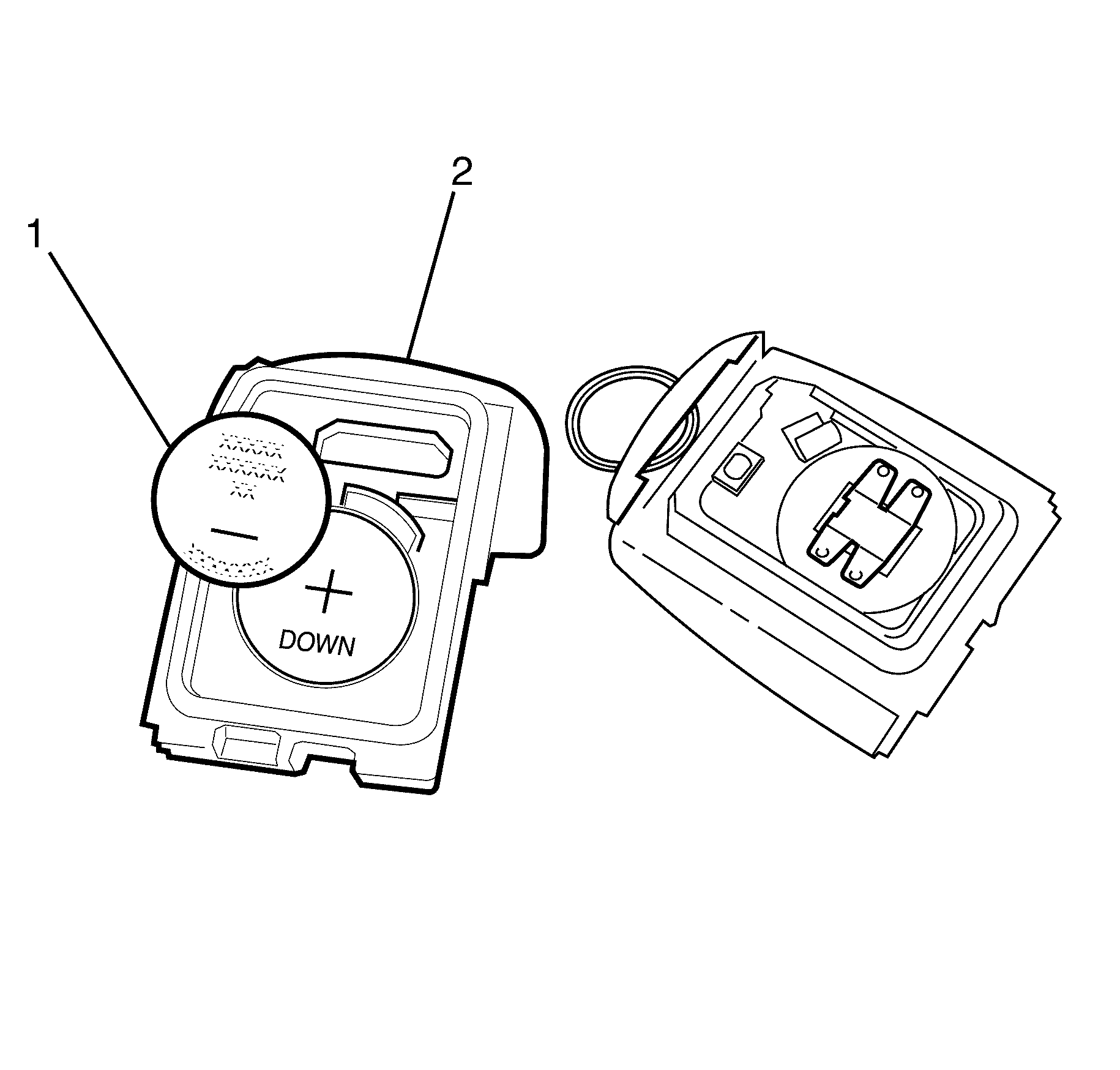

Fig 4: Identifying Transmitter Battery & Case

Courtesy of GENERAL MOTORS CORP.
