Installation Procedure

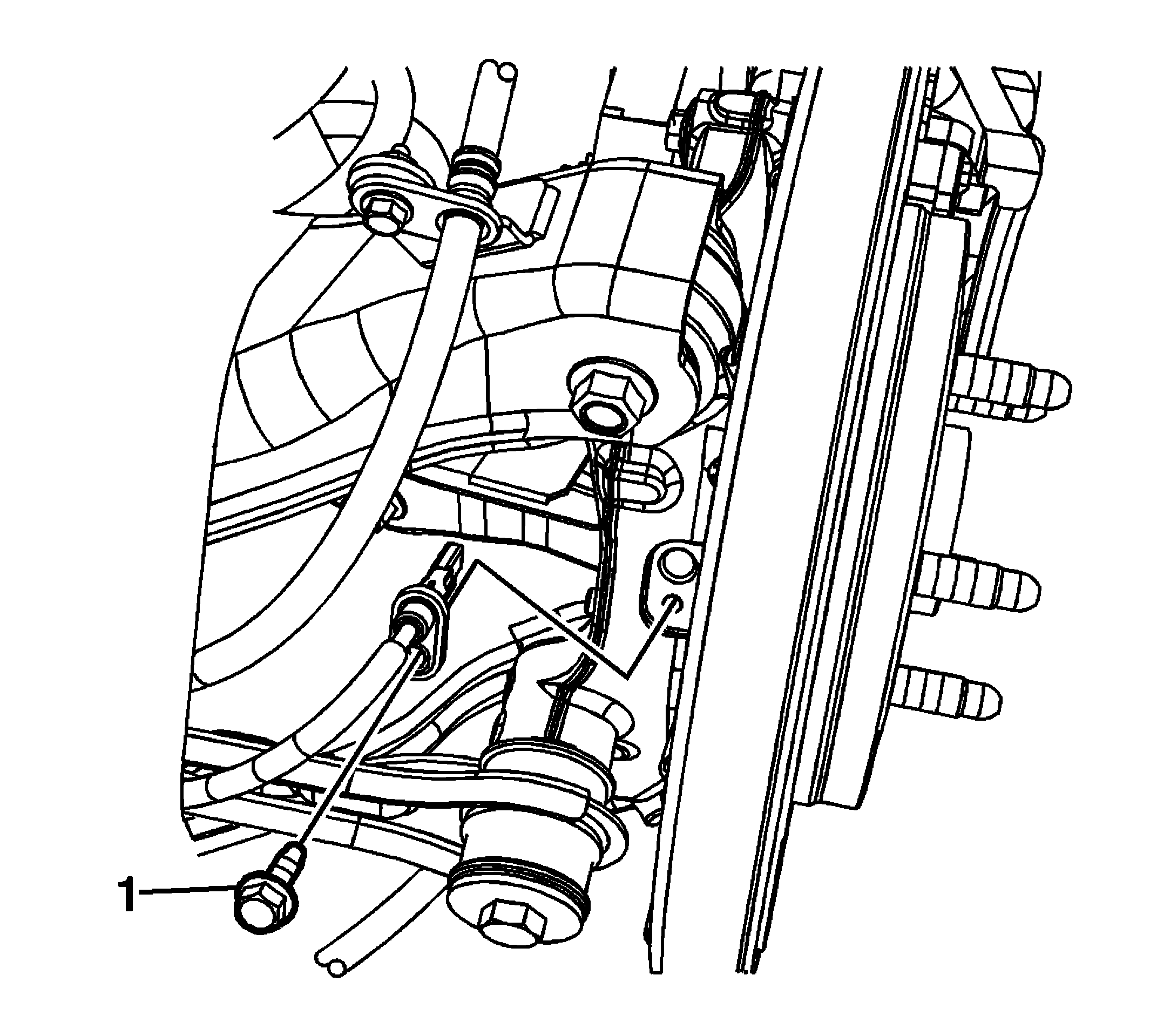

    Fig 1: Wheel Speed Sensor & Bolt
    GM2196958Courtesy of GENERAL MOTORS CORP.
  1. Install the wheel speed sensor assembly to the suspension knuckle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 7 N.m (62 lb in).

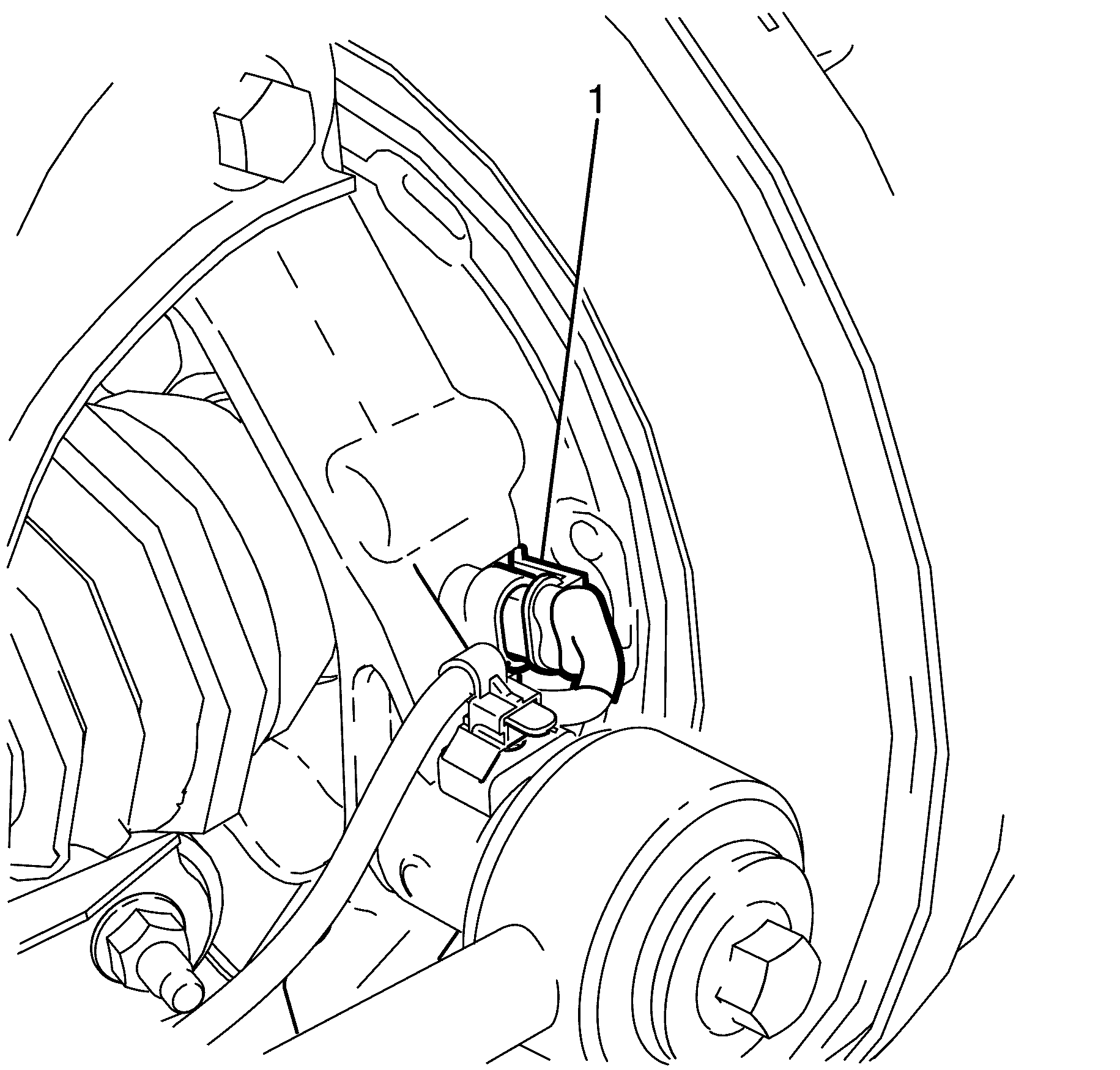

    3. Fig 2: Identifying Wheel Speed Sensor Jumper Harness Electrical Connector
    GM1943660Courtesy of GENERAL MOTORS CORP.
  3. Connect the rear wheel speed sensor electrical connector (1).
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
