Installation Procedure

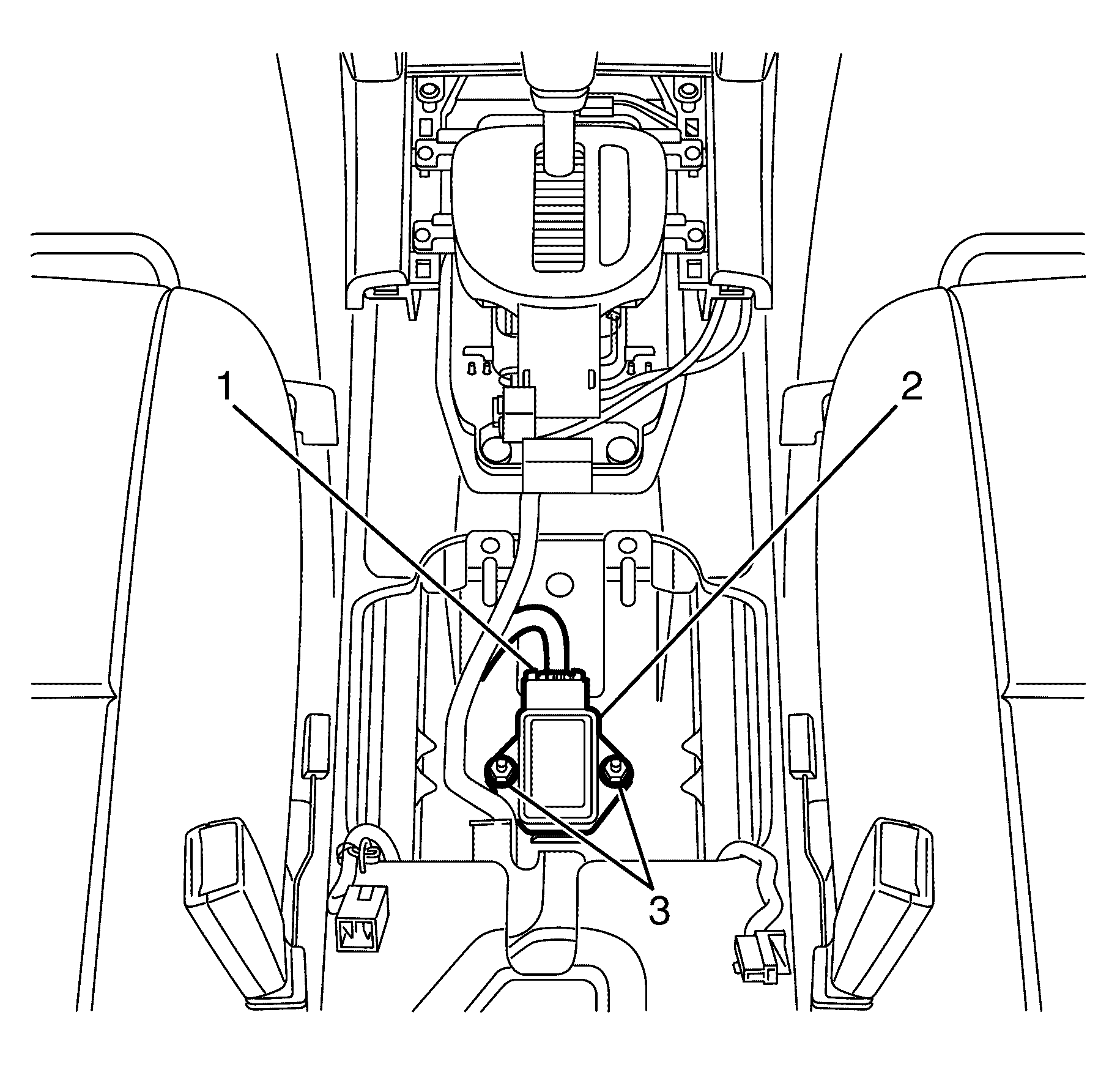

    Fig 1: Yaw Rate Sensor/Lateral Accelerometer Sensor Electrical Connector
    GM1943689Courtesy of GENERAL MOTORS CORP.
  1. Install the yaw rate sensor/lateral accelerometer sensor (2) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the yaw rate sensor/lateral accelerometer sensor to yaw rate sensor/lateral accelerometer mounting bracket retaining nuts (3) and tighten to 9 N.m (80 lb in).
  3. Connect the yaw rate sensor/lateral accelerometer sensor electrical connector (1).
  4. Install the center console. Refer to Front Floor Console Replacement .
