HVAC Components

HVAC Components

Component Name Callout
M12 defrost Door Actuator 1
M46 Air Recirculation Door Actuator 2
K33 HVAC Control Module 3
M8 Blower Motor 4
K8 Blower Motor Control Module 5
M6R Air Temperature Door Actuator 6
M37 Mode Door Actuator 7

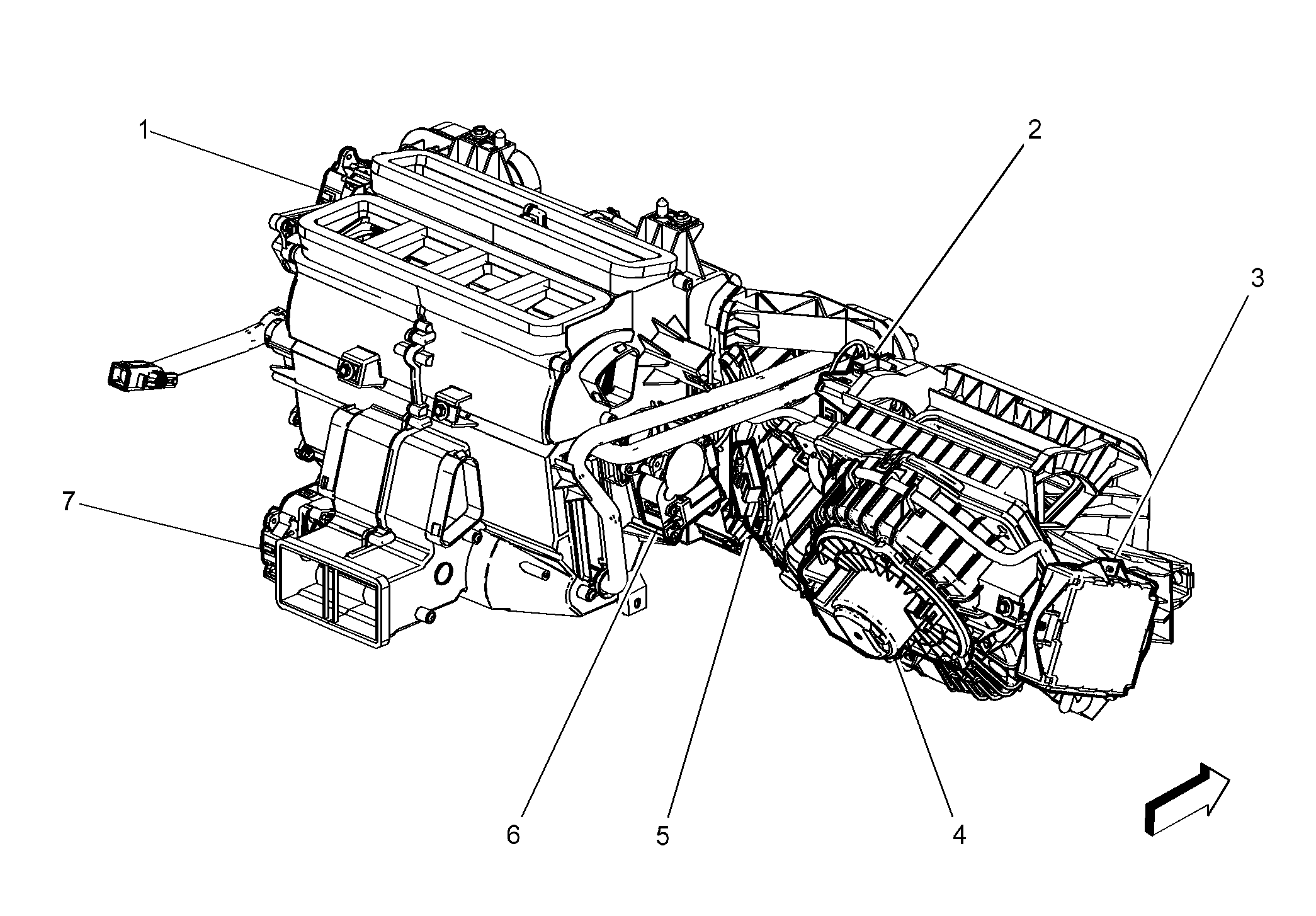

Fig 1: HVAC Components
GM2544555Courtesy of GENERAL MOTORS CORP.
