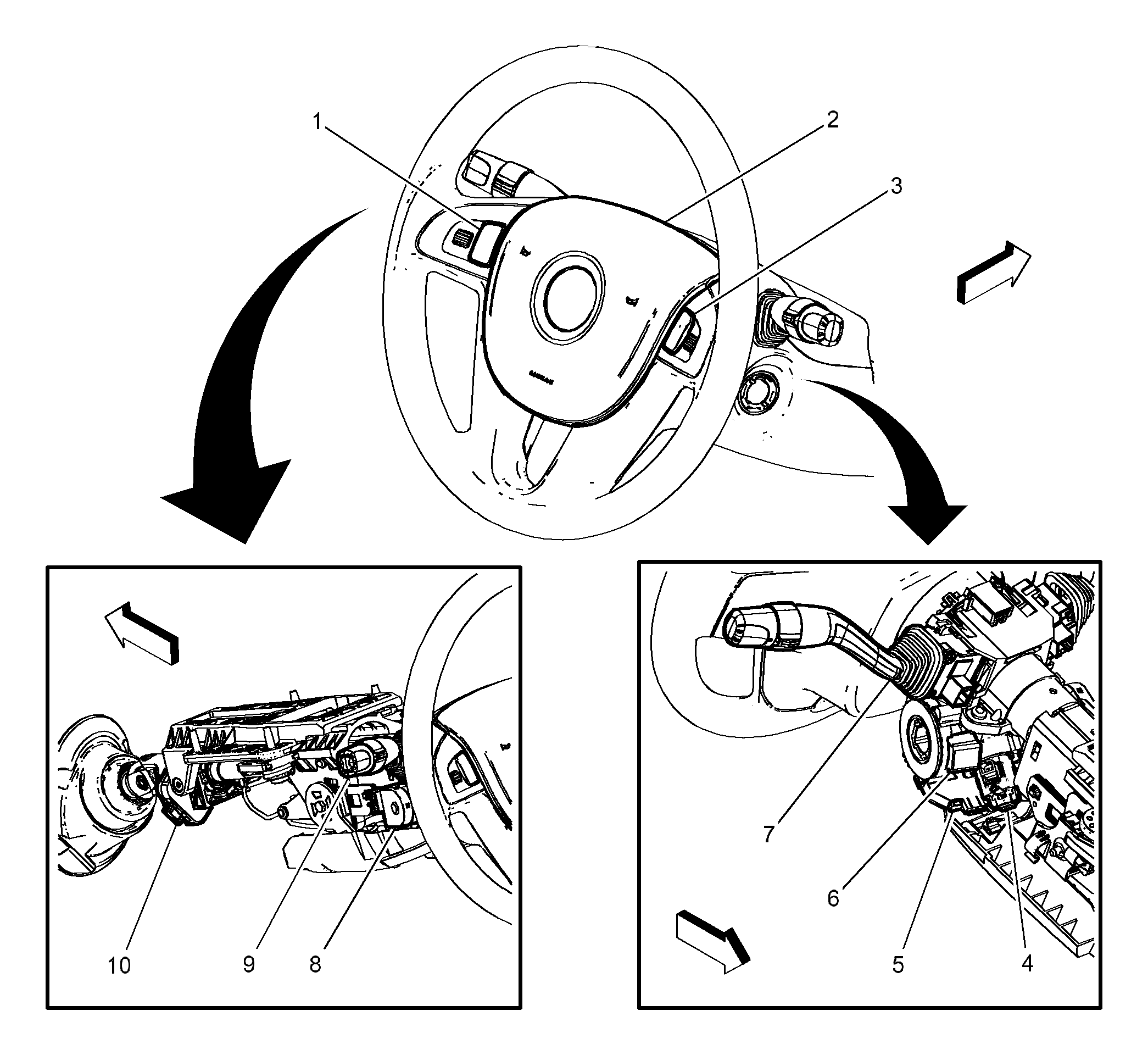

Steering Wheel and Column Components
Steering Wheel and Column Components
| Component Name | Callout |
|---|---|
| S70L Steering Wheel Controls Switch - Left | 1 |
| F107 Steering Wheel Air Bag | 2 |
| S70R Steering Wheel Controls Switch - Right | 3 |
| K89 Immobilizer Control Module | 4 |
| M93 Ignition Cylinder Lock Control Solenoid Actuator | 5 |
| E47 Ignition Lock Cylinder Lamp | 6 |
| S82 Windshield Wiper/Washer Switch | 7 |
| S39 Ignition Switch | 8 |
| S78 Turn Signal/Multi-Function Switch | 9 |
| B99 Steering Wheel Angle Sensor | 10 |
