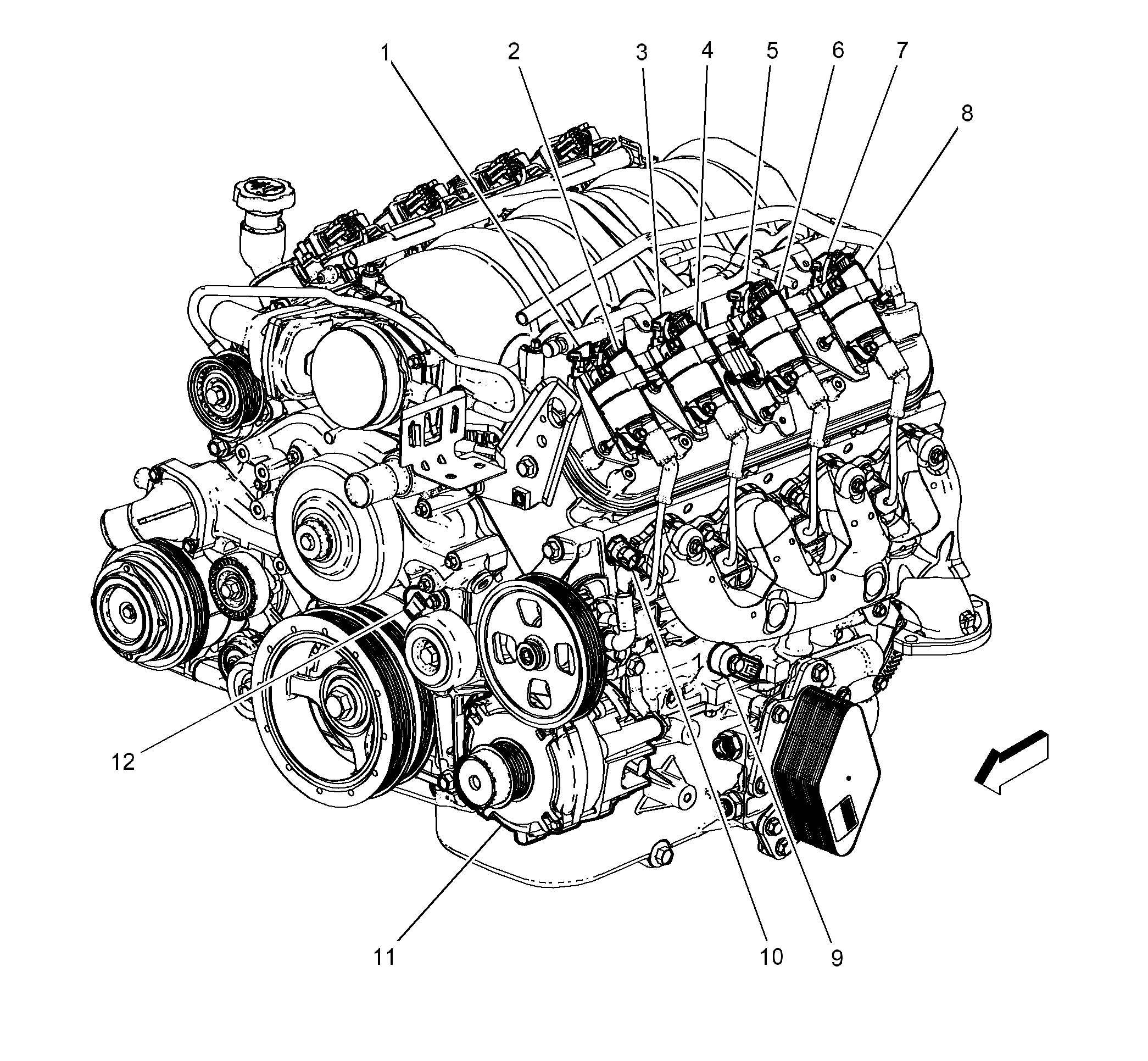

Left Front of the Engine Components
Left Front of the Engine Components
| Component Name | Callout |
|---|---|
| Q17A Fuel Injector 1 | 1 |
| T8A Ignition Coil 1 | 2 |
| Q17C Fuel Injector 3 | 3 |
| T8C Ignition Coil 3 | 4 |
| Q17E Fuel Injector 5 | 5 |
| T8E Ignition Coil 5 | 6 |
| Q17G Fuel Injector 7 | 7 |
| T8G Ignition Coil 7 | 8 |
| B68A Knock Sensor 1 | 9 |
| B34 Engine Coolant Temperature Sensor | 10 |
| G13 Generator | 11 |
| B23 Camshaft Position Sensor | 12 |
