Installation Procedure

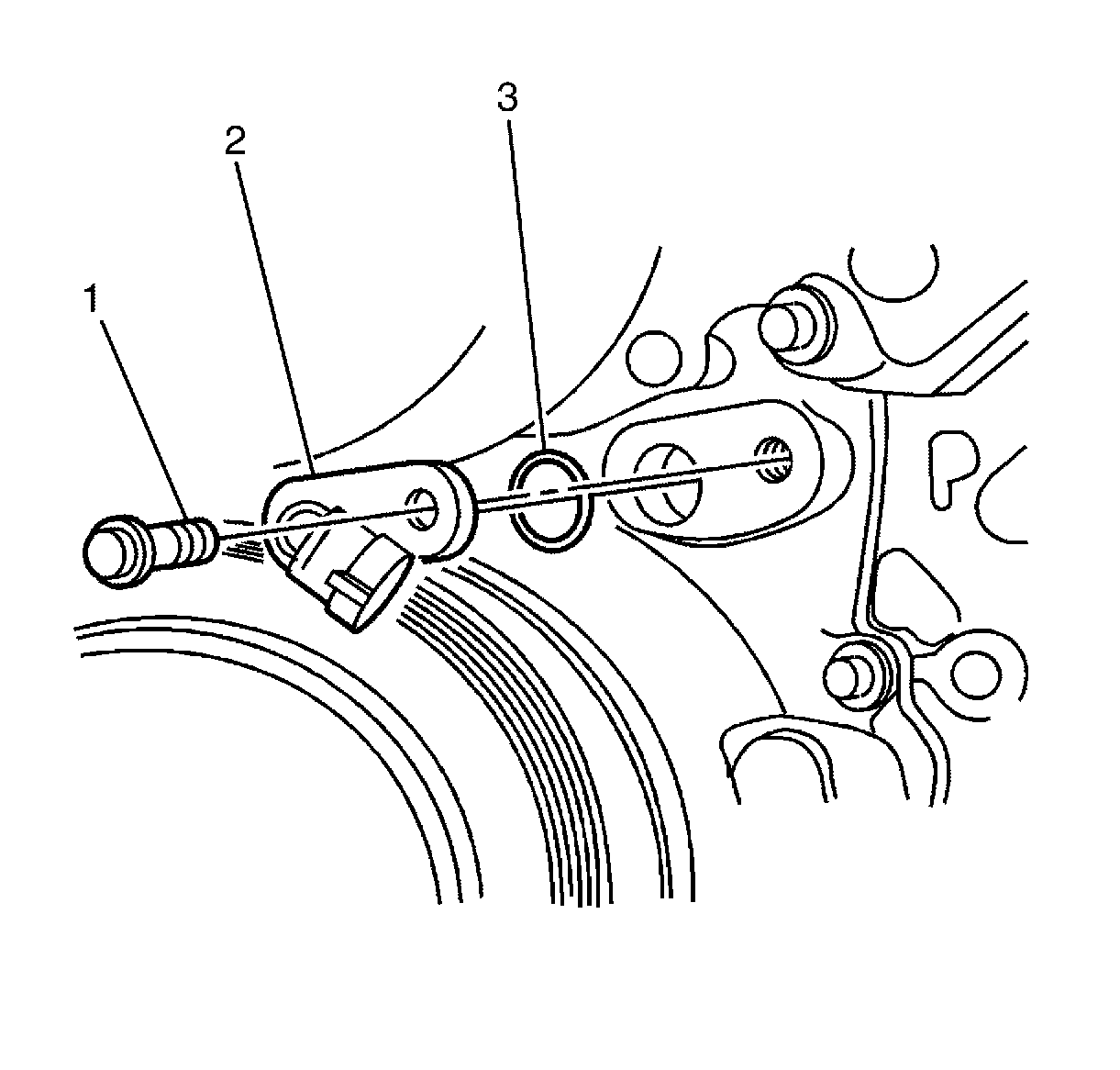

    Fig 1: Identifying CMP Sensor To Engine Front Cover Retaining Bolt
    GM1950759Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Install a NEW O-ring to the camshaft sensor.
    • Before installing the camshaft sensor, apply a small amount of clean motor oil to the O-ring (3).
  1. Install a NEW O-ring (3) to the CMP sensor.
  2. Install the CMP sensor (2) to the engine front cover.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the CMP sensor to engine front cover retaining bolt (1) and tighten to 9 N.m (80 lb in).

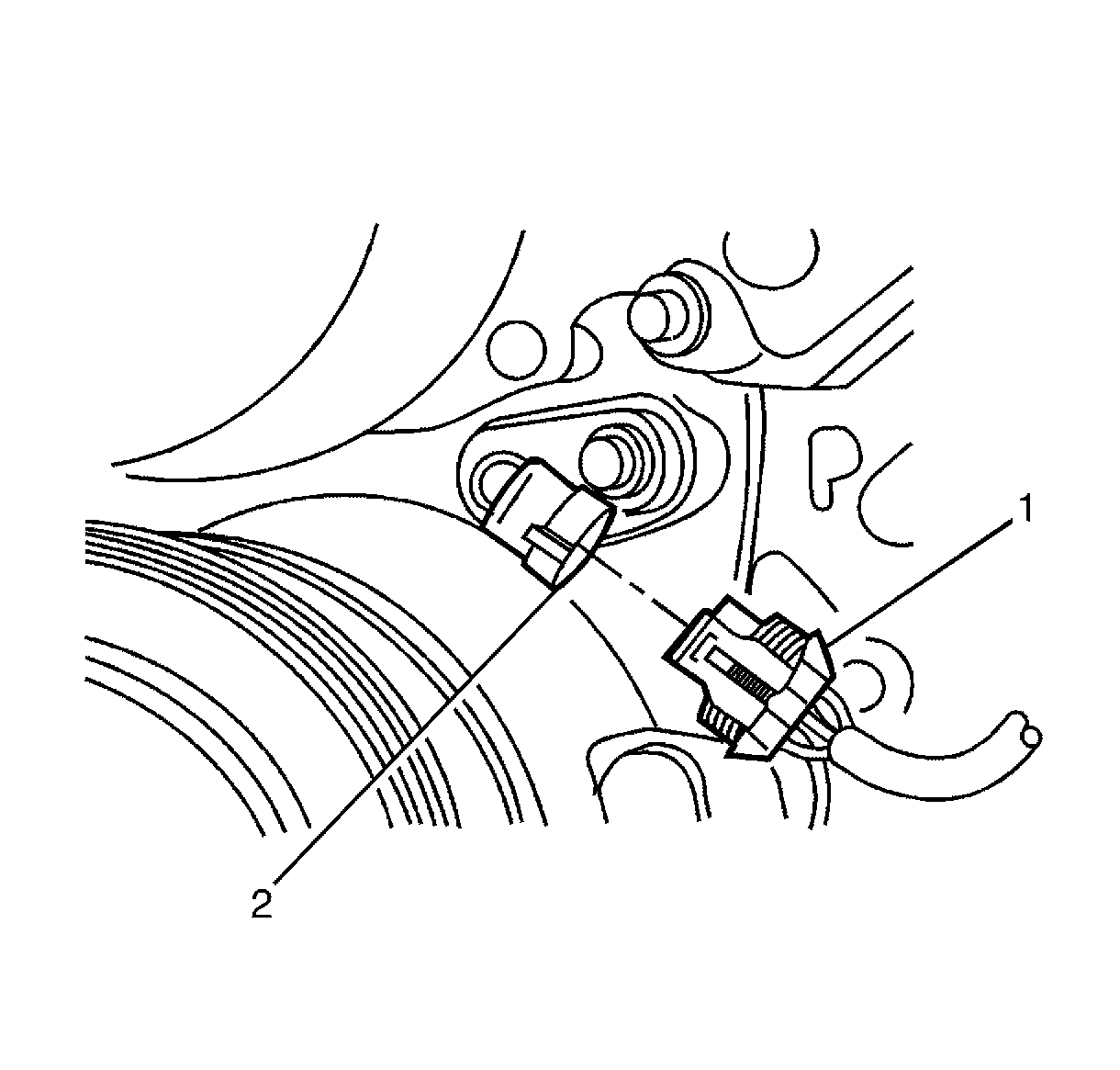

    4. Fig 2: Identifying Camshaft Position (CMP) Sensor Electrical Connector
    GM1950789Courtesy of GENERAL MOTORS CORP.
  4. Connect the CMP sensor electrical connector (1) to wiring harness.
  5. Connect the battery ground cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  6. If re-programming is required, refer to Control Module References .
