Installation Procedure

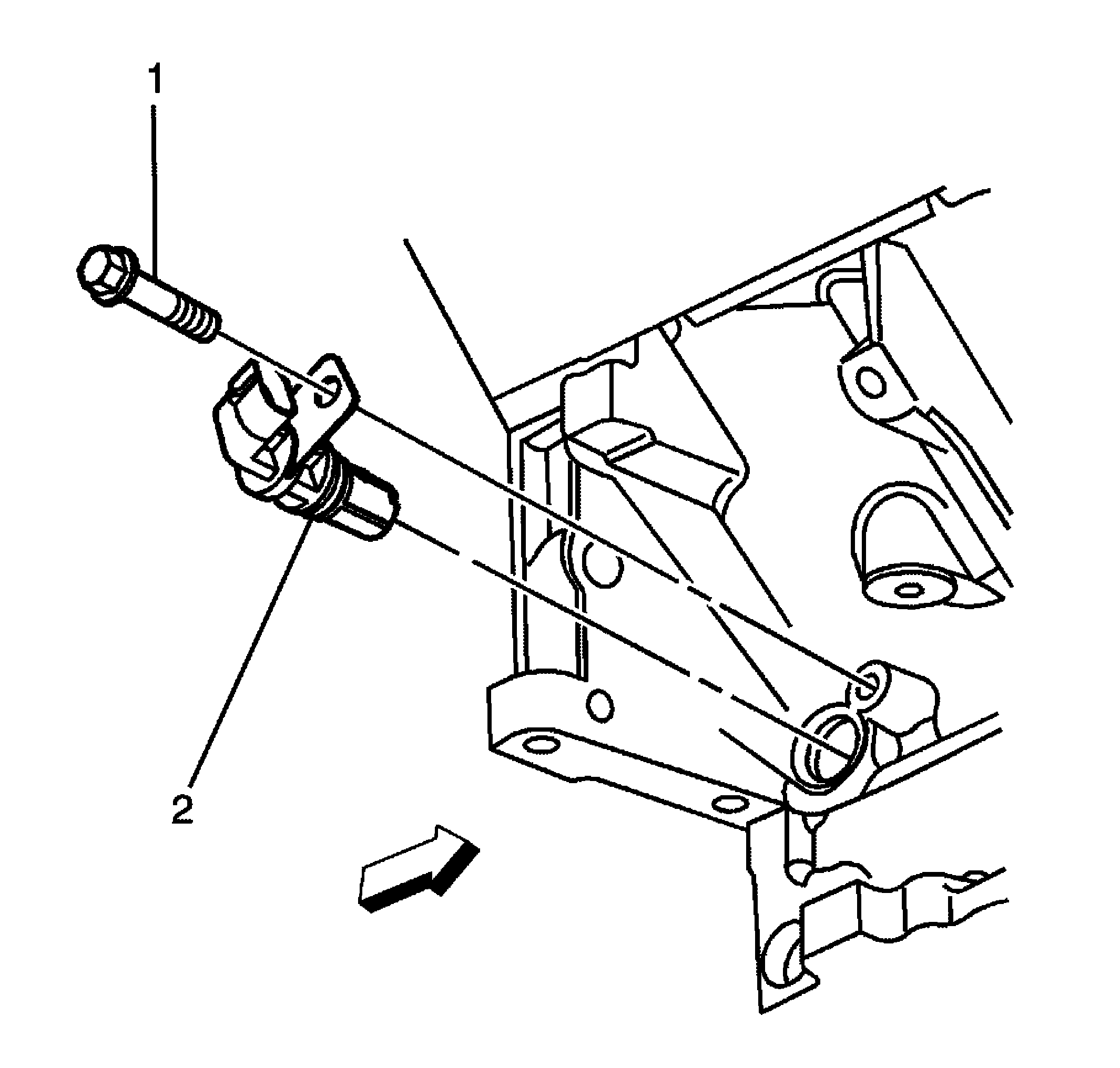

    Fig 1: Identifying CKP Sensor To Engine Block Retaining Bolt
    GM1950752Courtesy of GENERAL MOTORS CORP.
  1. Install the CKP sensor (2) to the engine block.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the CKP sensor to engine block retaining bolt (1) and tighten to 25 N.m (18 lb ft).

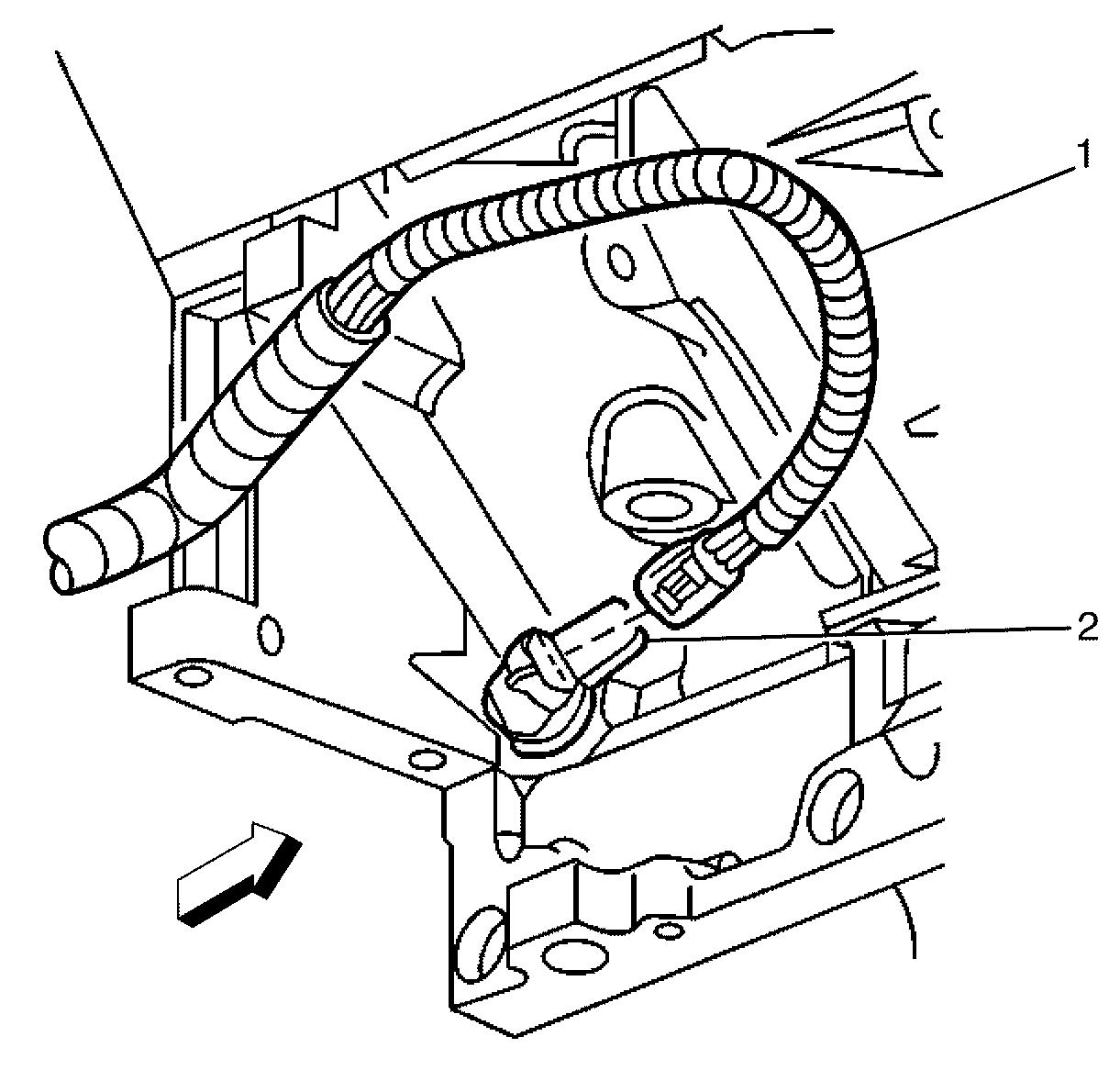

    3. Fig 2: Identifying CKP Sensor Electrical Connector
    GM1954045Courtesy of GENERAL MOTORS CORP.
  3. Connect the CKP sensor electrical connector (2) to the wiring harness (1).
  4. Install the starter. Refer to Starter Replacement .
  5. Lower the vehicle.
  6. Connect the battery ground cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  7. If re-programming is required. Refer to Control Module References .
