Installation Procedure

CAUTION:

Replacement components must be the correct part number for the application. Components requiring the use of the thread locking compound, lubricants, corrosion inhibitors, or sealants are identified in the service procedure. Some replacement components may come with these coatings already applied. Do not use these coatings on components unless specified. These coatings can affect the final torque, which may affect the operation of the component. Use the correct torque specification when installing components in order to avoid damage.

CAUTION:

Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.

Coat the ECT sensor threads with sealer or the equivalent.

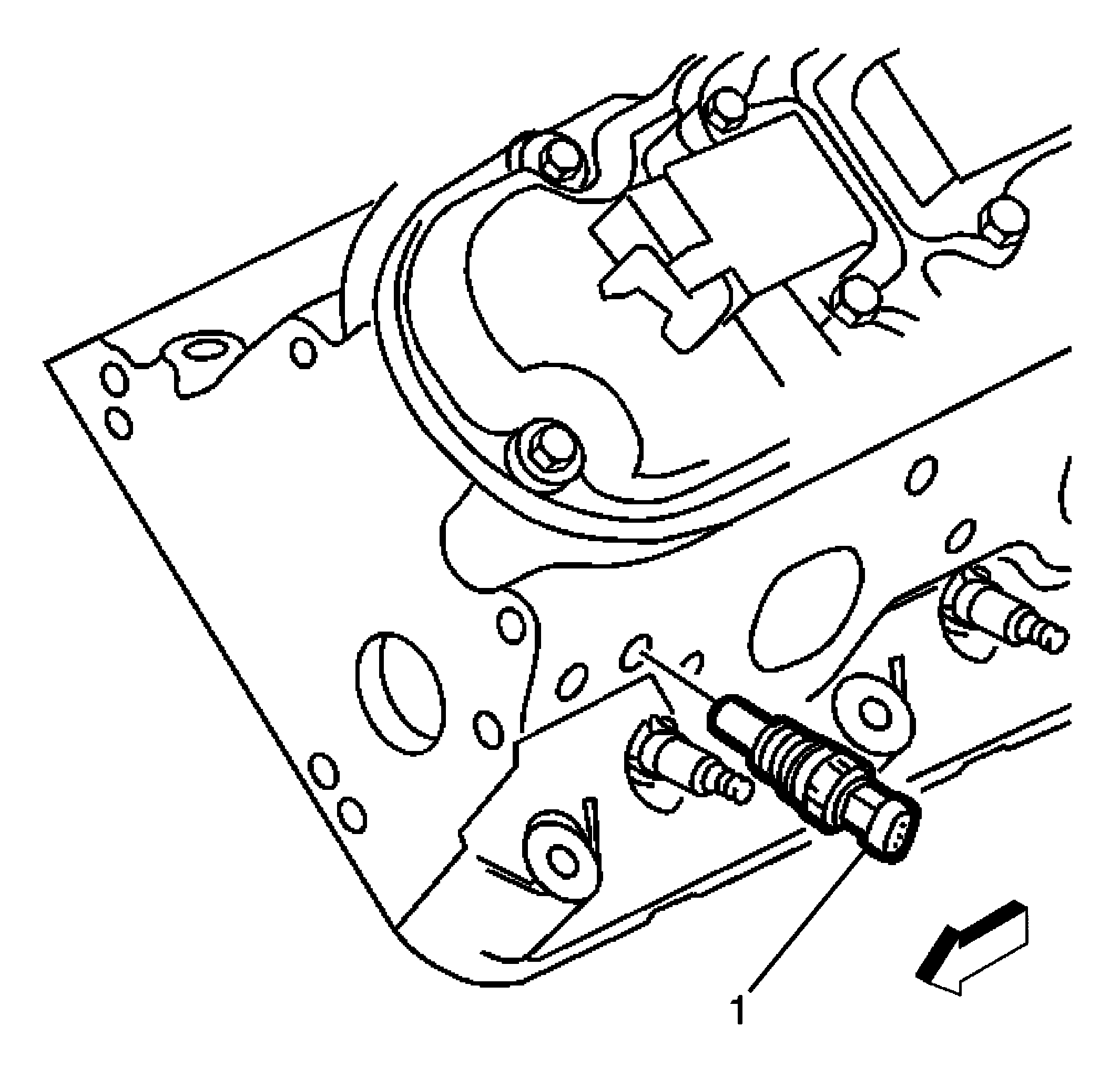

Fig 1: Identifying ECT Sensor

Courtesy of GENERAL MOTORS CORP.

CAUTION:

Refer to Fastener Caution .

Install the ECT sensor (1) to the cylinder head and tighten to 20 N.m (15 lb ft).

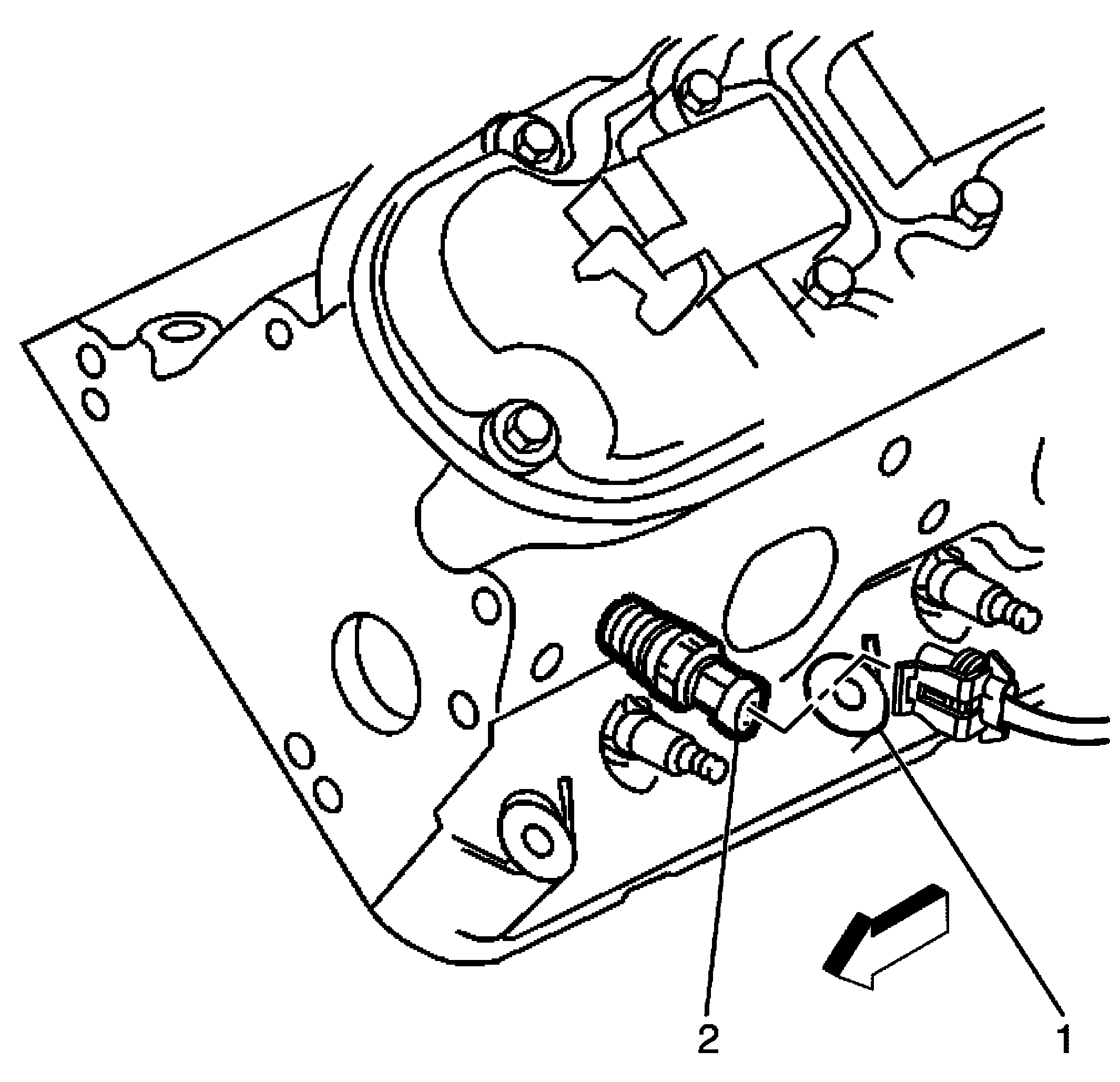

Fig 2: Identifying ETC Wiring Harness Connector

Courtesy of GENERAL MOTORS CORP.

Connect the ECT wiring harness connector (1) ECT sensor.
Refill the engine coolant. Refer to Cooling System Draining and Filling .
