Fuel Pressure Sensor Replacement

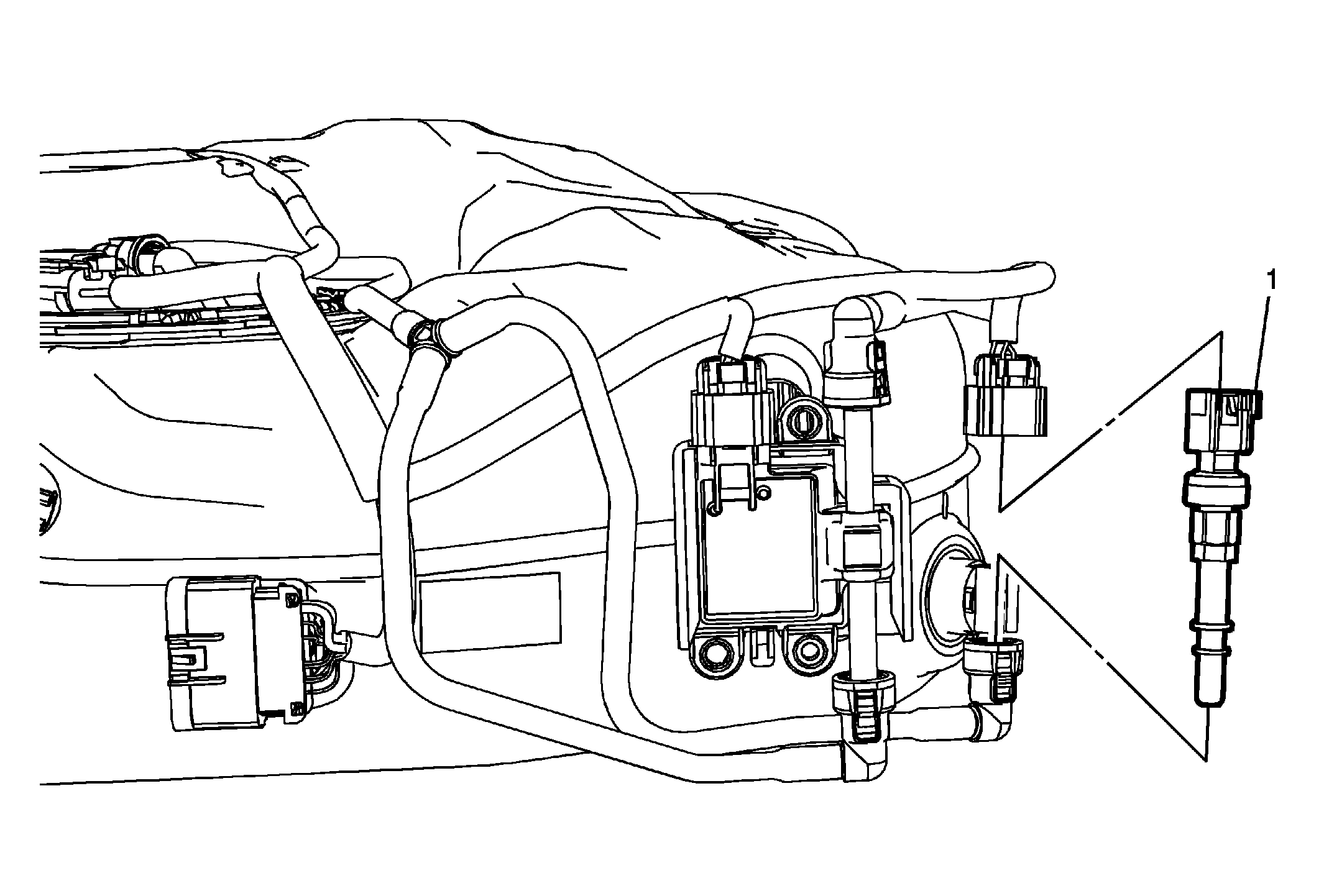

Fig 1: Fuel Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Relieve the fuel system pressure. Refer to Fuel Pressure Relief . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the fuel line connectors. Refer to Plastic Collar Quick Connect Fitting Service .
1	Fuel Pressure Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the fuel line connectors. Refer to Plastic Collar Quick Connect Fitting Service .

Fuel Pressure Sensor
Procedure
Disconnect the electrical connector.
