Fuel Pump Flow Control Module Replacement

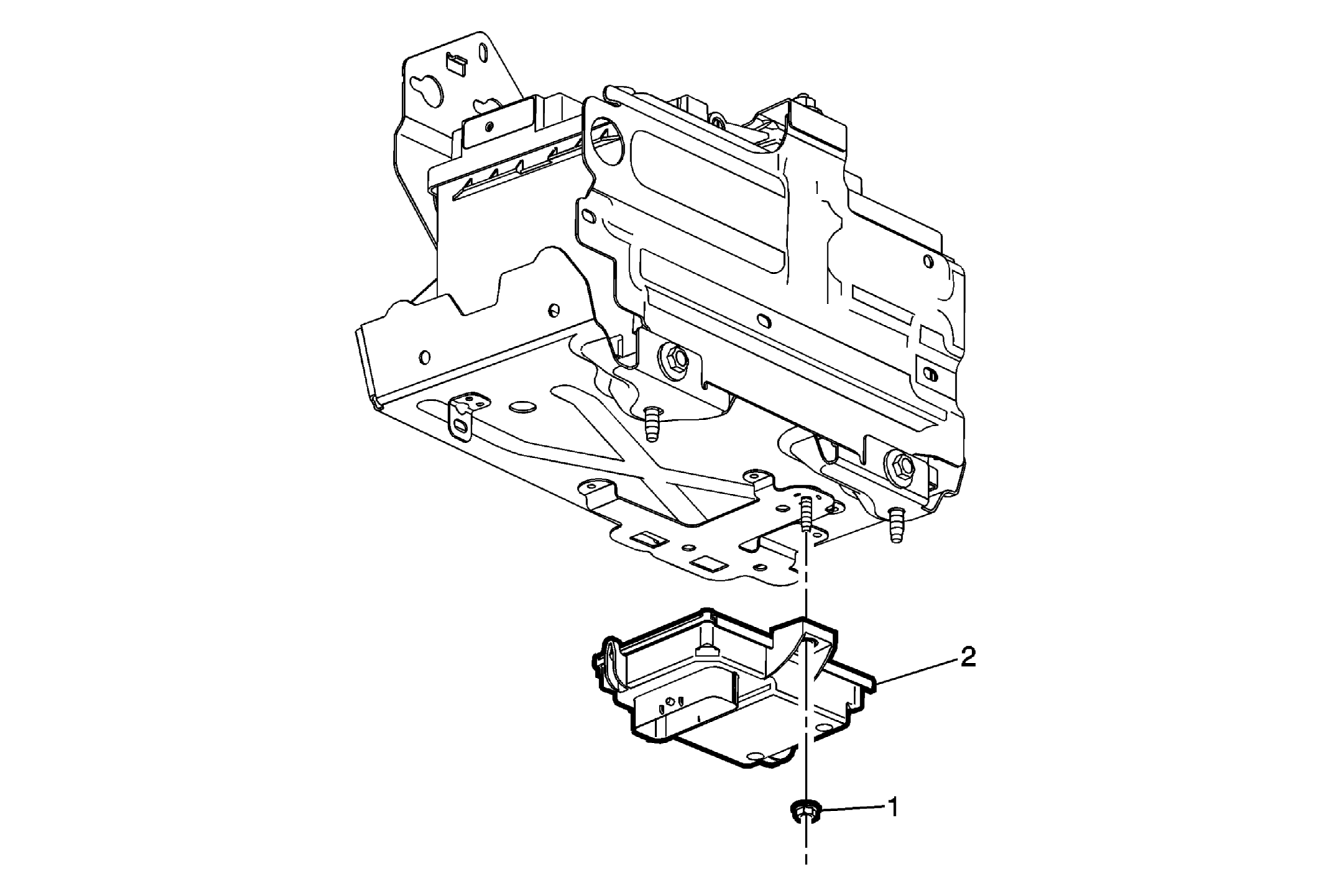

Fig 1: Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the battery tray. Refer to Battery Tray Replacement .
1	Fuel Pump Flow Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m(80 lb in)
2	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the control module. Refer to Service Programming System (SPS) .

Callout

Component Name

Preliminary Procedure
Remove the battery tray. Refer to Battery Tray Replacement .

Fuel Pump Flow Control Module Fastener

CAUTION:

Tighten
9 N.m(80 lb in)

Fuel Pump Flow Control Module

Procedure

Disconnect the electrical connector.
If replacing, reprogram the control module. Refer to Service Programming System (SPS) .
