Removal Procedure

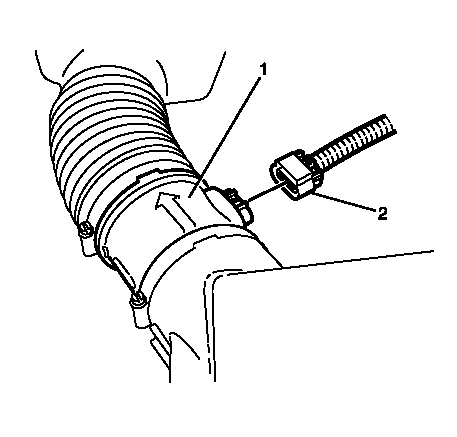

    Fig 1: Identifying Mass Air Flow (MAF)/Air Intake Temperature (IAT) Sensor & Wiring Harness Connector
    GM1950766Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the mass air flow (MAF)/air intake temperature (IAT) wiring harness connector (2) to mass air flow (MAF)/air intake temperature (IAT) sensor (1).

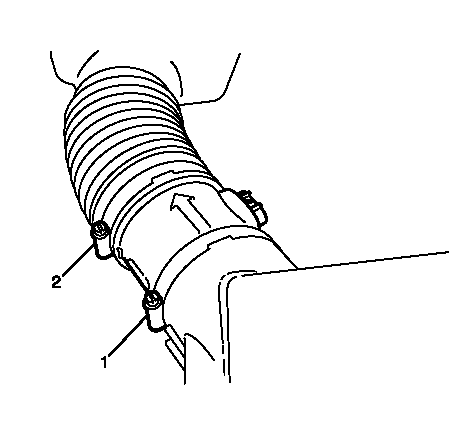

    2. Fig 2: Identifying Upper Air Cleaner Body & Air Intake Duct To MAF/IAT Sensor Retaining Clamps
    GM1950770Courtesy of GENERAL MOTORS CORP.
  2. Loosen the air intake duct to MAF/IAT sensor retaining clamp (2).
  3. Loosen the upper air cleaner body to MAF/IAT sensor retaining clamp (1).
  4. Remove the air intake duct from the mass air flow MAF/IAT sensor.
  5. Remove the MAF/IAT sensor from the upper air cleaner body.
