Primary Fuel Level Sensor Replacement: Installation

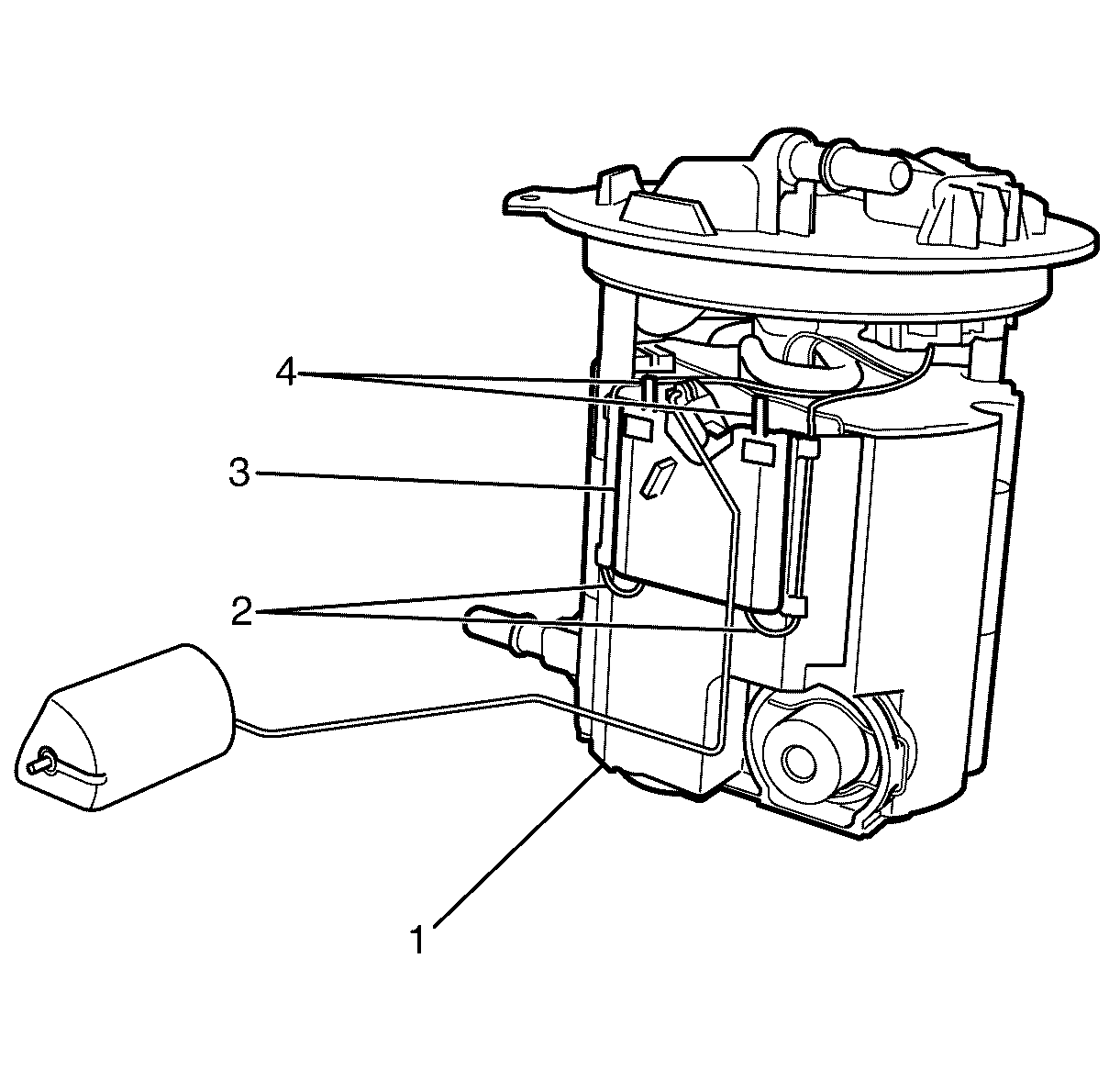

Fig 1: Primary Fuel Level Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE:

Do not damage the wiring (2).

Connect the wiring (2) to the primary fuel level sensor (3).
Locate and install the primary fuel level sensor (3) to the to the primary fuel tank module (1).

NOTE:

Listen for an audible click to confirm correct installation of the primary fuel level sensor.

Apply suitable downward pressure on the primary fuel level sensor (3).
Attach the wiring (2) to the primary fuel tank module wiring retainers.
Install the primary fuel tank module assembly to the fuel tank. Refer to Primary Fuel Tank Module Replacement .
Install the fuel tank assembly to the vehicle. Refer to Fuel Tank Replacement .
