Installation Procedure

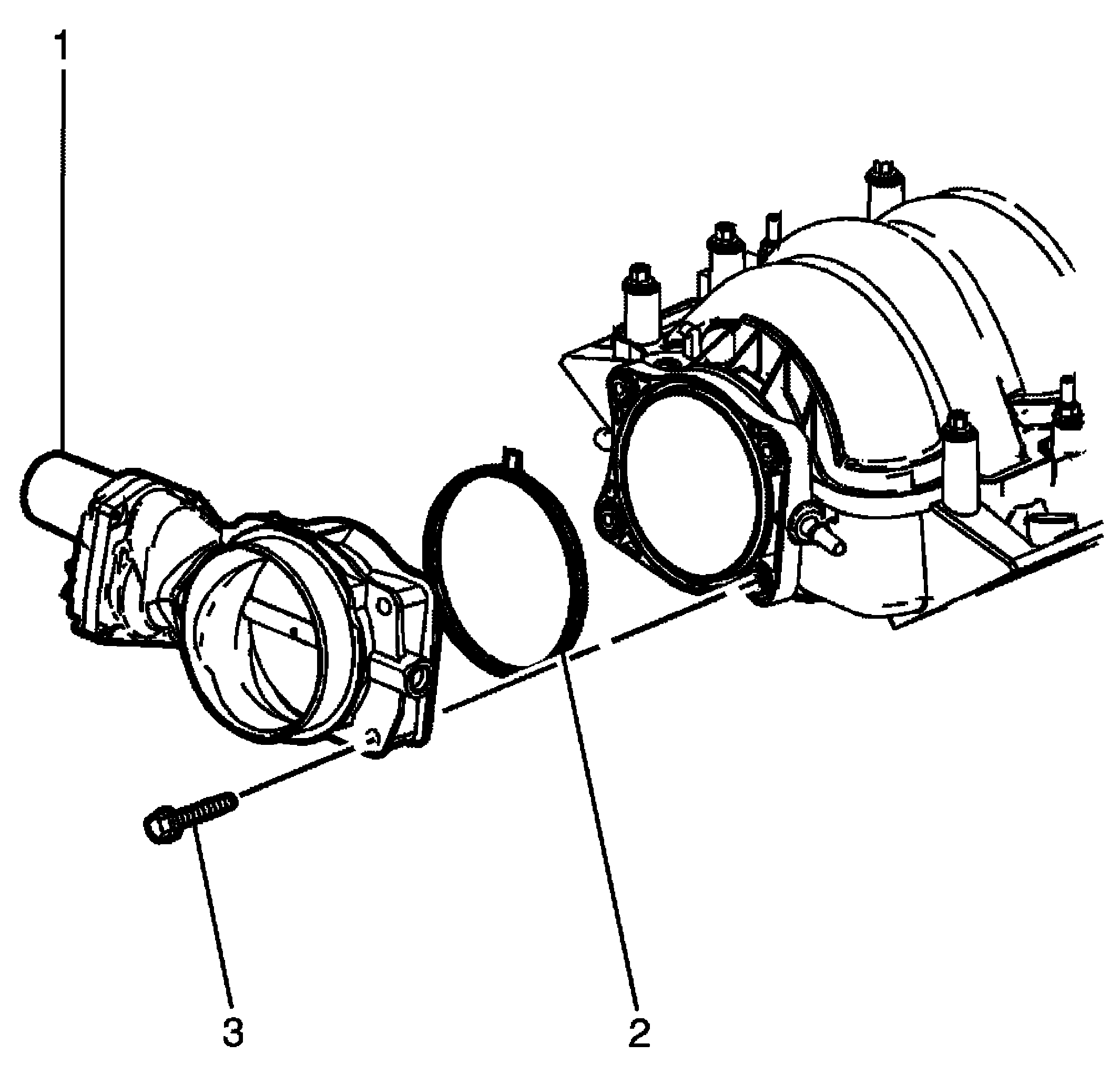

    Fig 1: Identifying Throttle Body To Intake Manifold Retaining Bolts
    GM1950738Courtesy of GENERAL MOTORS CORP.
    NOTE:

    DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.

  1. Install a new throttle body to intake manifold gasket (2). Align the locating tab of the gasket with the notch in the manifold.
  2. Install the throttle body (1) to the intake manifold.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the throttle body to intake manifold retaining bolts (3) and tighten to 12 N.m (106 lb in).
  4. Install the electrical wire harness connector from the throttle body.
  5. Install the air outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  6. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
