Installation Procedure

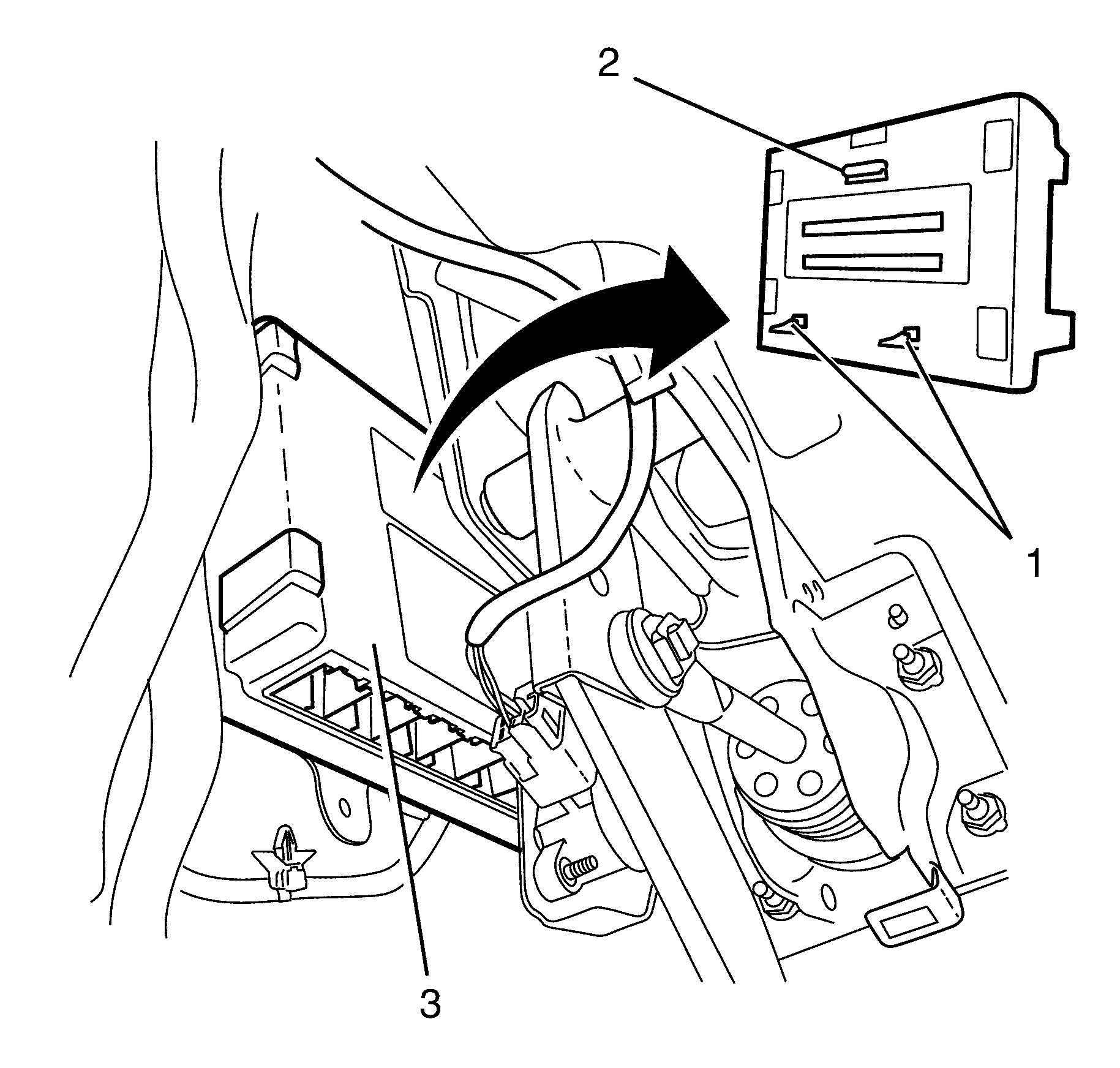

    Fig 1: Identifying BCM Upper & Lower Retaining Clips
    GM1955549Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Locate the upper retaining clip (2) and engage the lower retaining clips (1).

  1. Install the BCM and bracket assembly (3).

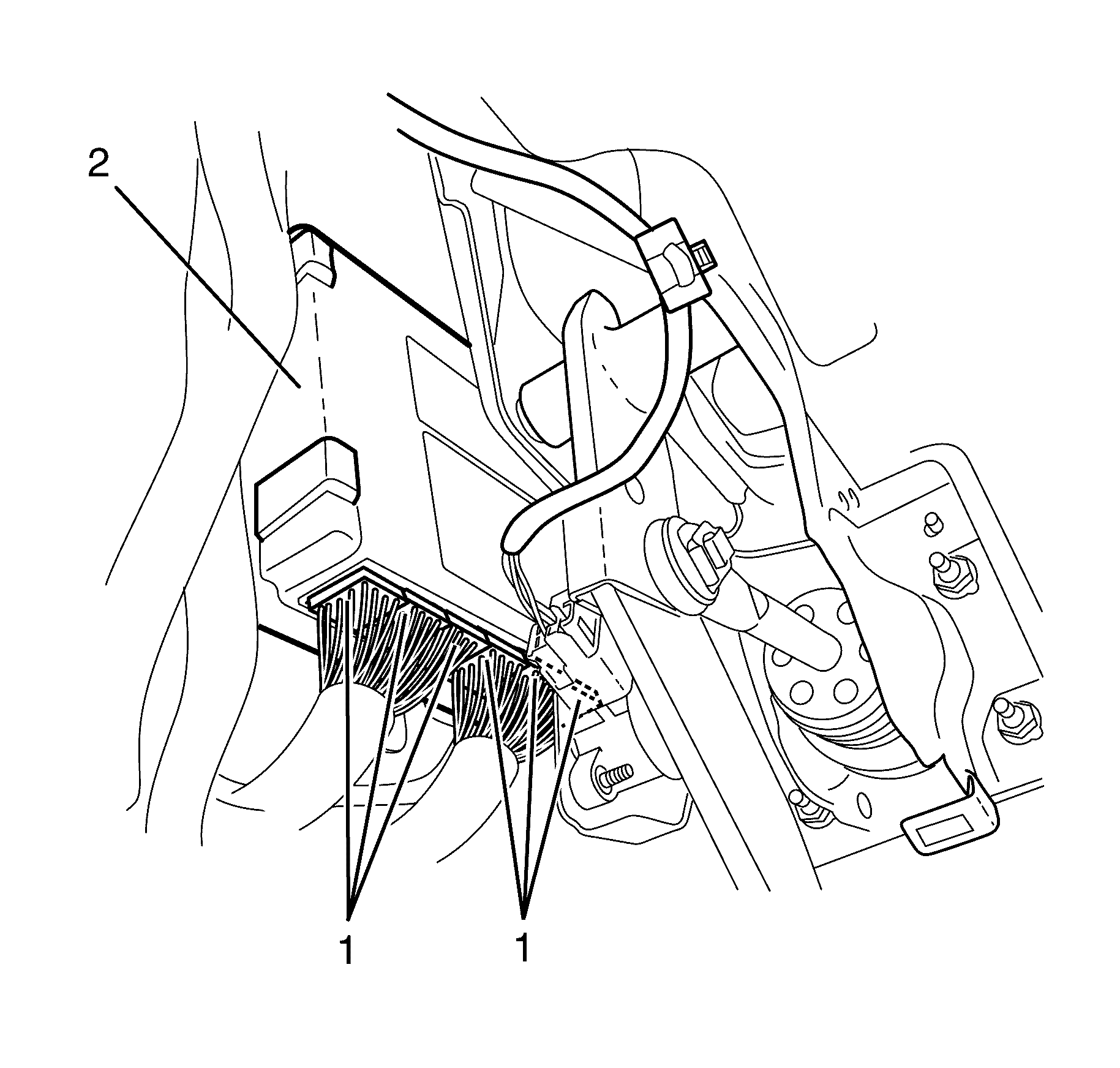

    2. Fig 2: Identifying BCM Electrical Connectors
    GM1955548Courtesy of GENERAL MOTORS CORP.
  2. Connect the body control module (BCM) electrical connectors (1) to the BCM (2).
  3. Install the left floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (LHD) .
    4. WARNING:

    Refer to SIR Warning .

  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  6. For programming and set up, refer to Control Module References .
