Subsystem References Wiring Schematics (1 of 3)

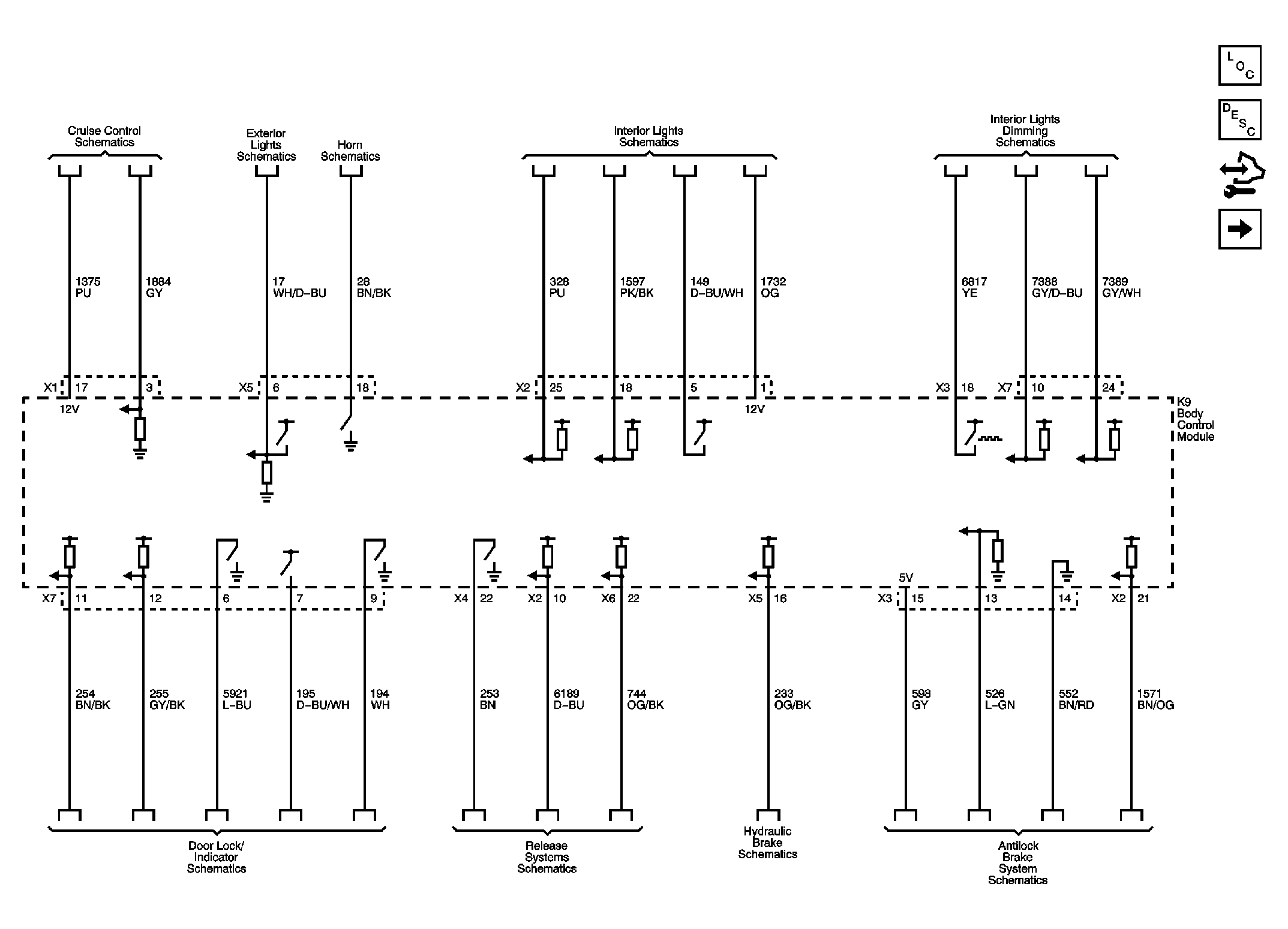

Fig 1: Subsystem References Wiring Schematic (1 of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
