Accessory Wakeup Serial Data Wiring Schematics

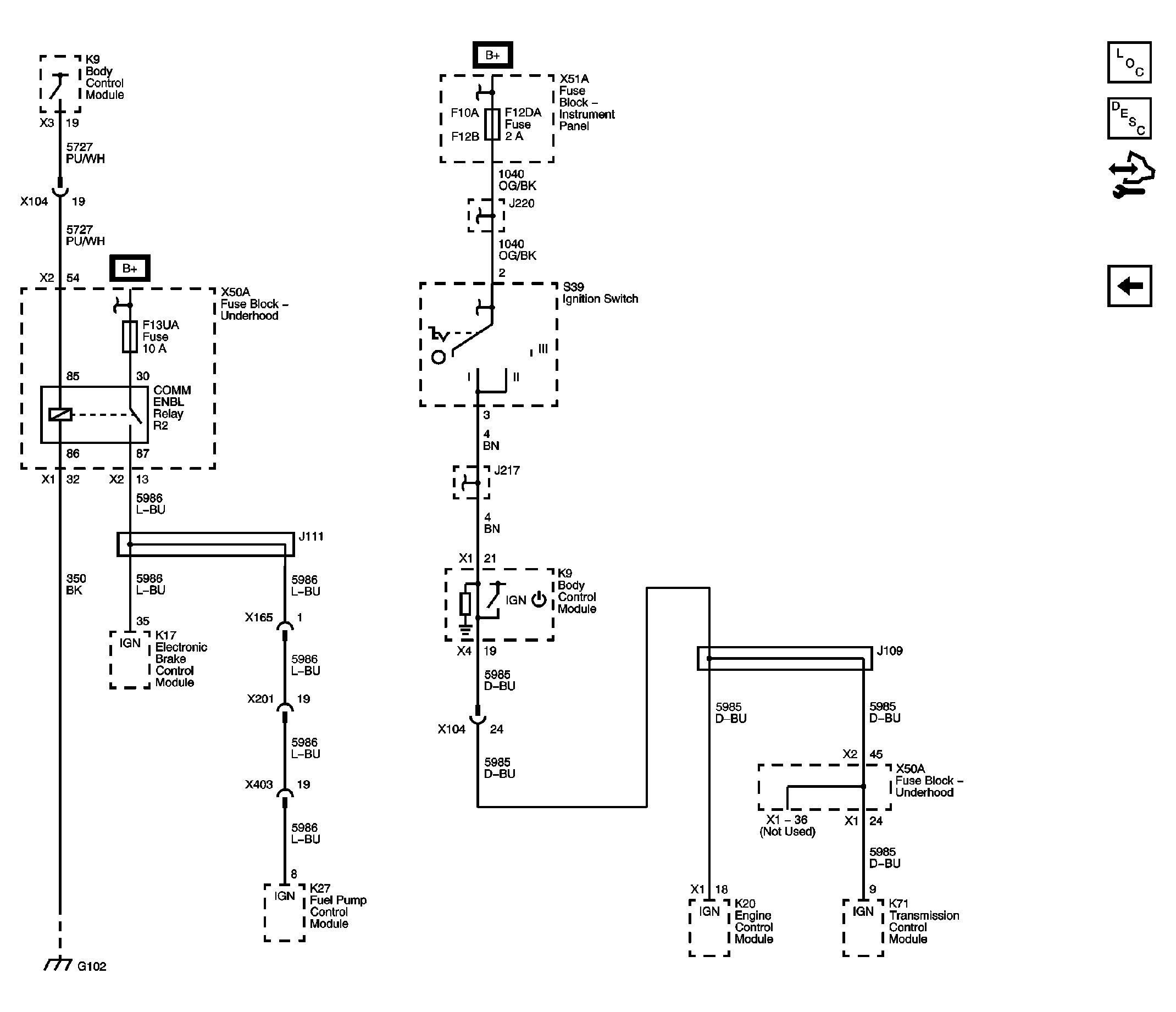

Fig 1: Accessory Wakeup Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
