Inflatable Restraint Front Passenger Presence Module Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

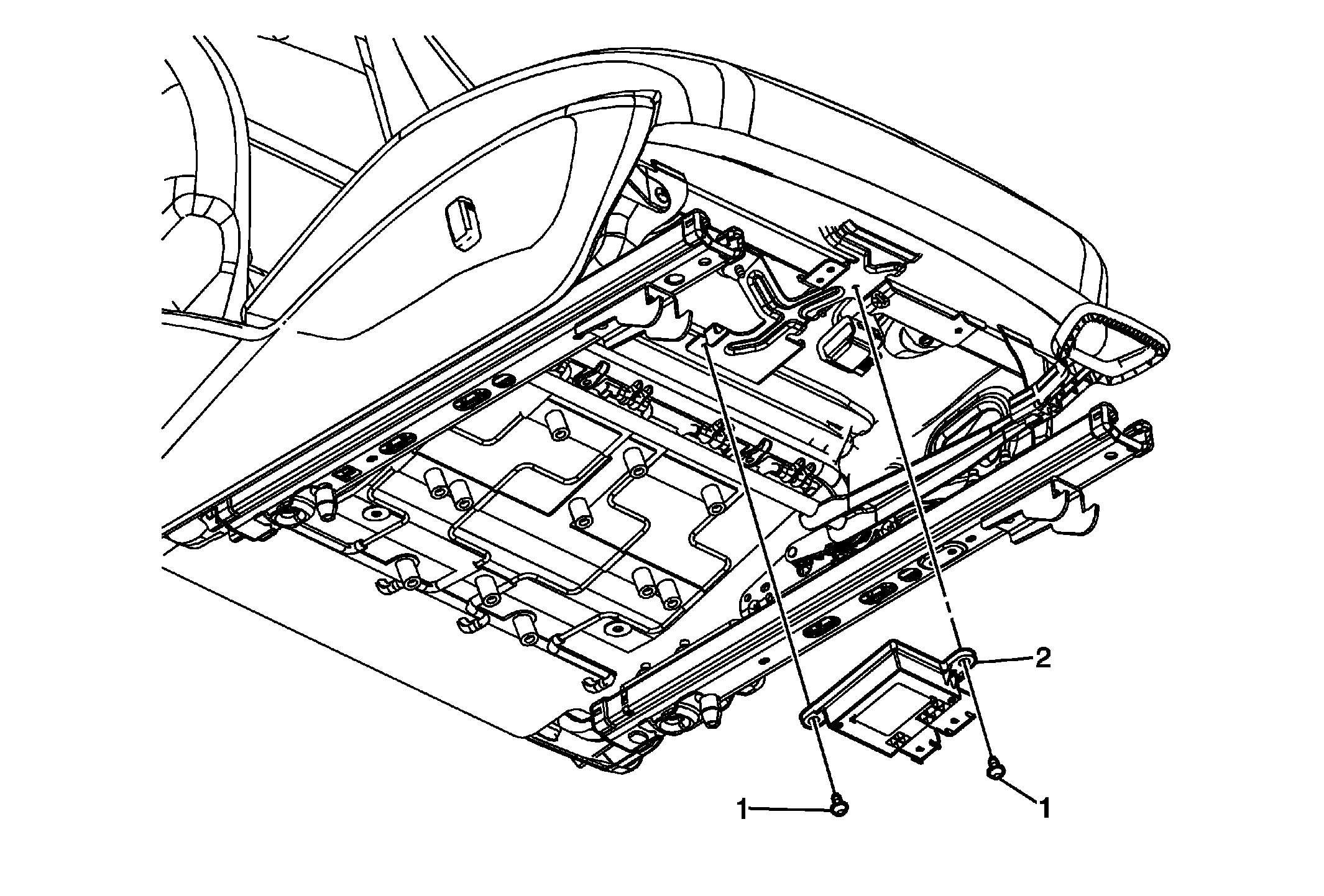

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to SIR Warning
. Procedure: Disable the SIR system. Refer to SIR Disabling and Enabling |
|
| 1 | Inflatable Restraint Passenger Presence Module Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 4 N.m (35 lb in) |
| 2 | Inflatable Restraint Passenger Presence Module Procedure: Refer to Control Module References for replacement and setup information. |
