Multimedia Player Interface Module Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

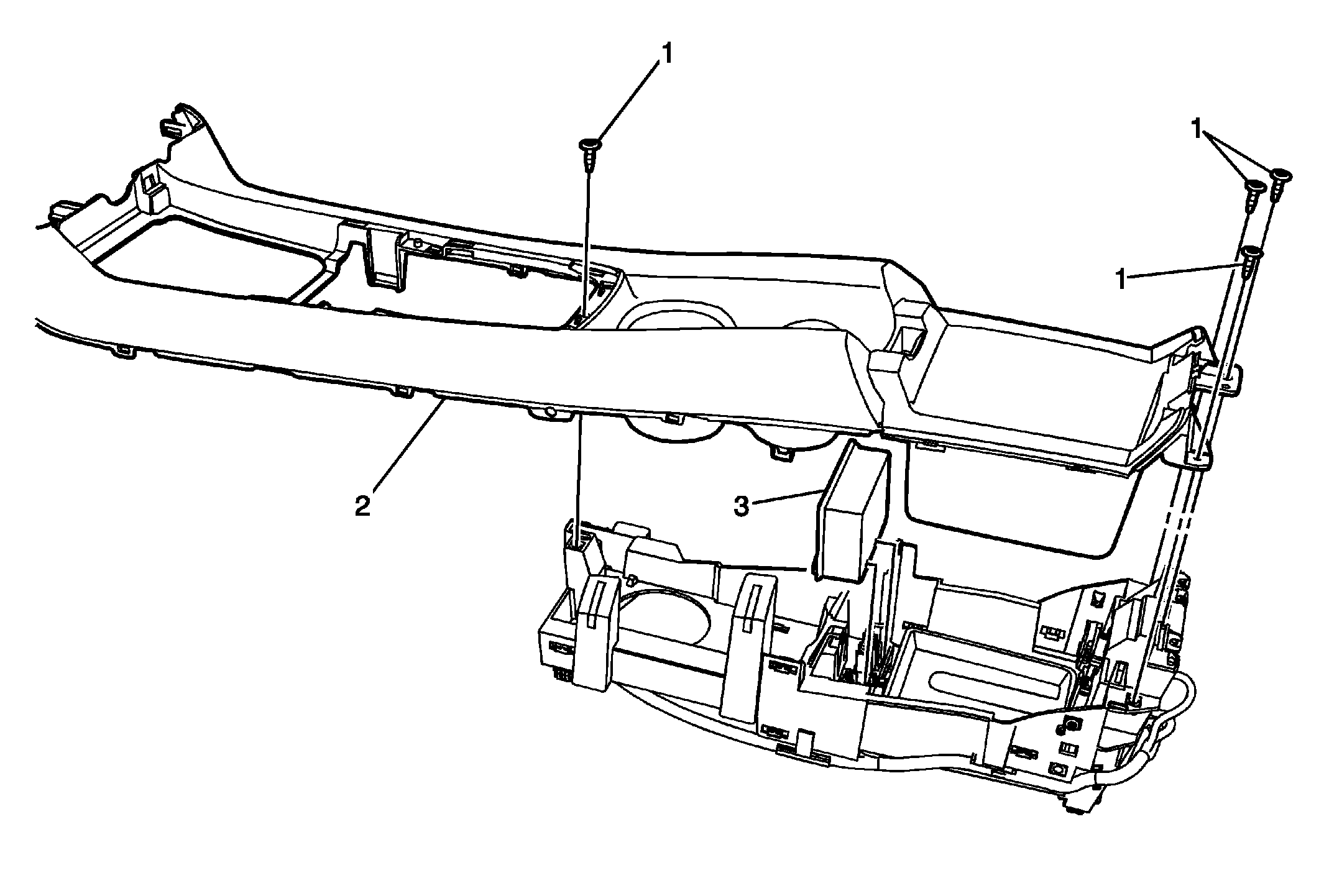

Fig 1: Multimedia Player Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console. Refer to Front Floor Console Replacement . Remove the front floor console armrest. Refer to Front Floor Console Armrest Replacement . Remove the console compartment power receptacle. Refer to Accessory Power Receptacle Replacement . Remove the USB receptacle. Refer to Audio Disc Player and USB Receptacle Replacement .
1	Front Floor Console Bolts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Front Floor Console Upper Trim
3	Multimedia Player Interface Module Procedure Slide the module upwards after disengaging retaining clips. Disconnect the electrical connectors.
