Radio Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

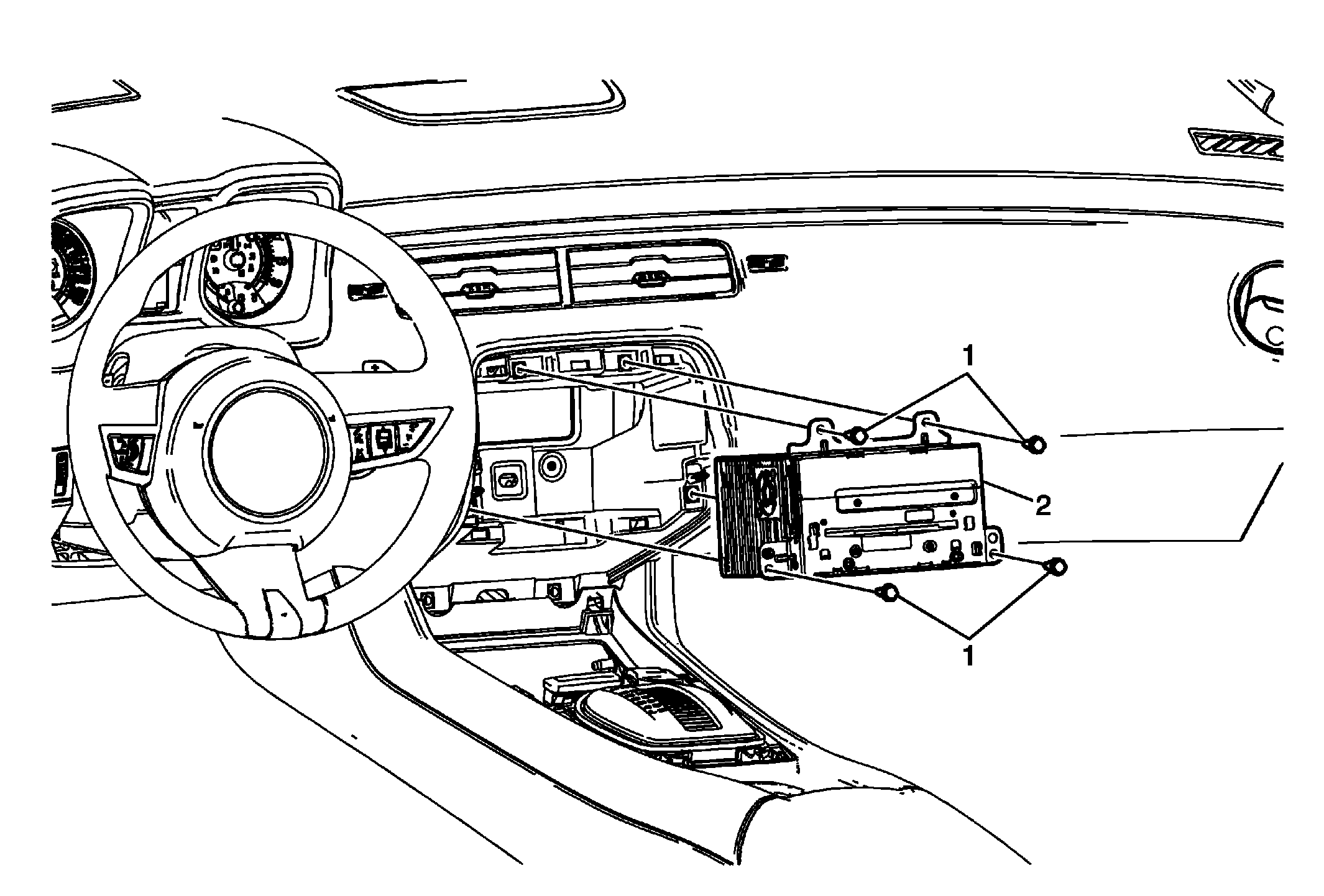

Fig 1: Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1	Radio Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Radio Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure:
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .

Radio Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Radio

Procedure

Disconnect the electrical connections.
Refer to Control Module References for programming and setup information.
