Garage Door Opener Transmitter Pushbutton Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

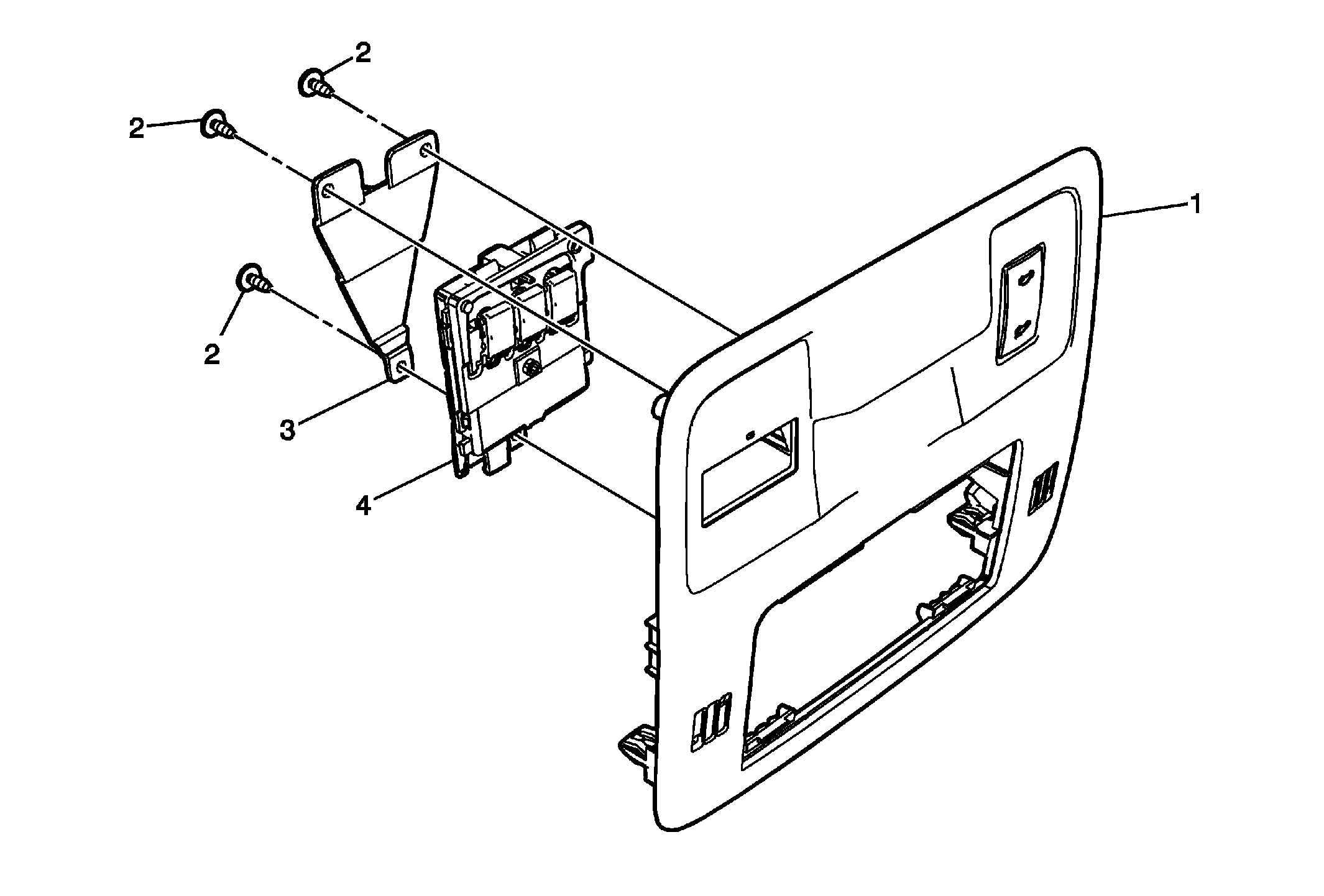

Fig 1: Garage Door Opener Transmitter Pushbutton

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Console Refer to Roof Console Replacement
2	Garage Door Opener Bolt/Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
3	Universal Garage Door Opener Support Bracket
4	Garage Door Opener Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set-up procedures.
