Rear Object Alarm Module Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

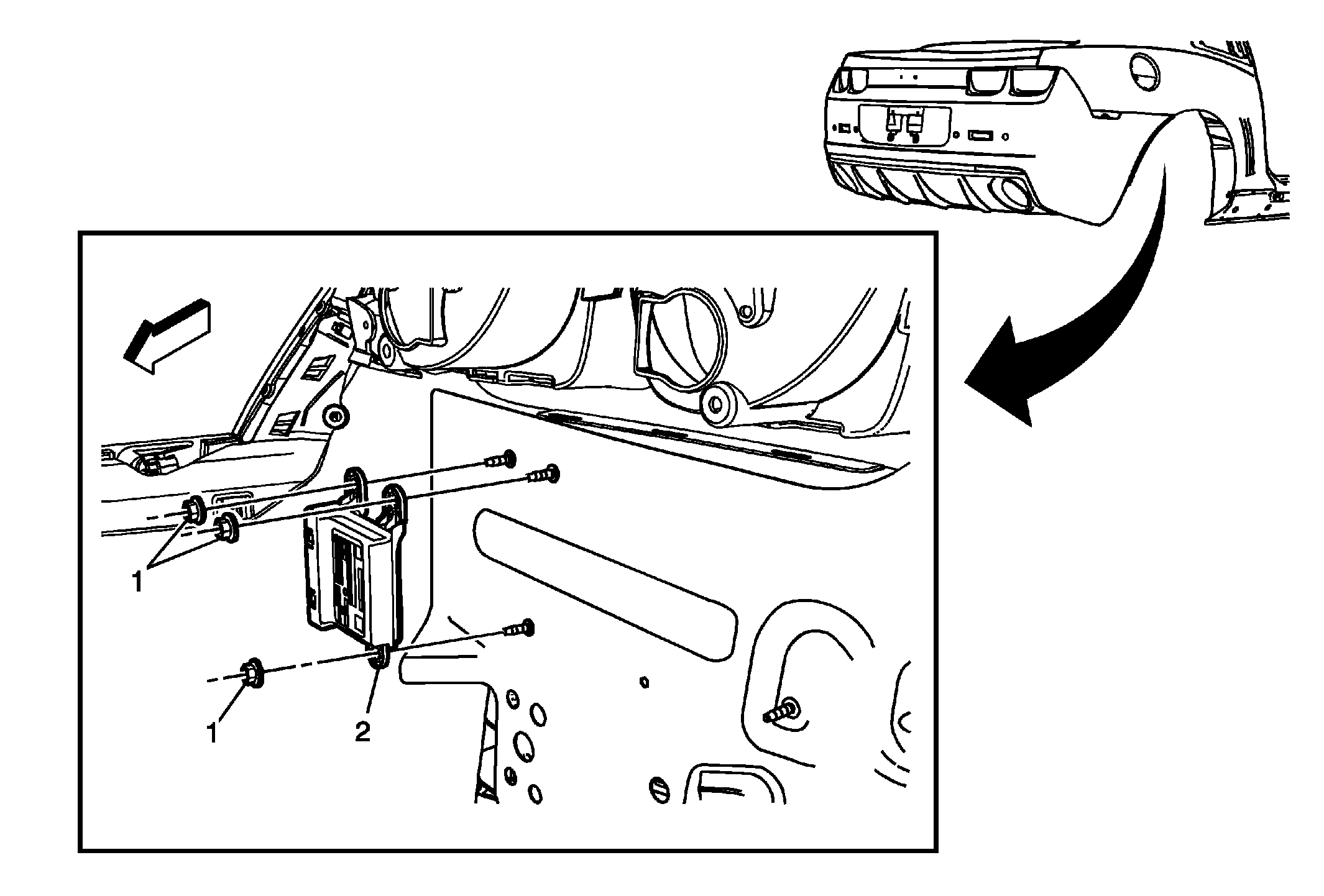

Fig 1: Rear Object Alarm Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear end trim panel. Refer to Rear End Trim Finish Panel Replacement .
1	Rear Object Alarm Module Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
2	Rear Object Alarm Module Procedure Disconnect electrical connector. Reprogram the rear object alarm module after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the rear end trim panel. Refer to Rear End Trim Finish Panel Replacement .

Rear Object Alarm Module Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 6 N.m (53 lb in)

Rear Object Alarm Module

Procedure

Disconnect electrical connector.
Reprogram the rear object alarm module after replacement. Refer to Control Module References .
