Exhaust Components
Exhaust Components
Component Name
Callout
B52C Heated Oxygen Sensor - Bank 1 Sensor 1
1
B52E Heated Oxygen Sensor - Bank 2 Sensor 1
2
B52F Heated Oxygen Sensor - Bank 2 Sensor 2
3
B52D Heated Oxygen Sensor - Bank 1 Sensor 2
4

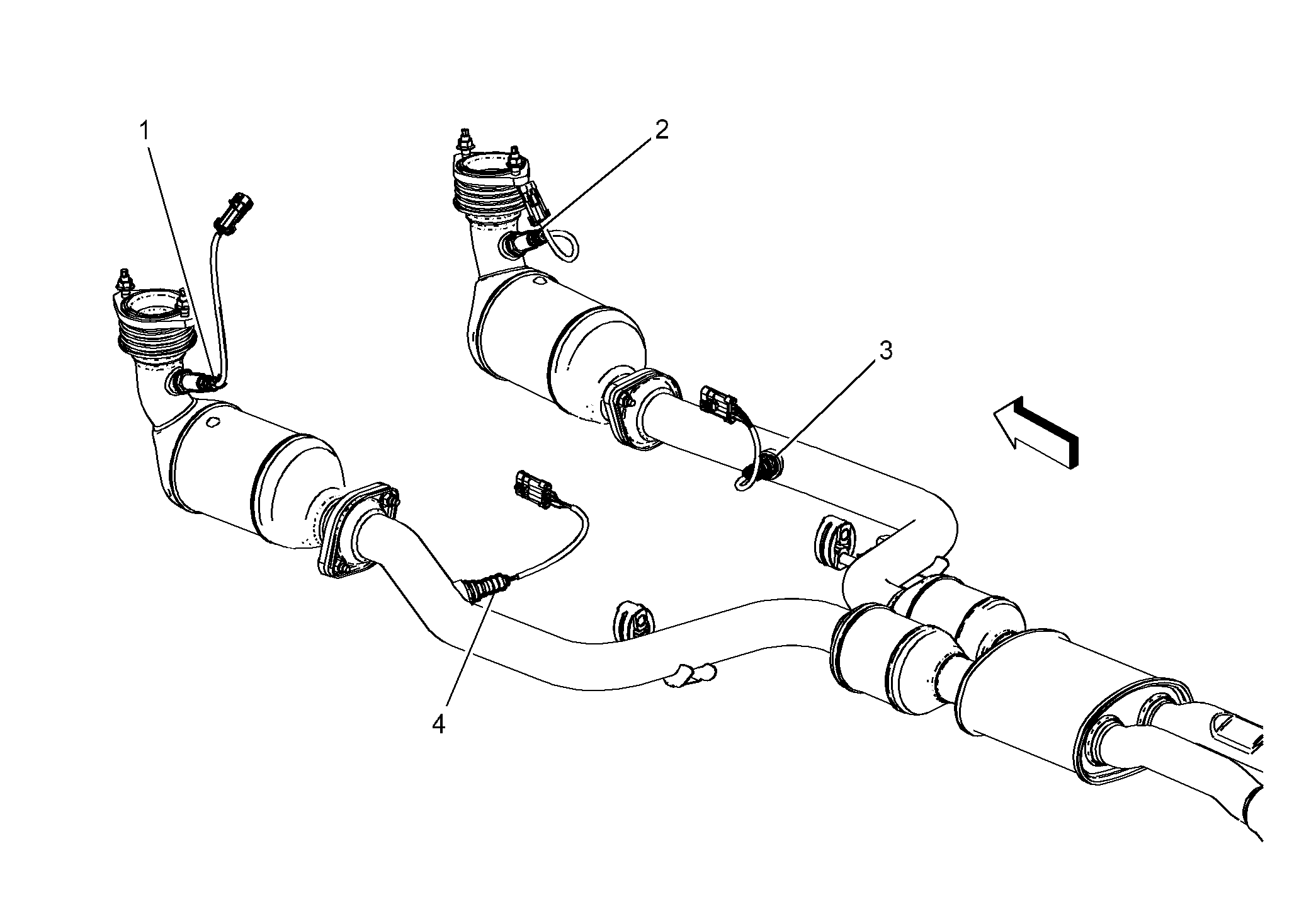

Fig 1: Exhaust Components
Courtesy of GENERAL MOTORS CORP.
