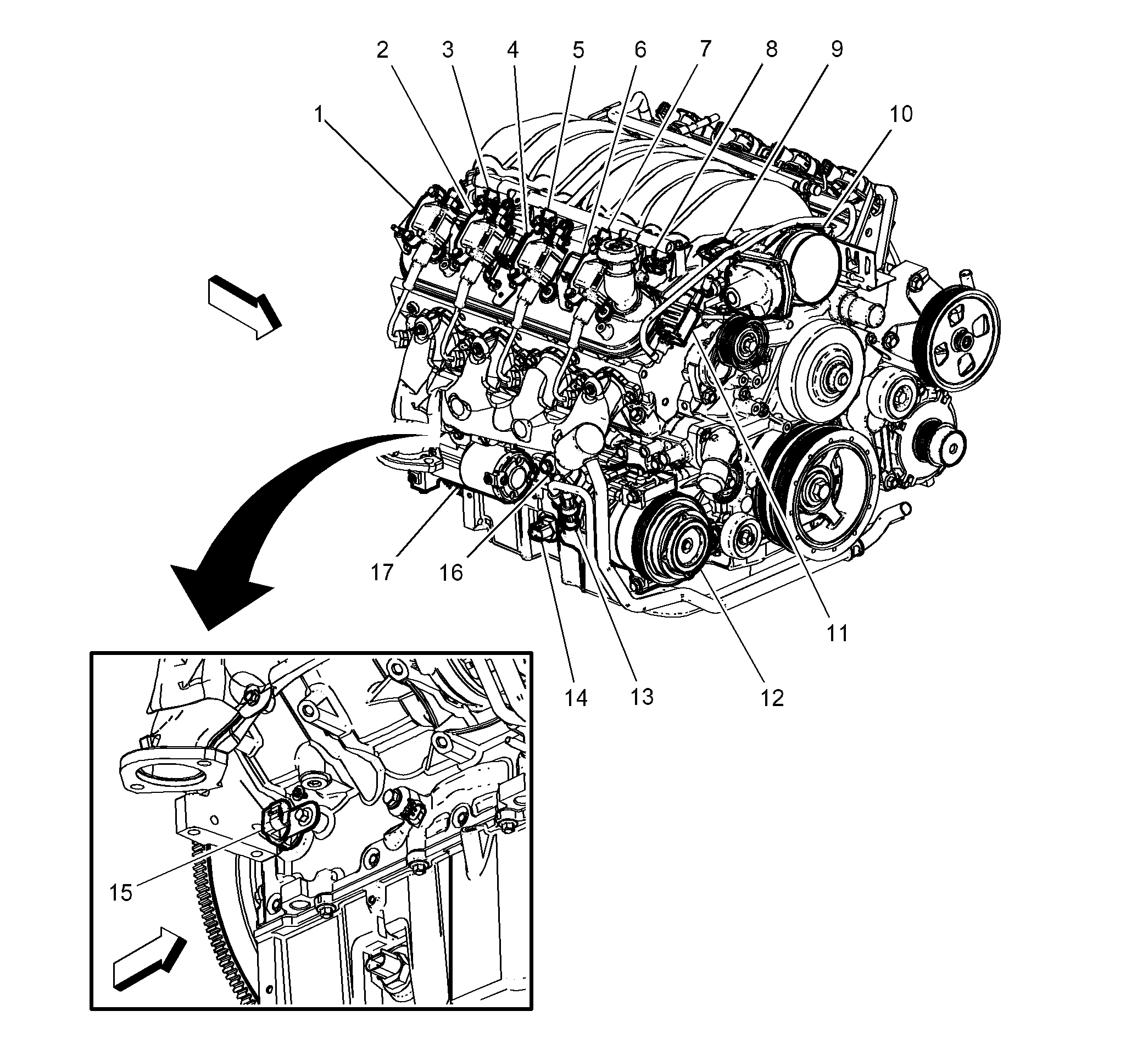

Right Front of the Engine Components
Right Front of the Engine Components
| Component Name | Callout |
|---|---|
| T8H Ignition Coil 8 | 1 |
| T8F Ignition Coil 6 | 2 |
| Q17H Fuel Injector 8 | 3 |
| T8D Ignition Coil 4 | 4 |
| Q17F Fuel Injector 6 | 5 |
| T8B Ignition Coil 2 | 6 |
| Q17D Fuel Injector 4 | 7 |
| Q17B Fuel Injector 2 | 8 |
| B74 Manifold Absolute Pressure Sensor | 9 |
| Q38 Throttle Body | 10 |
| Q12 Evaporative Emission Purge Solenoid Valve | 11 |
| G1 A/C Compressor | 12 |
| B1 A/C Refrigerant Pressure Sensor | 13 |
| B35C Engine Oil Level and Temperature Sensor | 14 |
| B26 Crankshaft Position Sensor | 15 |
| B68B Knock Sensor 2 | 16 |
| M64 Starter Motor | 17 |
