Front Seat Belt Buckle Replacement

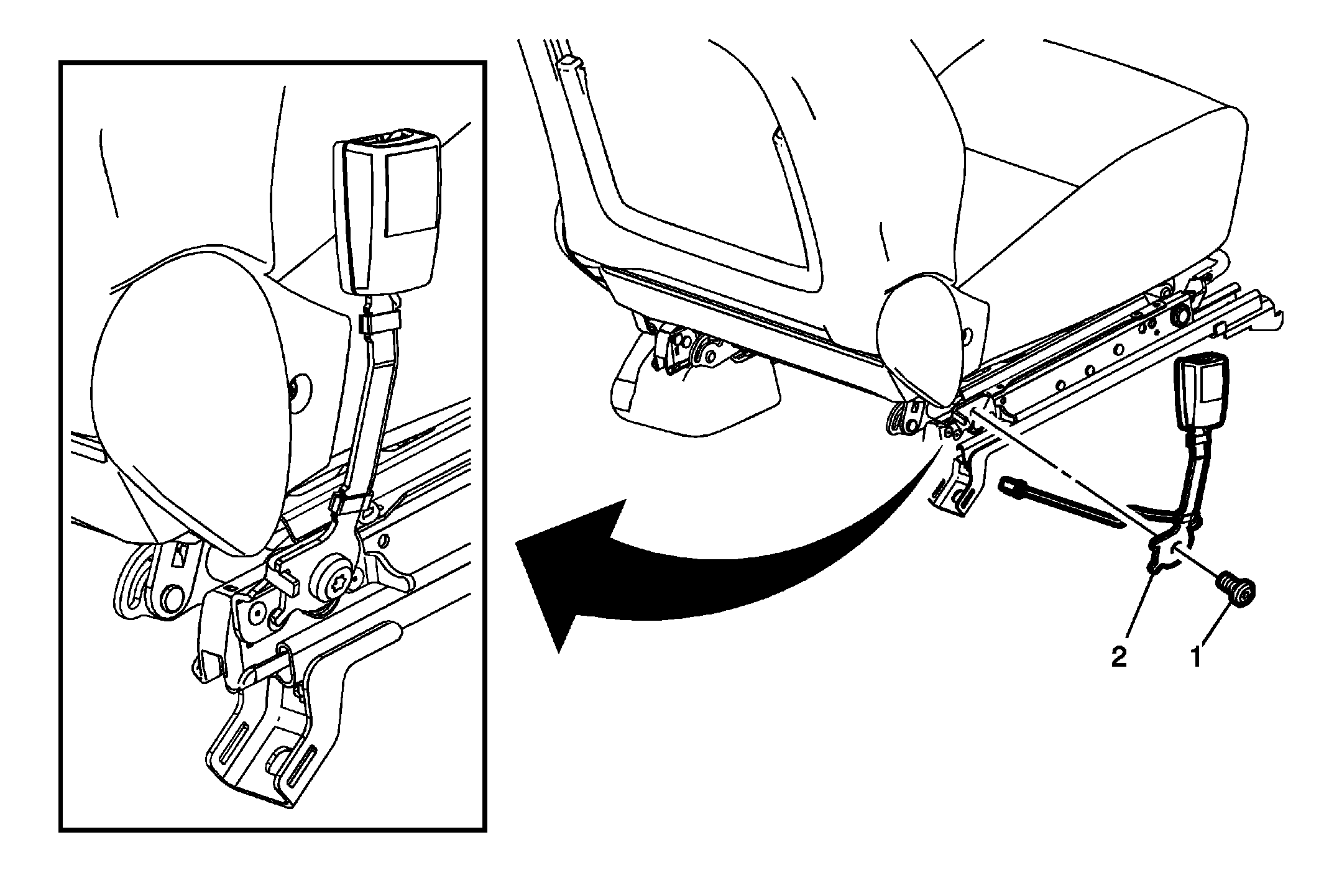

Fig 1: Front Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Driver or Passenger Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Driver or Passenger Seat Belt Buckle Assembly Procedure Disconnect the electrical connector, if equipped.
