Power Steering Pump Pulley Replacement
Courtesy of GENERAL MOTORS CORP. Power Steering Pump Pulley Replacement
| Callout |
Component Name |
Preliminary Procedure
Remove the power steering pump. Refer to Power Steering Pump Replacement (V8) . |
| 1 |

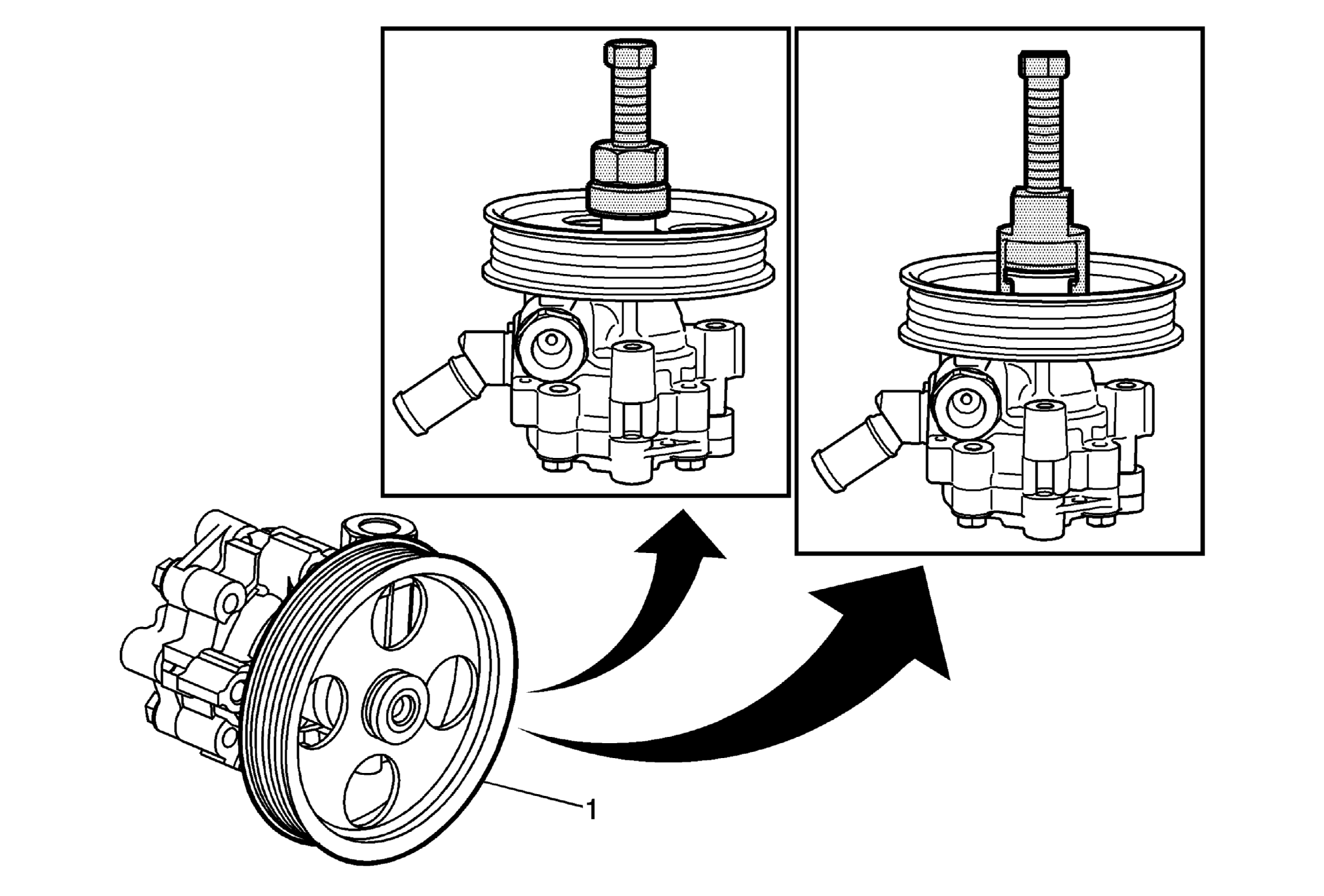

Power Steering Pump Pulley Procedure
- Use the CH-25034-C
removerin order to remove the power steering pump pulley.
- Use the CH-25033-C
installerin order to install the power steering pump pulley.
Ensure the power steering pump pulley is flush with the power steering pump shaft and is aligned with the other pulleys.
Special Tools
- CH-25033-C
Pulley Installer
- CH-25034-C
Pulley Remover
For equivalent regional tools, refer to Special Tools . |
