Removal Procedure

  1. Remove the floor shift control knob. Refer to Transmission Control Lever Knob Replacement .
  2. Remove the centre console trim plate. Refer to Console Trim Plate Replacement (9C3) .
  3. Using the manual override lever, shift the selector lever to the drive (D) position.
    4. Fig 1: Identifying Selector Lever Housing
    GM1954236Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the selector lever housing (2) from the base (1) by depressing the four retaining tabs (3).
  5. Lift the shift lever housing assembly (2) from the base (1).
  6. Remove the insulator (4) from the base (1).

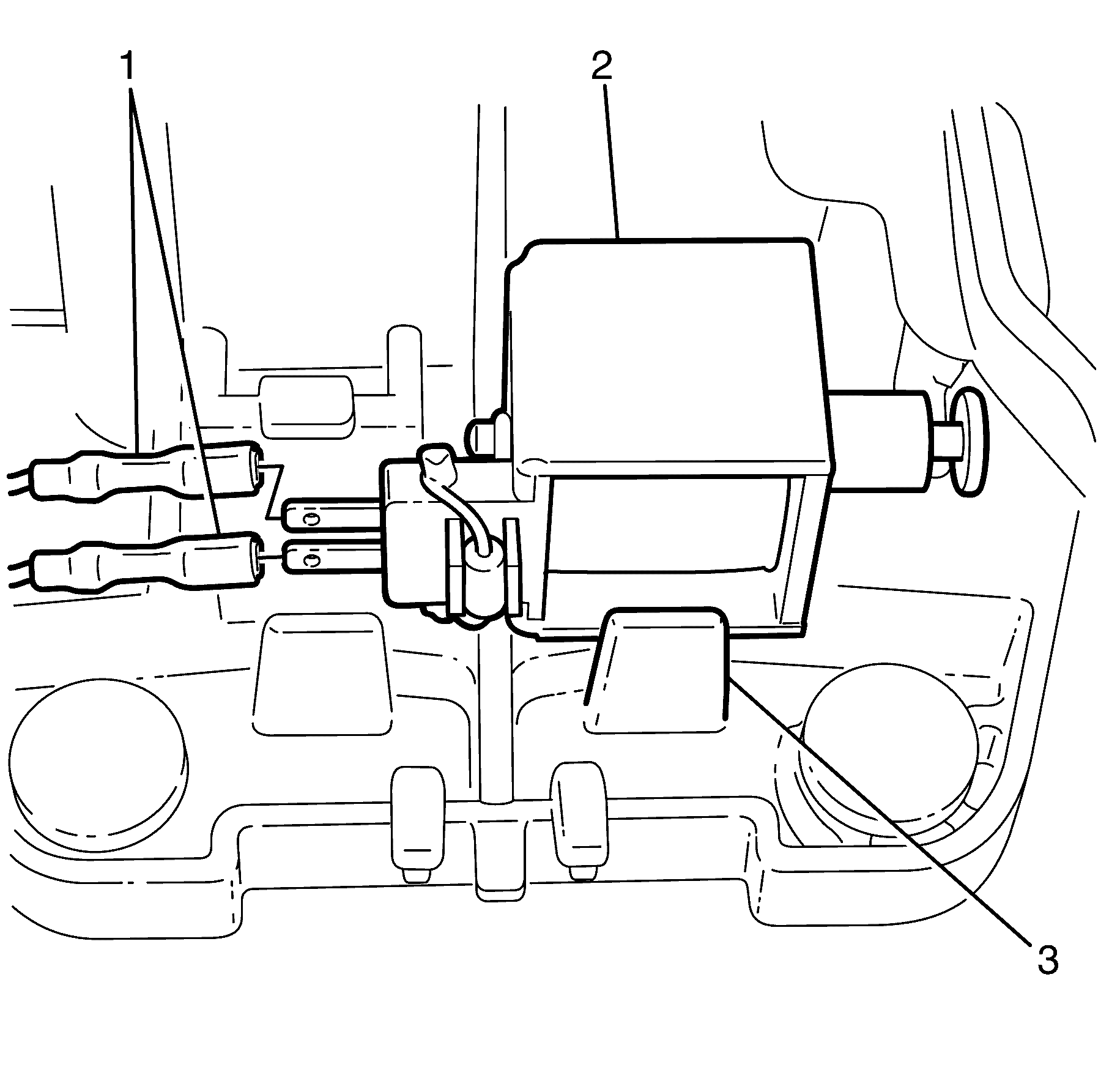

    7. Fig 2: Locating Solenoid Wiring Harness Connector
    GM1954238Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the solenoid wiring harness connector (1) from the shift lock solenoid (2).
  8. Disengage the solenoid retainer clip (3).
  9. Remove the solenoid (2).
    10. Fig 3: Identifying Park Lock Micro Switch
    GM1954239Courtesy of GENERAL MOTORS CORP.
    NOTE:

    After the solenoid is removed the BTSI lever can be turned allowing access to the micro switch retaining screw (2).

  10. If necessary, remove the park lock micro switch retaining screw (2).
    11. NOTE:

    Note the position of the micro switch wiring harness routing for re-assembly. The switches are incorporated into the wiring harness and cannot be serviced separately.

  11. Remove the micro switch (1) and wiring harness from the floor shift control base plate.
