Left Side of Engine Components

Powertrain Component Views

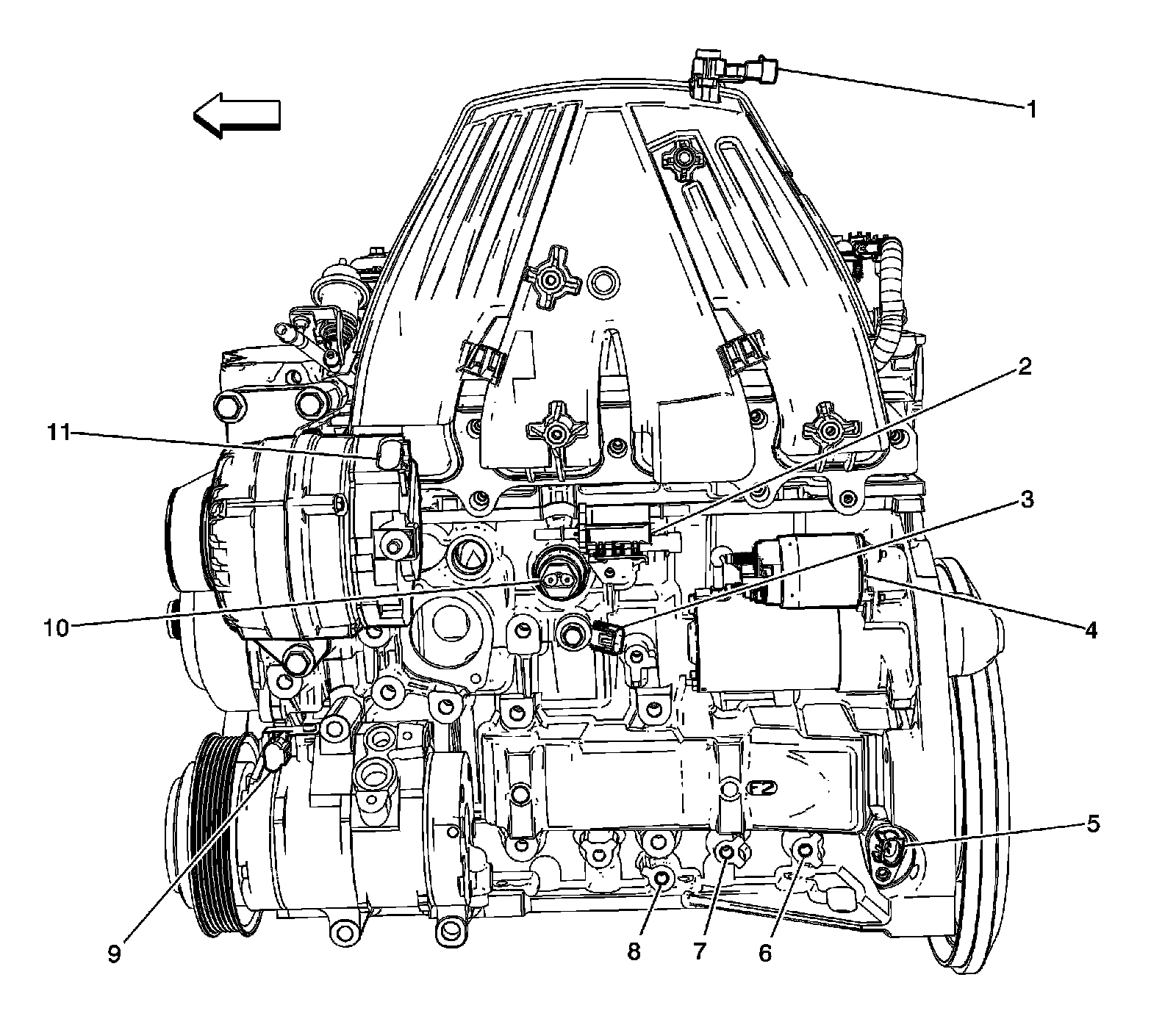

Left Side of the Engine Components (LLV)




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 - Knock Sensor (KS)
4 - Starter Motor
5 - Crankshaft Position (CKP) Sensor
6 - G102
7 - G103
8 - G101
9 - A/C Compressor Clutch (C60)
10 - Engine Block Heater (K05)
11 - Generator
