Body Harness Routing 1 of 3 (Extended Cab)

Harness Routing Views

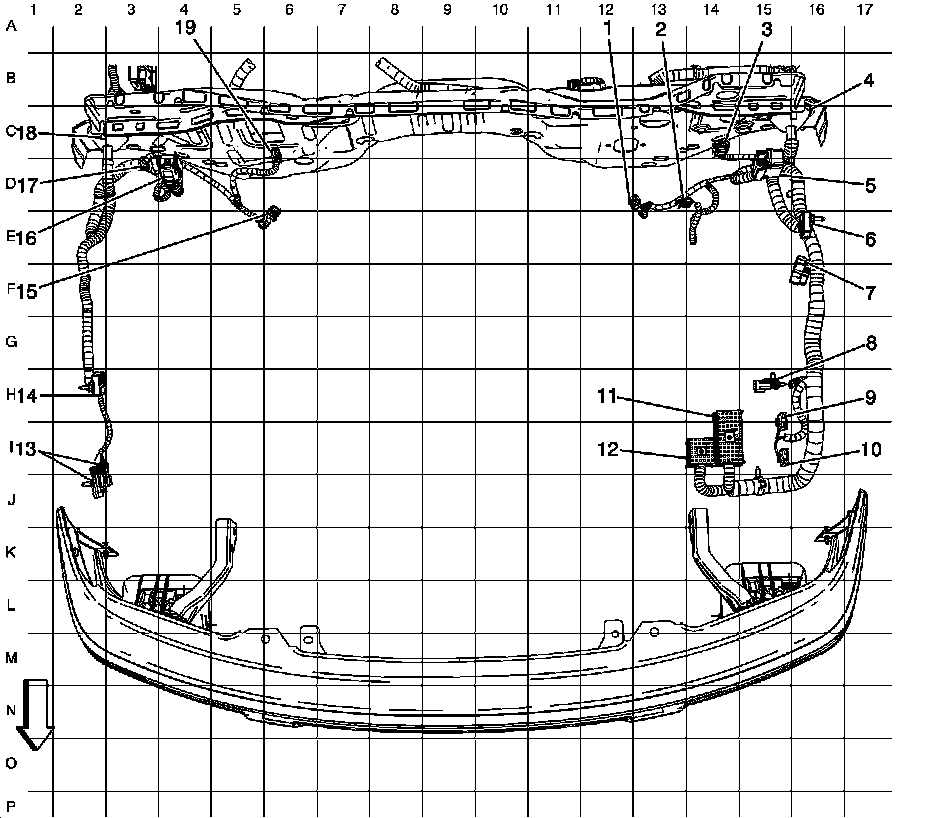

Body Harness Routing 1 of 3 (Extended Cab)




1 - Wheel Speed Sensor (WSS) - Left Front
2 - Brake Fluid Level Switch
3 - Windshield Wiper Motor
4 - Pass-through Grommet
5 - Electronic Brake Control Module (EBCM)
6 - G105
7 - X102
8 - X105 (NP1)
9 - Fuse Block - Underhood X4
10 - Fuse Block - Underhood X5
11 - Fuse Block - Underhood X7
12 - Fuse Block - Underhood X6
13 - X104 and X103
14 - G106
15 - Wheel Speed Sensor (WSS) - Right Front
16 - Powertrain Control Module (PCM) X1
17 - Windshield Washer Fluid Pump
18 - Pass-through Grommet
19 - A/C Refrigerant Pressure Sensor (C60)
