Engine Harness Routing 1 of 2

Harness Routing Views

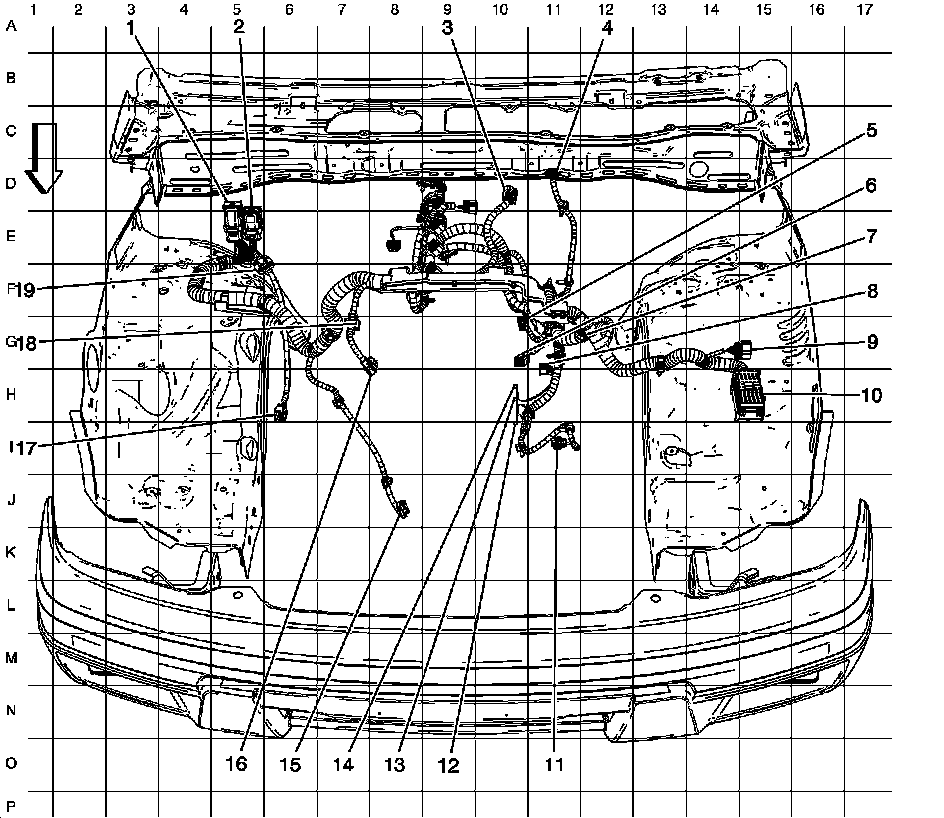

Engine Harness Routing 1 of 2 (LLV)




1 - Engine Control Module (ECM) X2
2 - Engine Control Module (ECM) X3
3 - Throttle Body Connector
4 - Manifold Absolute Pressure (MAP) Sensor Connector
5 - Evaporative Emission (EVAP) Canister Purge Solenoid Connector
6 - Knock Sensor (KS) Connector
7 - Generator Connector
8 - Crankshaft Position (CKP) Sensor Connector
9 - X105 (NP1)
10 - Fuse Block - Underhood X2
11 - A/C Compressor Clutch Connector
12 - G101
13 - G103
14 - G102
15 - Engine Oil Pressure (EOP) Sensor Connector
16 - Camshaft Position (CMP) Sensor Connector
17 - X100 (NP1)
18 - Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust Connector
19 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Connector
