Charging System Control Module: Service and Repair

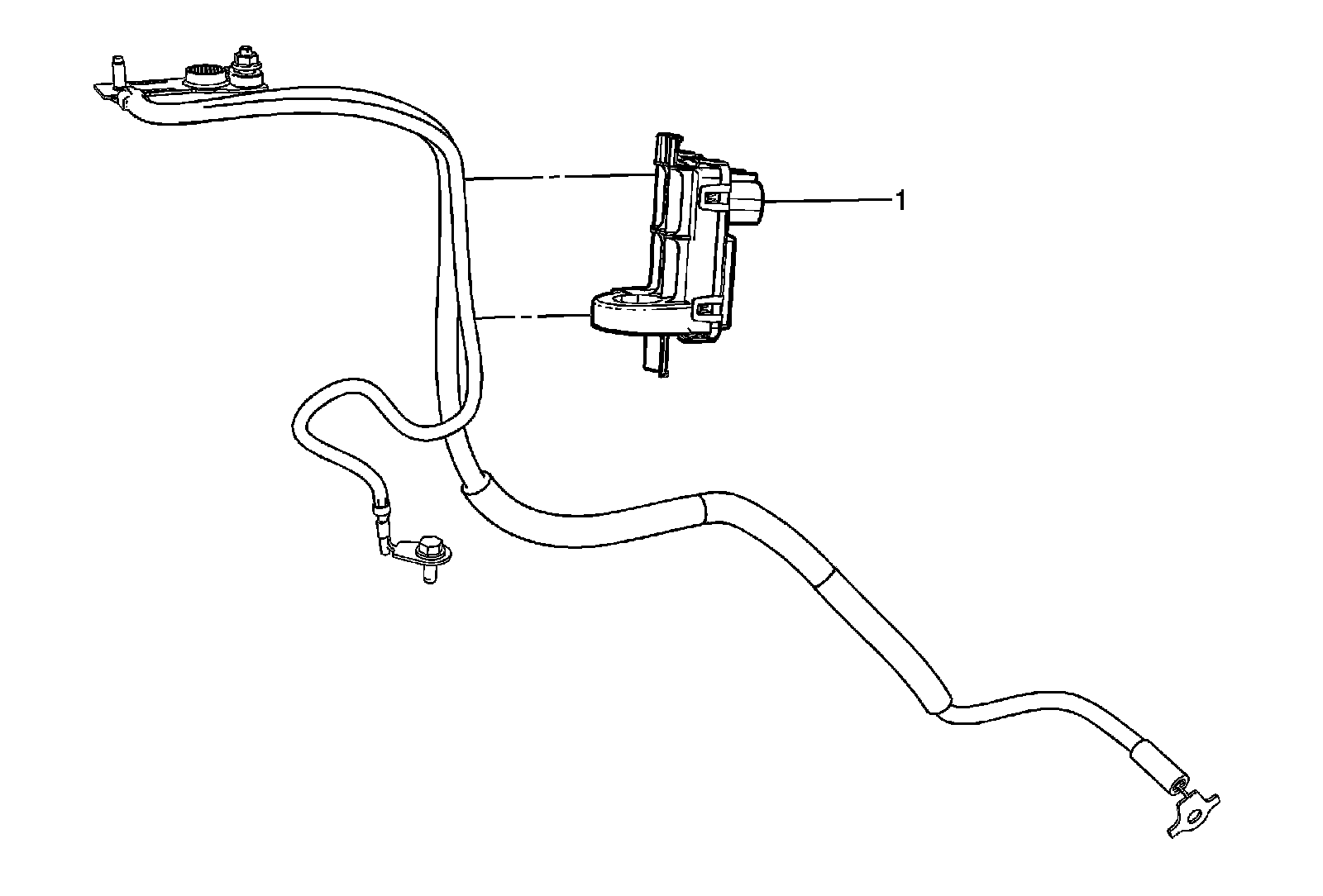

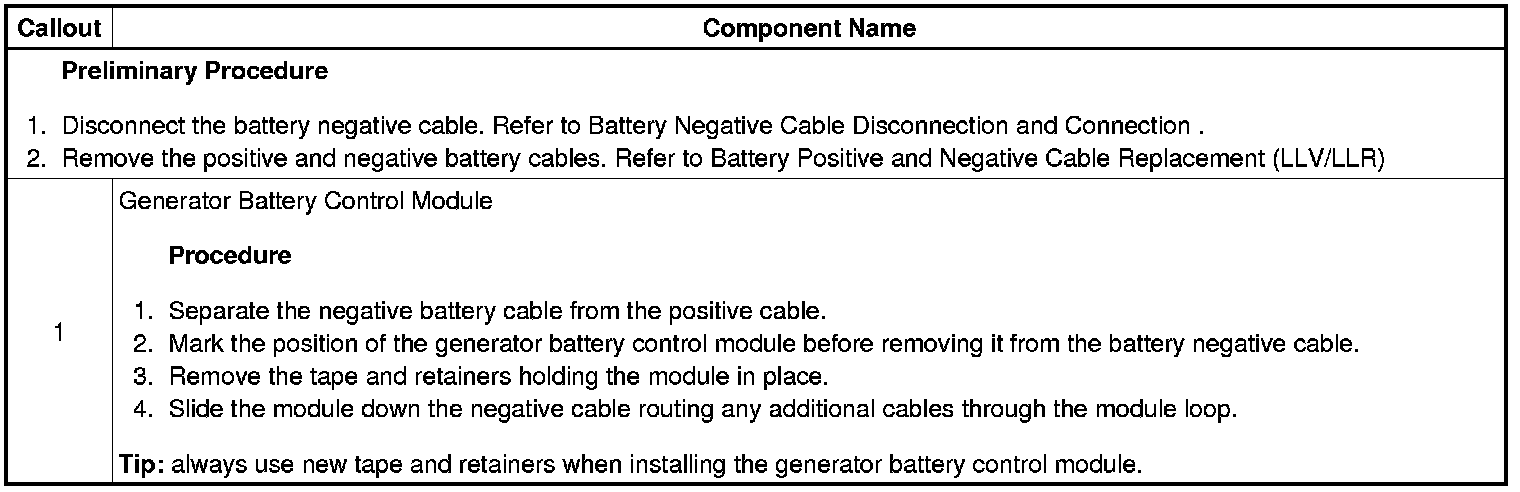

Generator Battery Control Module Replacement (4 and 5 Cylinder)
