Cabin Temperature Sensor / Switch




Component Connector End Views

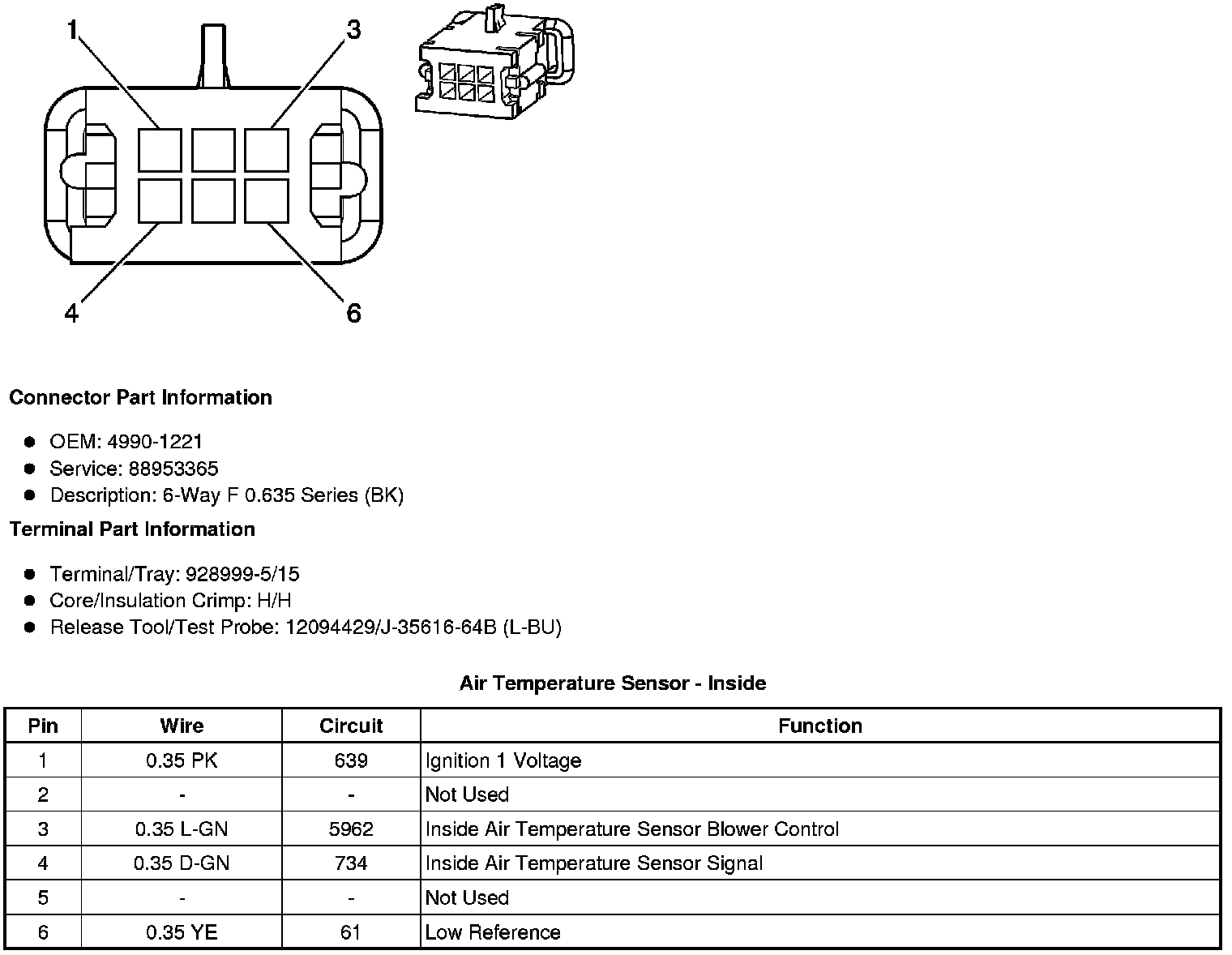

Air Temperature Sensor - Inside





Air Temperature Sensor - Lower Left

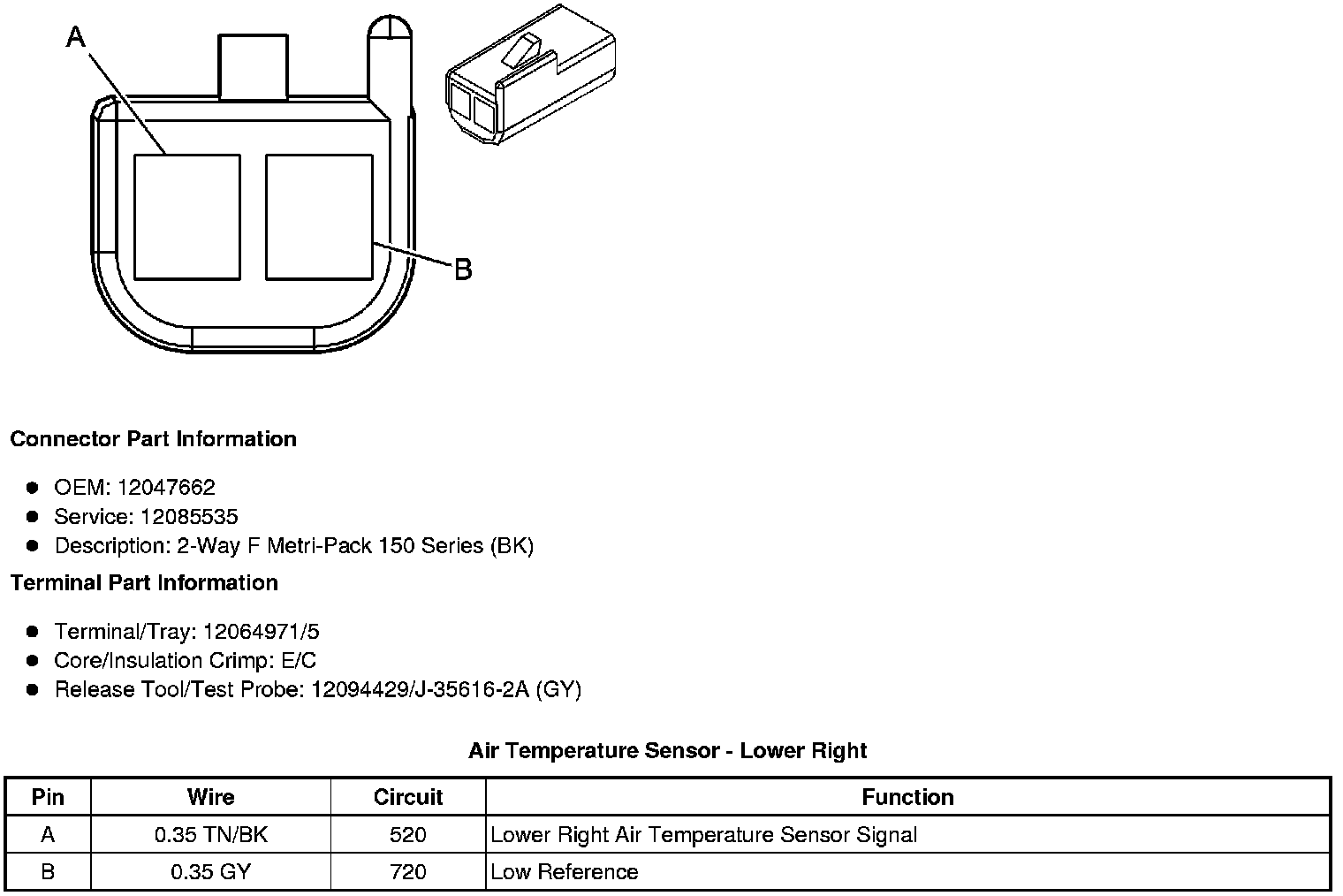

Air Temperature Sensor - Lower Right

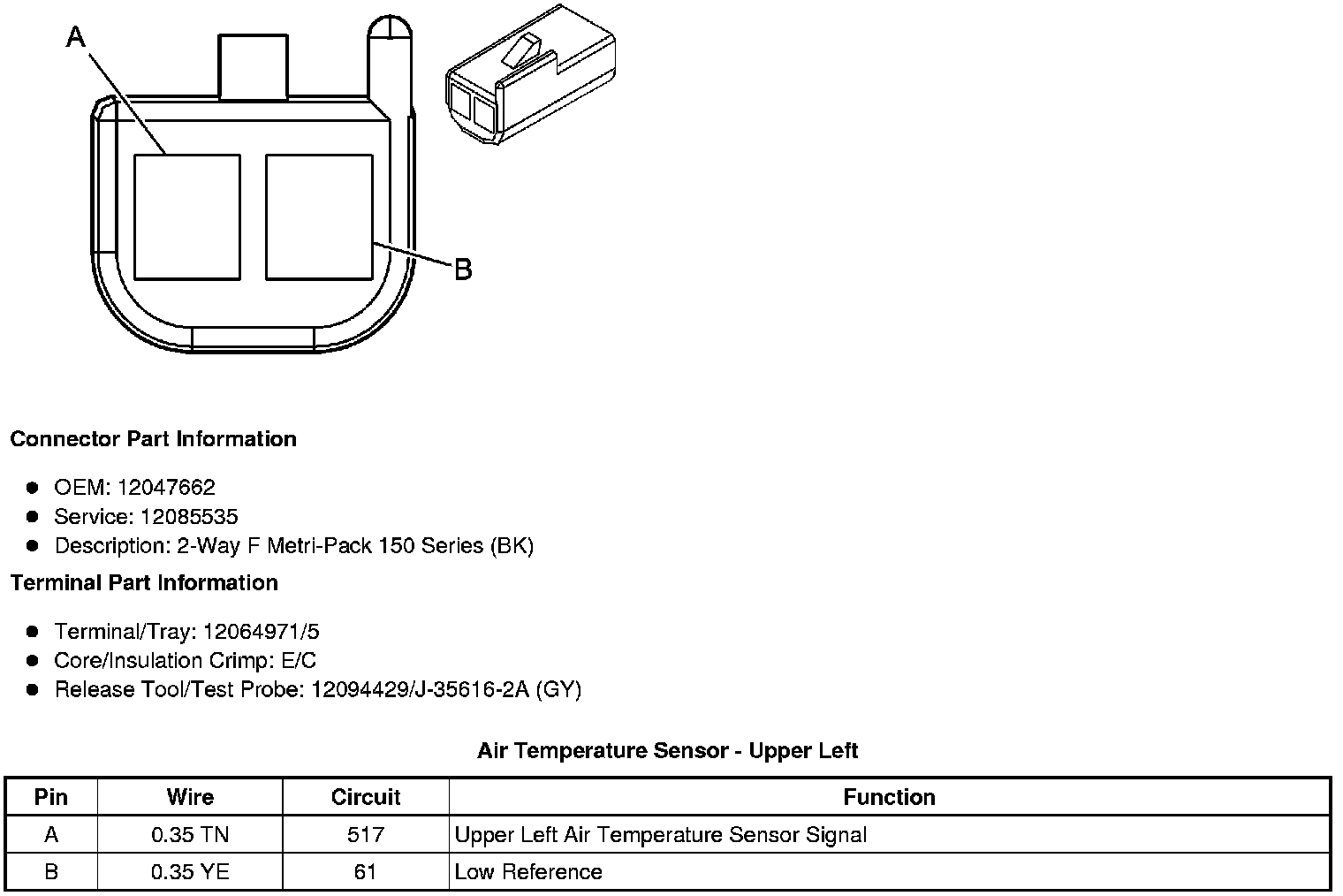

Air Temperature Sensor - Upper Left

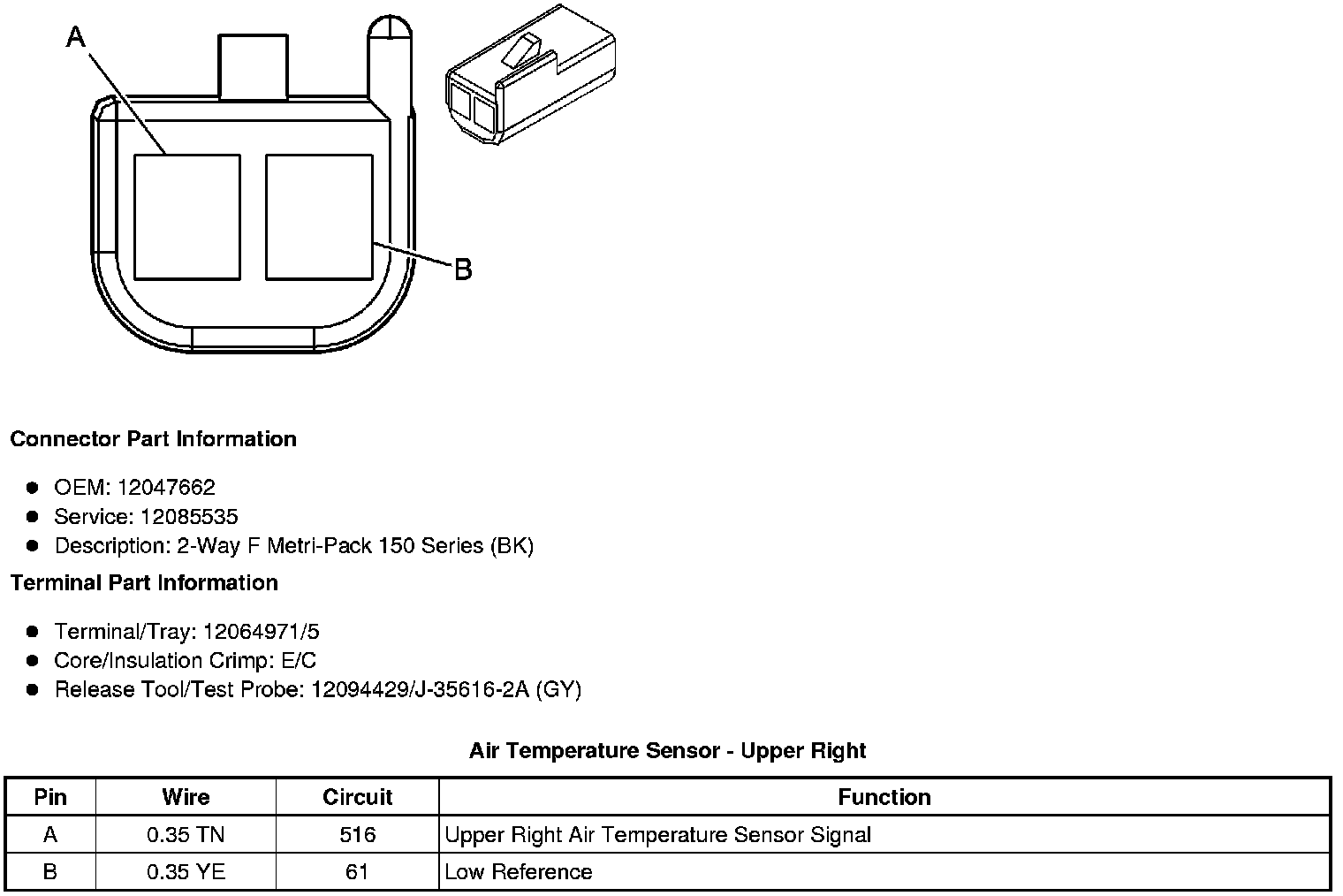

Air Temperature Sensor - Upper Right
