Ride Height Sensor, Suspension Control




Component Connector End Views

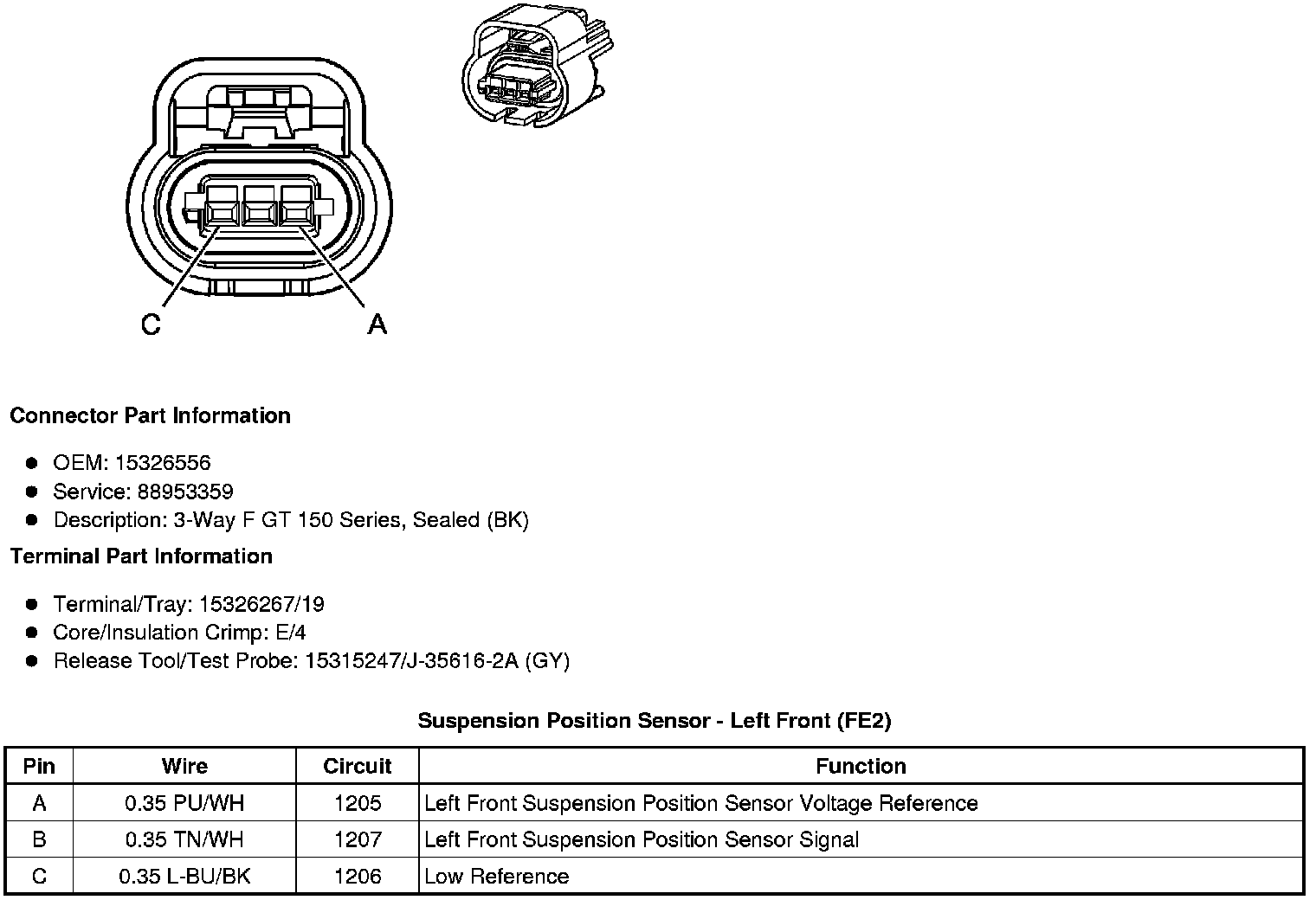

Suspension Position Sensor - Left Front (FE2)

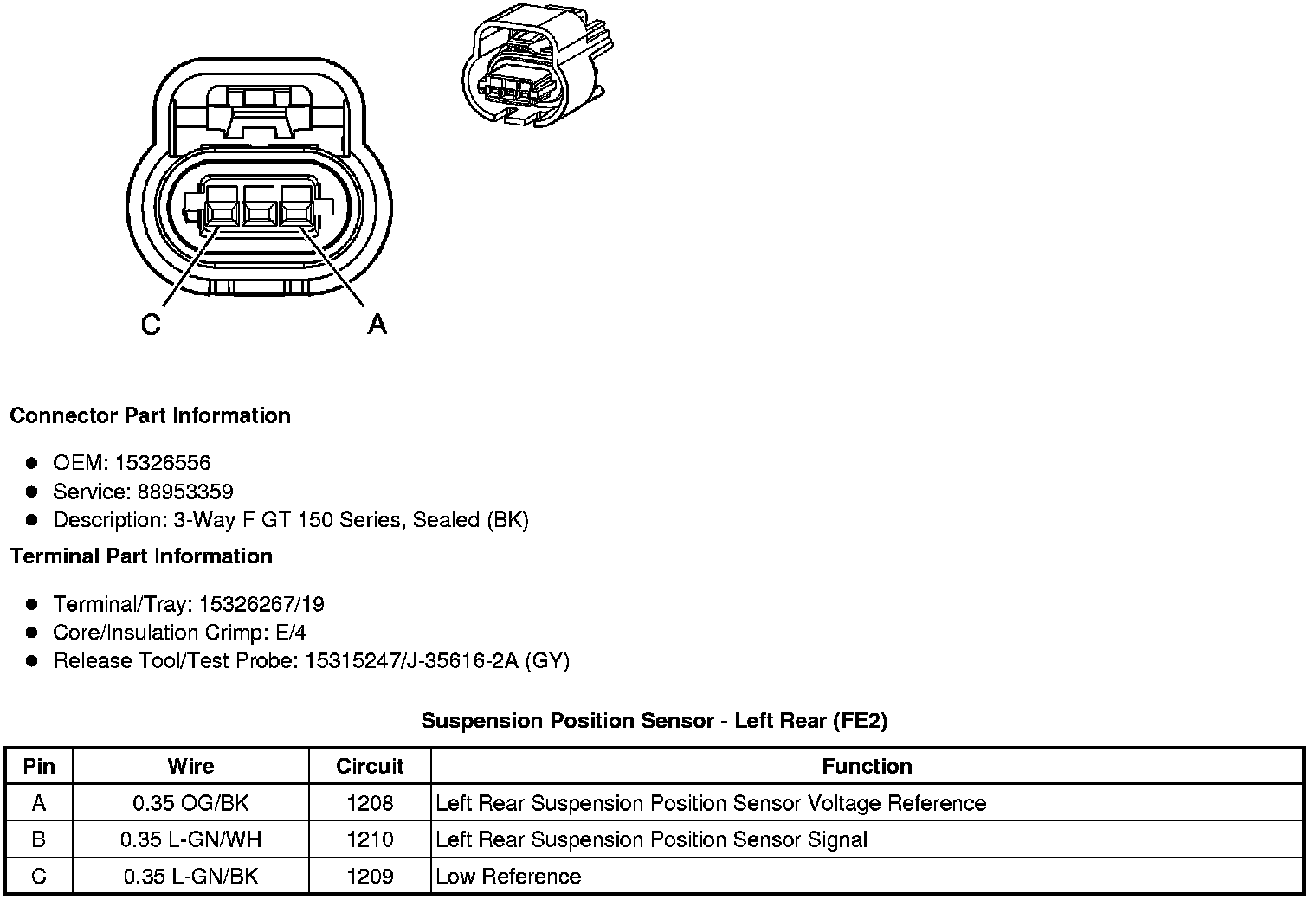

Suspension Position Sensor - Left Rear (FE2)





Suspension Position Sensor - Right Front (FE2)

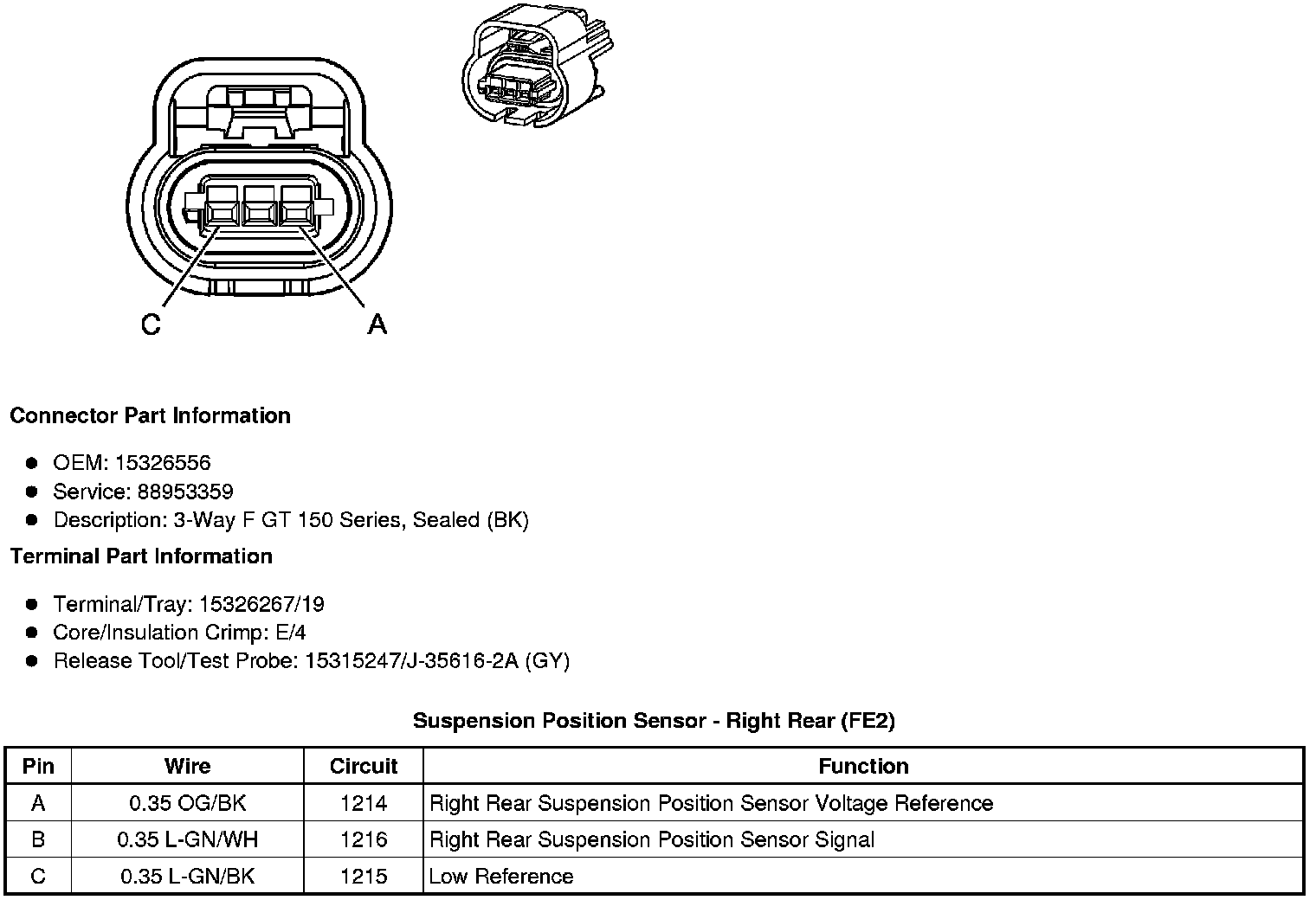

Suspension Position Sensor - Right Rear (FE2)
