Steering Mounted Controls Transmitter




Component Connector End Views

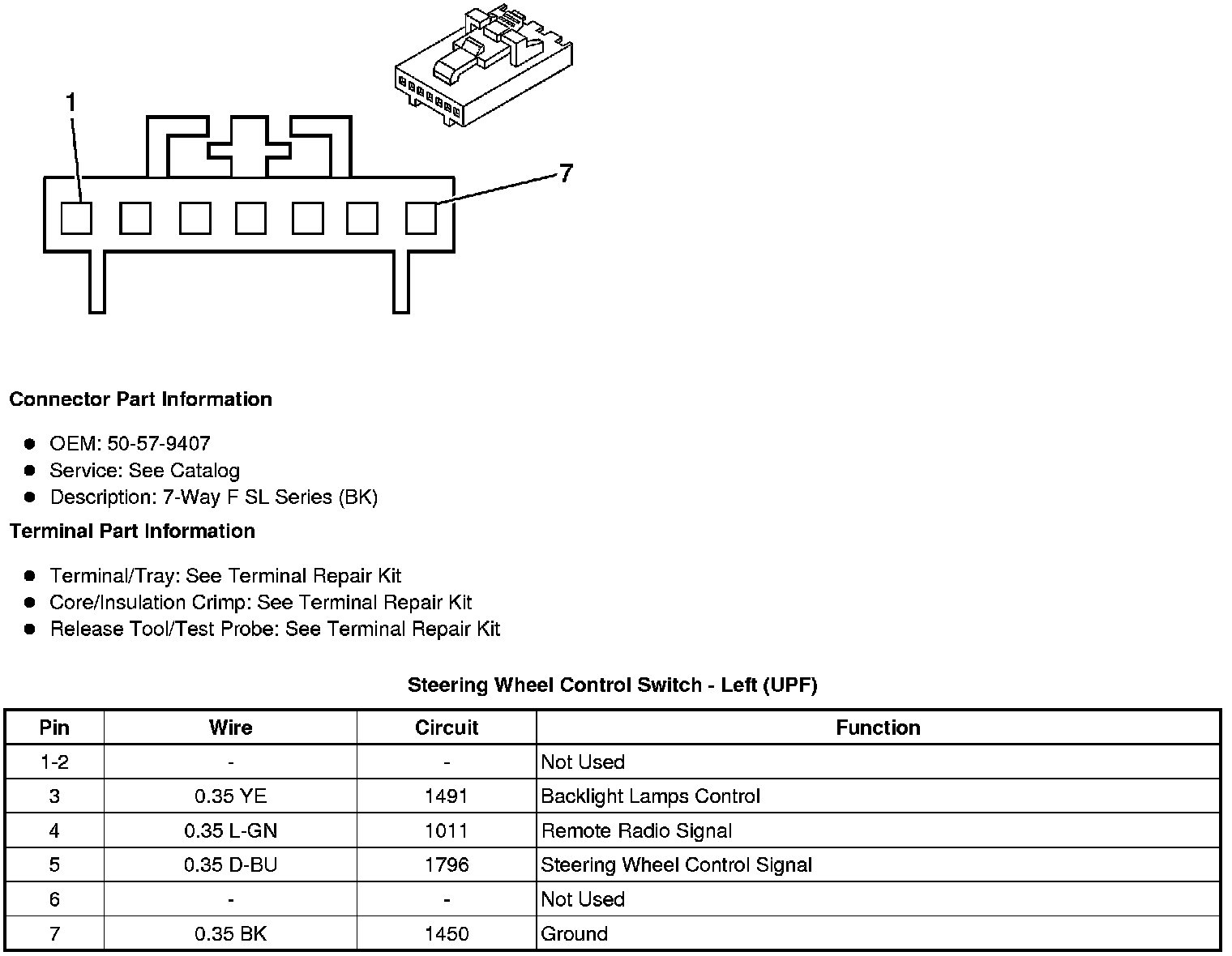

Steering Wheel Control Switch - Left (UPF)

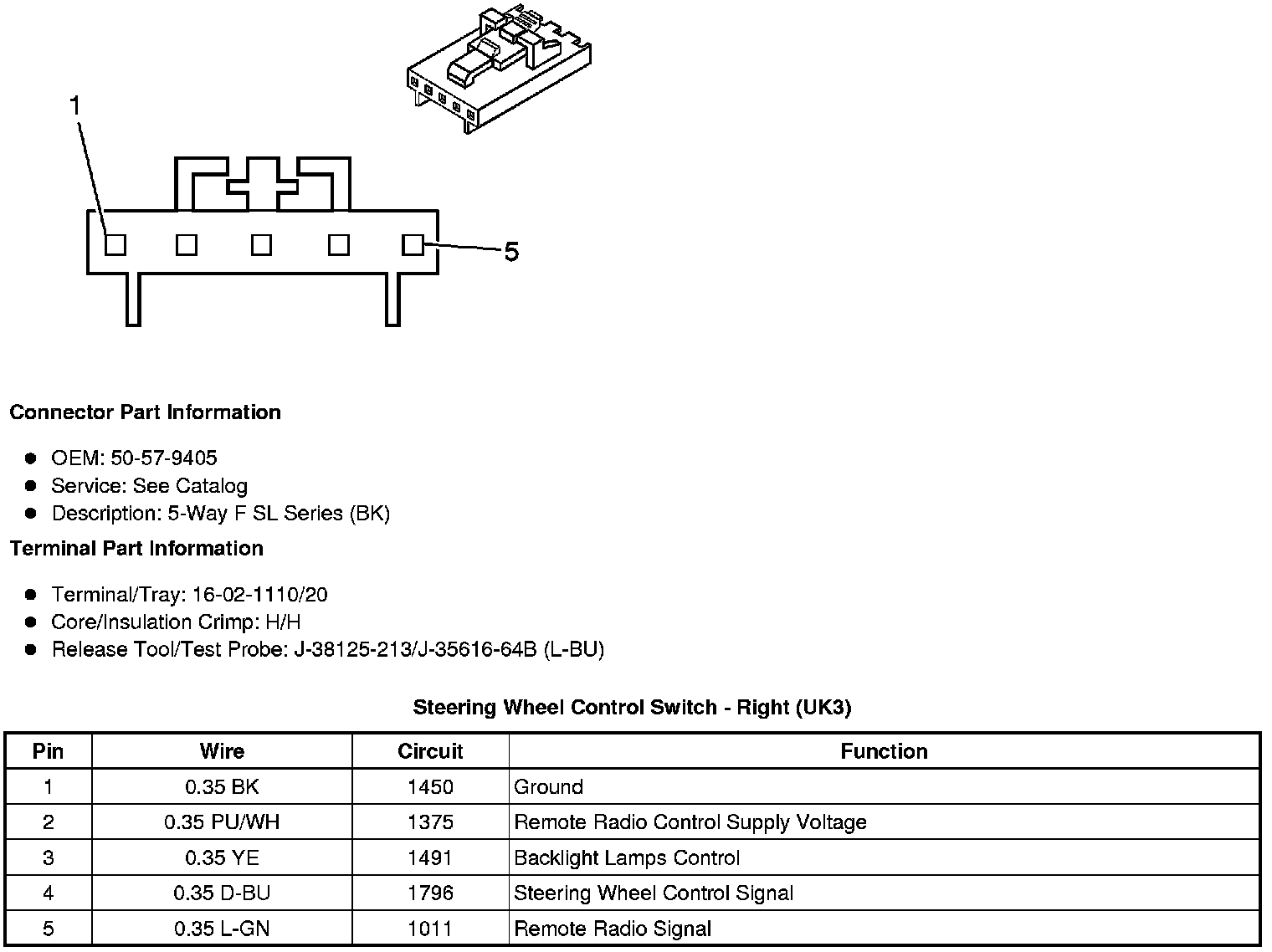

Steering Wheel Control Switch - Right (UK3)
