Wiper and Washer Components

Front of Vehicle/Engine Compartment Component Views

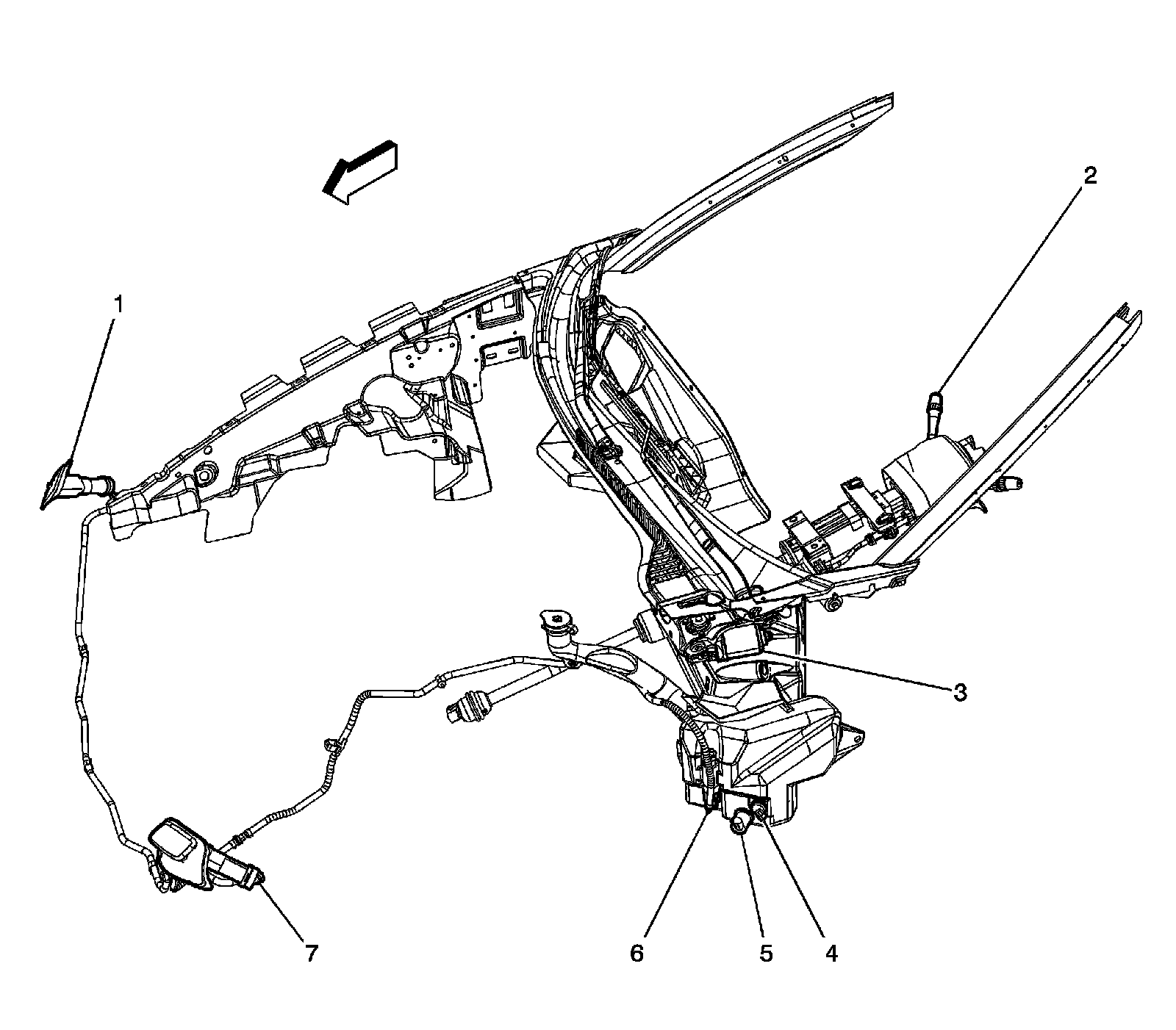

Wiper/Washer Components




1 - Heated Washer Nozzle - Left (CE4)
2 - Windshield Wiper/Washer Switch
3 - Windshield Wiper Motor
4 - Windshield Washer Fluid Level Switch
5 - Windshield Washer Fluid Pump
6 - Headlamp Washer Fluid Pump (CE4)
7 - Heated Washer Nozzle - Right (CE4)
